133

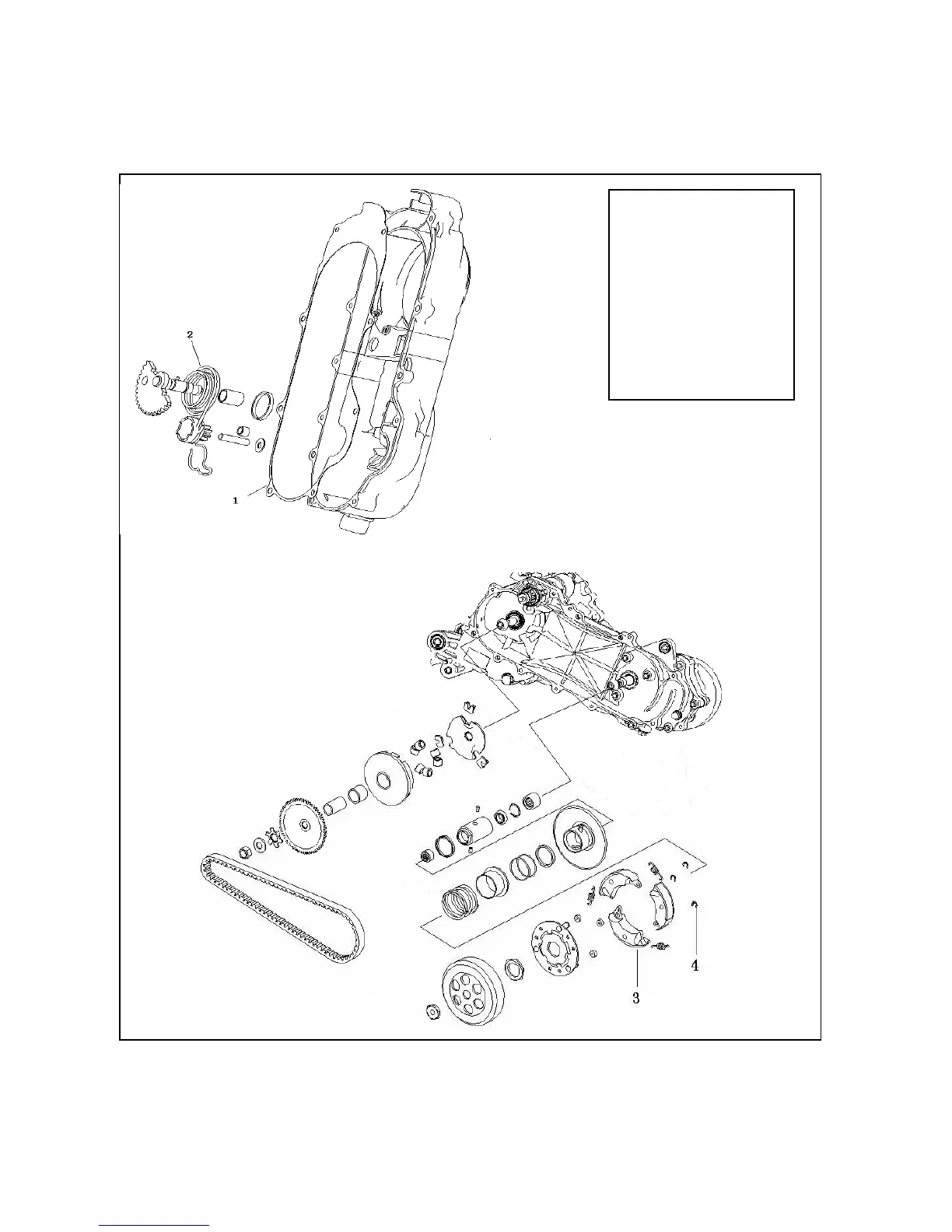

Drive face/clutch/driven wheel
1 gasket 2 sp
ring 3 friction plat
e 4 check ring
Note:
During operation, the
surface of the triangl
e belt can
not be stained with any grease
which must be removed. It
helps avoid slipping between
the triangle belt and the belt
pulley as much as possible.
132
134
Table of Contents
Default Chapter
2
Table of Contents
2
Preface
5
Preparing Documents
5
Special Tools
11
Inspection/Adjustment
40
Oil Level
43
Air Filter
44
Spark Plug
45
Idle Speed Adjustment
47
Ignition Timing
47
Drive Belt
49
Inspection and Maintenance of Electrical System
53
1 Battery/Charging System
55
Preparing Documents
55
Failure Diagnosis
56
Charging System
58
Voltage/Current Regulator
59
Magnetor Charging Coil
59
Magnetor Lighting Coil
60
2 Ignition System
62
Preparing Documents
63
Failure Diagnosis
64
Ignition System Check
65
CDI Group
67
Ignition Coil
67
Trigger
68
3 Startup System
69
Preparing Documents
70
Failure Diagnosis
71
Startup Motor
71
Starter Relay
73
4 Bulbs/Switches/Meters
75
Preparing Documents
75
Failure Diagnosis
75
Replacement of Headlamp Bulbs
75
Replacement of Rear Steering Lamp Bulbs
76
Replacement of Tail Lamp Bulbs
76
Meter
77
Main Switch
77
Handlebar Switch
78
Inspection and Maintenance of the Chassis
79
5 Brake
82
Maintenance Instruction
82
Failure Diagnosis
82
Front Disc Brake
83
Rear Drum Brake
84
6 Body
87
Front Wheel
89
Front Suspension
90
Front Fork Assembly
92
Bearing Replacement
94
Steering Handle
95
Front Fork
96
8 Rear Wheel/Rear Suspension
99
Rear Wheel
99
Rear Absorber
102
Fuel Tank/Seat
103
Preparing Documents
106
Failure Diagnosis
106
Fuel Tank/Seat
106
Disassembly/Installation of Engine
109
Preparing Documents
109
Failure Diagnosis
109
Disassembly of Engine
110
10 Lubricating System
113
Preparing Documents
114
Failure Diagnosis
114
Fuel Pump
115
11 Carburetor
118
Preparing Documents
119
Carburetor Installation
119
Carburetor Adjustment
119
Failure Diagnosis
120
Carburetor Disassembly
120
Installation and Adjustment
122
12 Cylinder Cover
124
Preparing Documents
125
Failure Diagnosis
125
Cylinder Cover
125
Cylinder Cover Check
126
Installation of Cylinder Cover
126
13 Cylinder Block and Piston
126
Preparing Documents
128
Failure Diagnosis
129
Cylinder Block
129
Piston
130
Installation
132
Kickstart Mechanism
134
15 Decelerator
135
Preparing Documents
135
Failure Diagnosis
135
Left Crankcase Cover
136
Gearbox
144
Assembly
145
Crankcase
146
Crankcase
147
Crankcase Disassembly
148
5
