KEEWAY FACT 50 4T - Fuel Tank;Seat

103

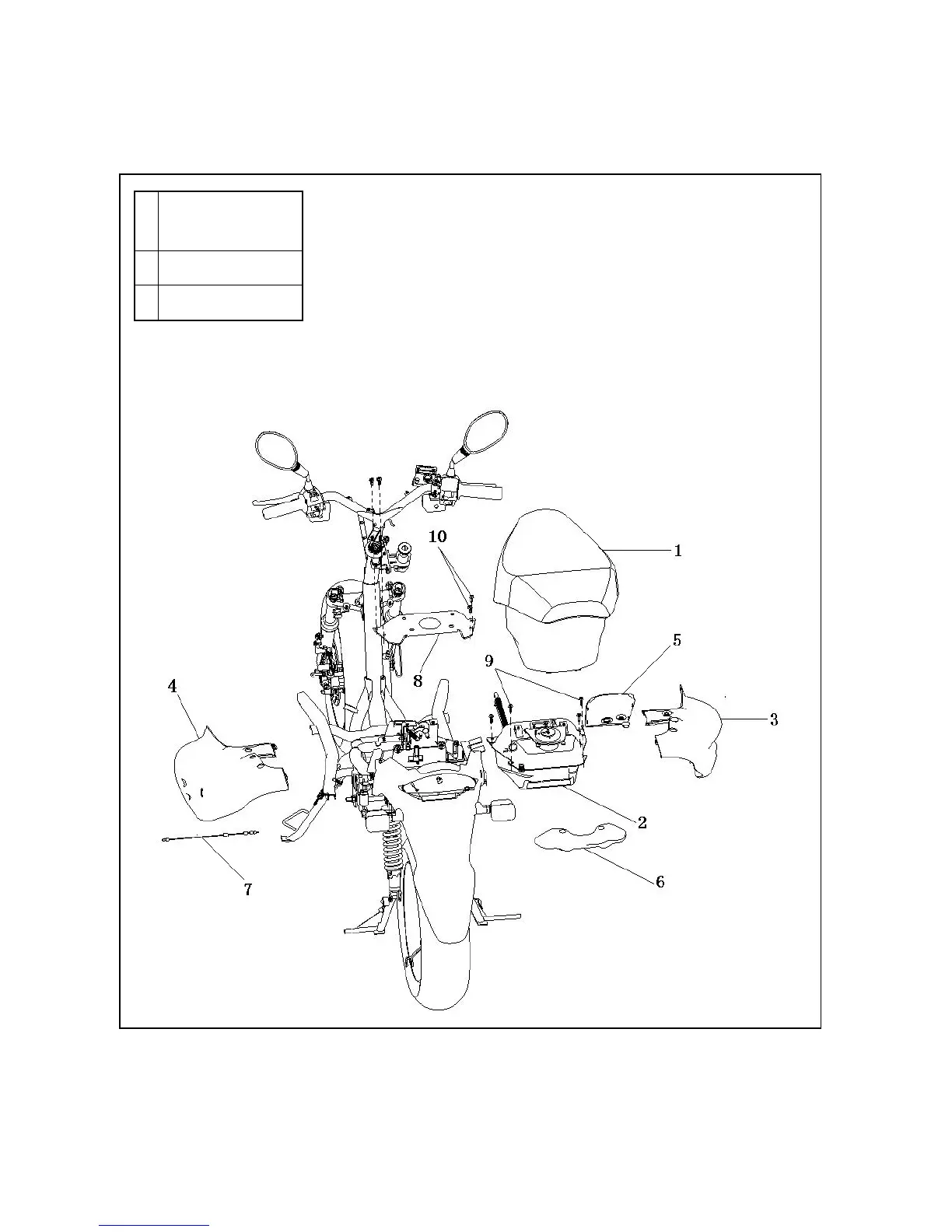

Fuel tank/seat
1 seat assembly 2 fuel tank assembly 3 right cover sheet 4 left cover sheet 5 front cover of helmet box 6 rear
storage box rack 7 seat steel rope 8 rear storage box rack holder 9 bolt M6×16 10 bolt M6×12
A
Note: for the
disassembly of the fuel
tank, turn the fuel
switch to “OFF”.
B
Torque for bolt
9:5-9N·m
D
Torque for bolt10:
5-9N·m
