104
Fuel tank

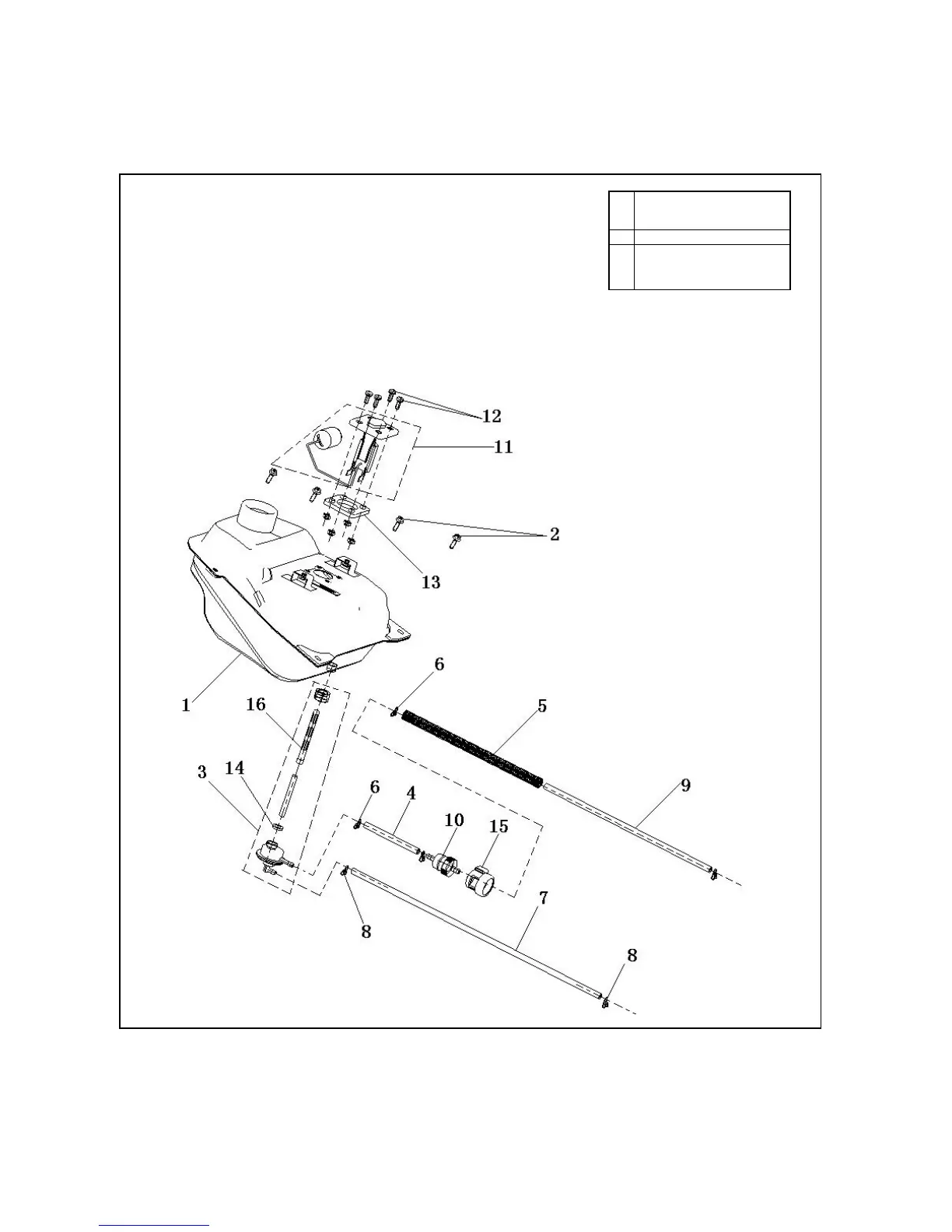

1 tank assembly 2 bolt M6×16 3 fuel tank switch assembly 4 fuel tube 1 φ4.5Xφ8.5X80mm 5 thermal-
isolating spring 6 clampφ8 7 vacuum tube φ4Xφ8X360mm 8 clamp φ7 9 fuel tube 2 φ4.5Xφ8.5X250mm 10
filter assembly 11 oil level sensor 12 bolt M5×16 13 oil level sensor gasket 14 sealing rubber 15 filter
jacket 16 filter element
A
Gasoline capacity:
6.0±0.2L
B Torque for bolt 2: 5-9N·m
D
Note: for the disassembly
of the fuel tank, turn the
fuel switch to “OFF”.
