Ruptured clutch spring Stained surface of the driving pulley

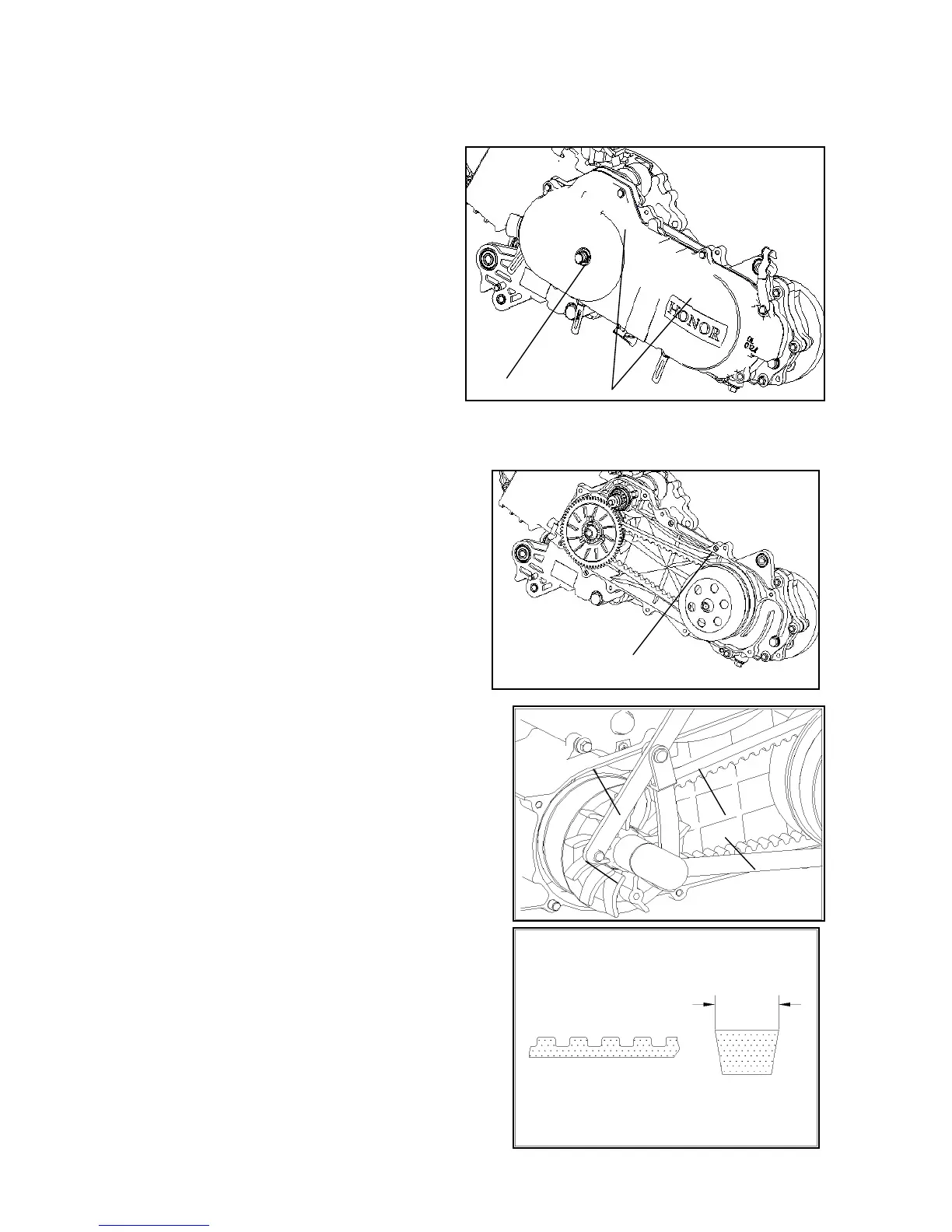

14.3 Left crankcase cover
Disassembly
Remove fixing bolts, spacer and locating pin.
Note：
Fixing bolts should be removed in staggered
sequence.
Remove the locating pin.
14.4 Drive face
14.4.1 Disassembly
Remove fixing nuts for drive face and the left half-drive face.
Remove the triangle belt from the drive face.
Check whether the triangle belt is cracked and whether
rubber or cotton yarn falls down or is abnormally abrasive.
Measure the width of the triangle belt.
Limit for use:18mm。
Note:
Apply original parts from our company for replacement.
Locating pin
Left half odrive face
Spanner
Trangle belt
Left cover
Fixing bolt
Fixer
Width
