69
Startup System

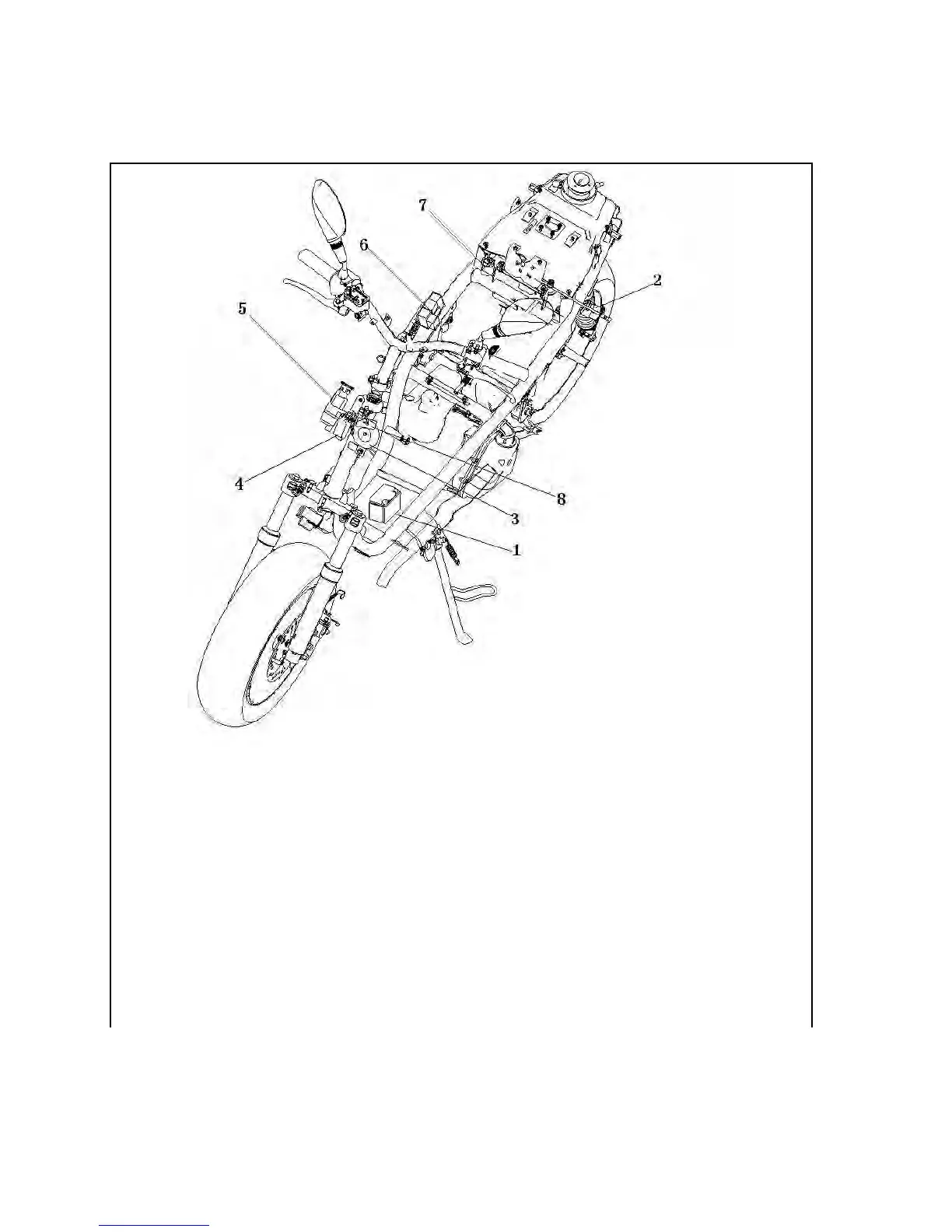

1. storage battery 12V，4AH 2. seat lock assembly 3. horn 4. rectifier 5. power lock assembly 6. CDI igniter 7.
relay 8. release resistance
（启动示意图：Startup Schematic Diagram）
