5.4.3 Installation
Install the brake shoe assembly.
Install the rear wheel.
Install the muffler.
* Note
Any grease on brake shoes will reduce the brake performance and even lead to failure.
Tighten bolts and nuts to the required torque force.
torque force:
Fixing nuts for rear wheel: 100-113 N·m
Do not stain brake shoes and brake disc with oil spots.
Use brake cleaning agent to clean brake shoes and brake
disc with oil spots.

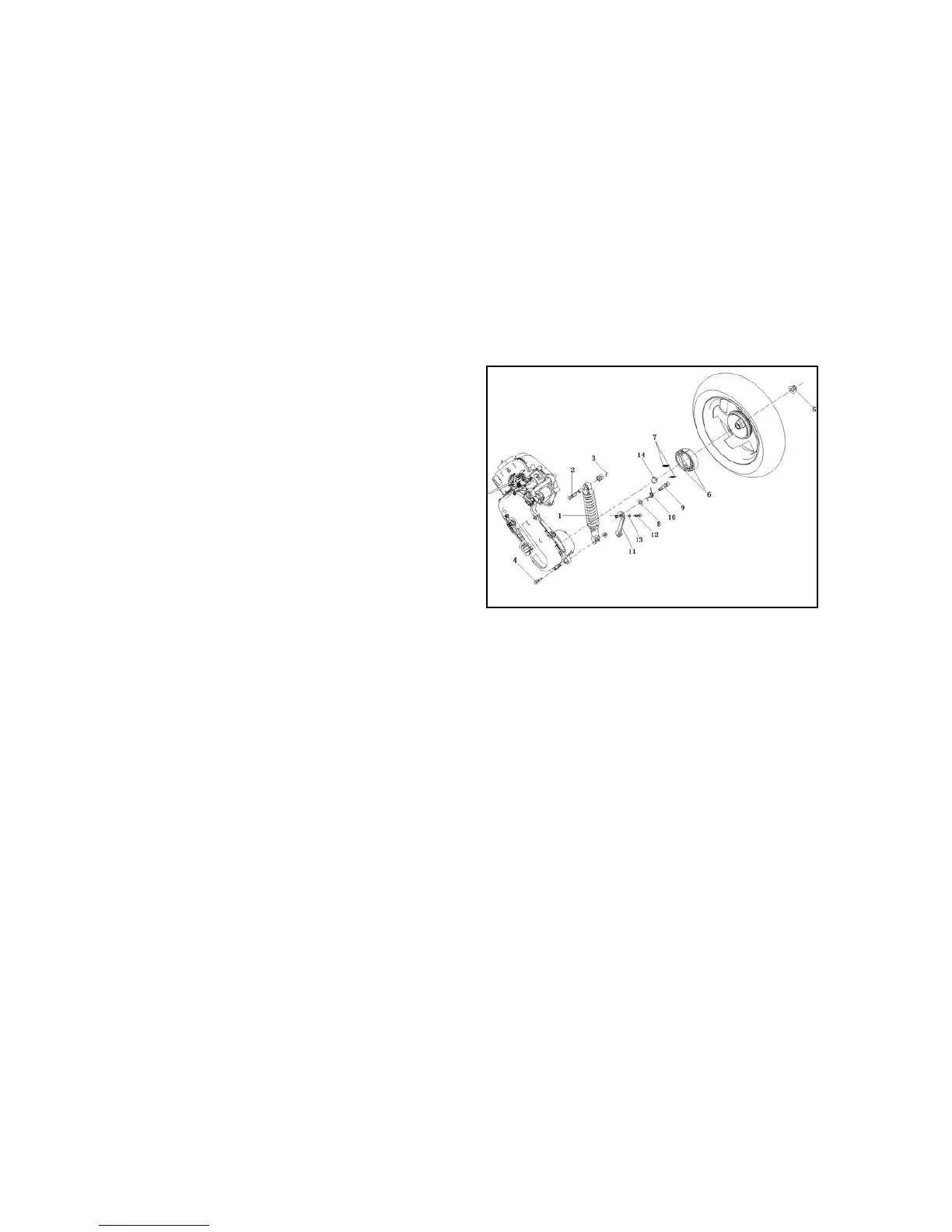

Rear brake:
1. rear swing arm mounting bolts（12）
2. rear brake swing arm assembly（11）
3. rear wheel fixing nuts（5）
4. rear indicator （8）
5. rear brake return spring（10）
6. rear brake camshaft（9）
7. brake shoe assembly（6）
8. brake shoe spring（7）
9. outer tire E11 75R -000216
10.rear rim assembly 3.5×12
* Note
Any oil spot on brake shoes will reduce the brake performance.
Note: for breakdown details, see P80.
