143

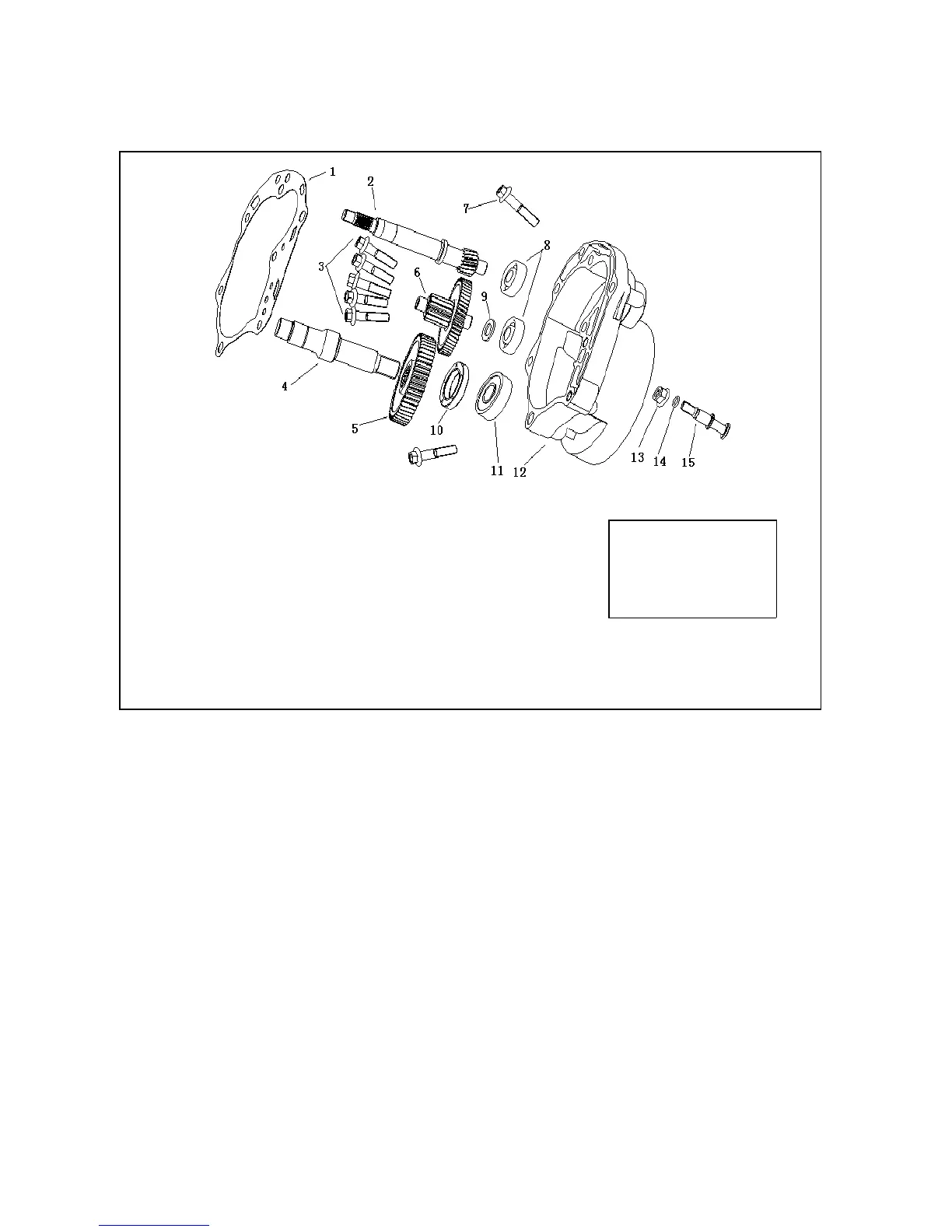

Decelerator
1 gearbox cover gasket 2 input shaft 3
hex flange bolt 4 output shaft assembly 5 input shaft gear 6
intermediate shaft assembly 7 hex flange nut 8 rolling bearing 9 gasket 10 output shaft seal ring 11rolling
bearing 12 gearbox cover 13 hex flange lock nut 14 O-ring 15 anchor pin
Function: transfer torque
and decide final output
torque and rotational speed.
