151
Inspection and Maintenance of Exhaust Emission System

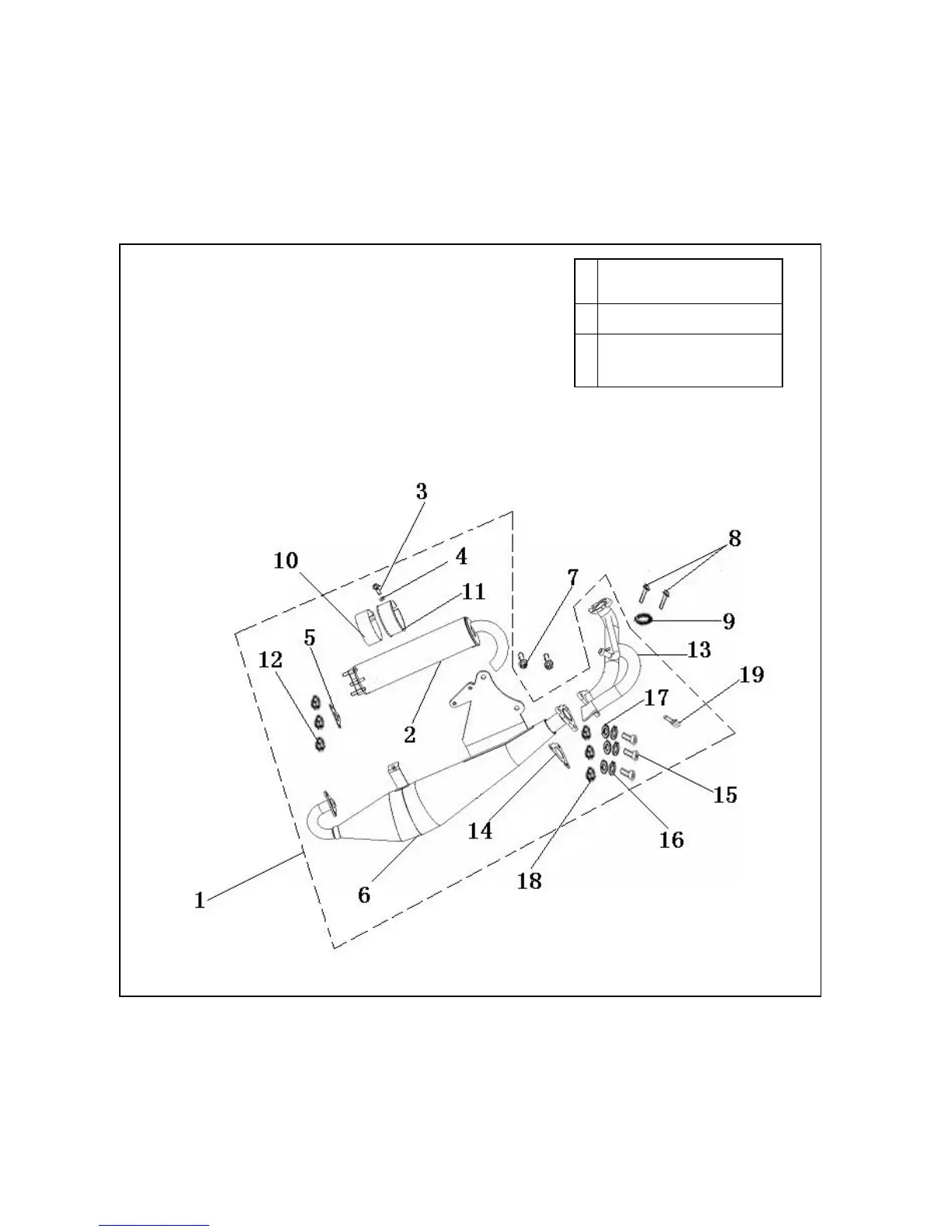

Muffler
1 muffler assembly 2 muffler tube assembly 3 bolt M6×20 4 gasket 6mm 5 sealing gasket 6 tube assembly
7 bolt M8×20 8 bolt M6×16 9 exhaust pipe gasket assembly 10 heat-insulating rubber 11 muffler hoop 12
nut M6 13 exhaust pipe assembly 14 connecting flange gasket 15 screw M6×25 16 spring gasket 6mm 17
gasket 6mm 18 nut M6 19 screw without head M6×25
A
Torque for fastening fixing
screw 15 of the muffler
connecter: 5-9 N·m
B
Torque for fastening fixing bolt
8 of the muffler: 5-9 N·m
C
Torque for fastening fixing bolt
3 of the muffler hoop:
5-9 N·m
