Handlebar

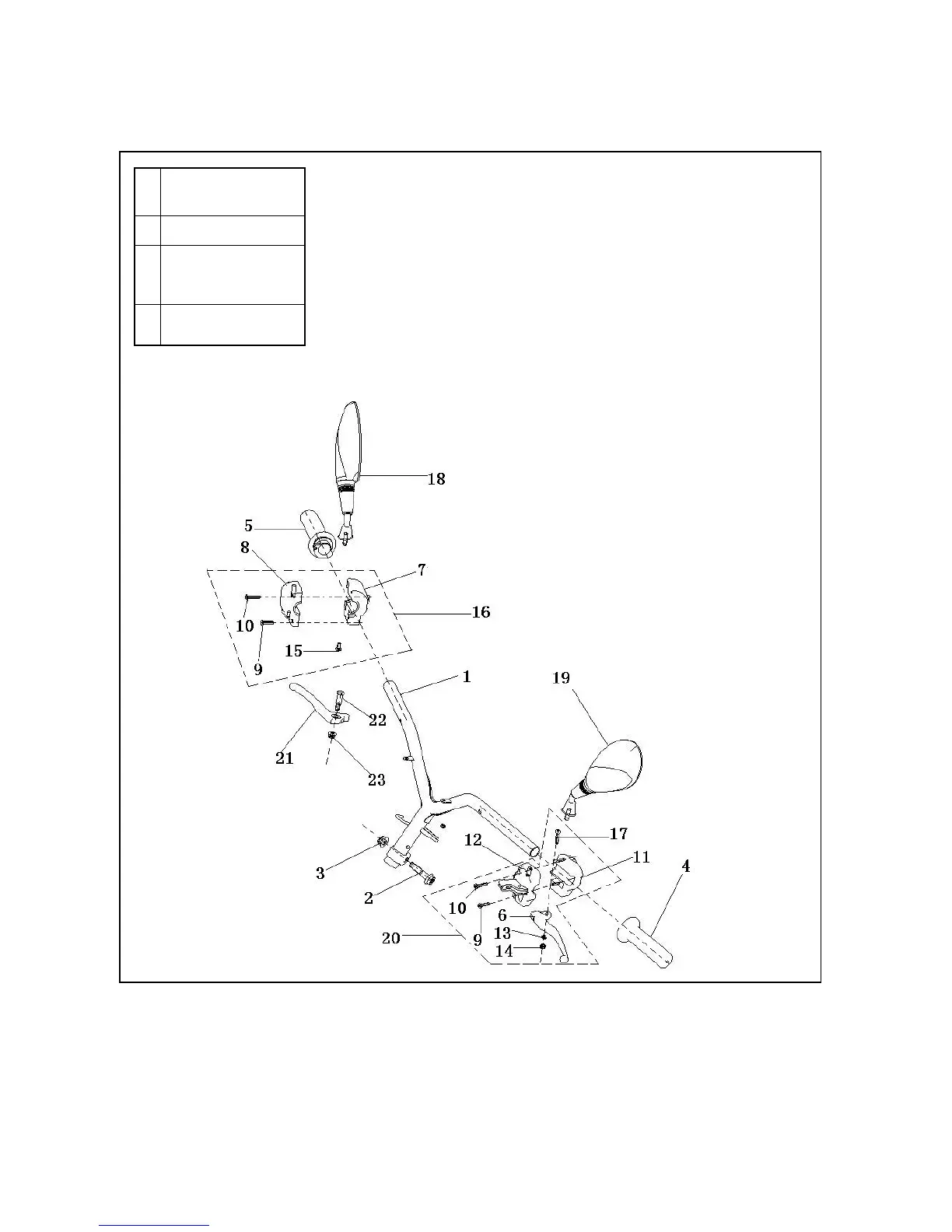

1 handlebar weld assembly 2 bolt M10×1.25×45 3 nut M10×1.25 4 left grip 5 throttle lever assembly 6 left
handle 7 right combined switch 8 right combined switch fitting seat 9 screw M5×20 10 screw M5×25 11 left
combined switch assembly 12 left combined switch assembly fitting seat 13 spring washer 5 14 nut M5 15 screw
M5×20 16 right combined switch assembly 17 handle set screw M5 18 right rearview mirror 19 left rearview
mirror 20 left combined switch assembly 21 right handle 22 handle set screw M5 23 nut M5
A
Torque for mounting
bolt 2 (handlebar fixing
bolts): 40-60N·m
B
Free stroke of front
brake handle: 10-20mm
C
Free stroke of rear
brake handle: 10-20mm
D
Free stroke of throttle
lever (Fig. 6): 2-5mm
