Rear wheel/rear suspension

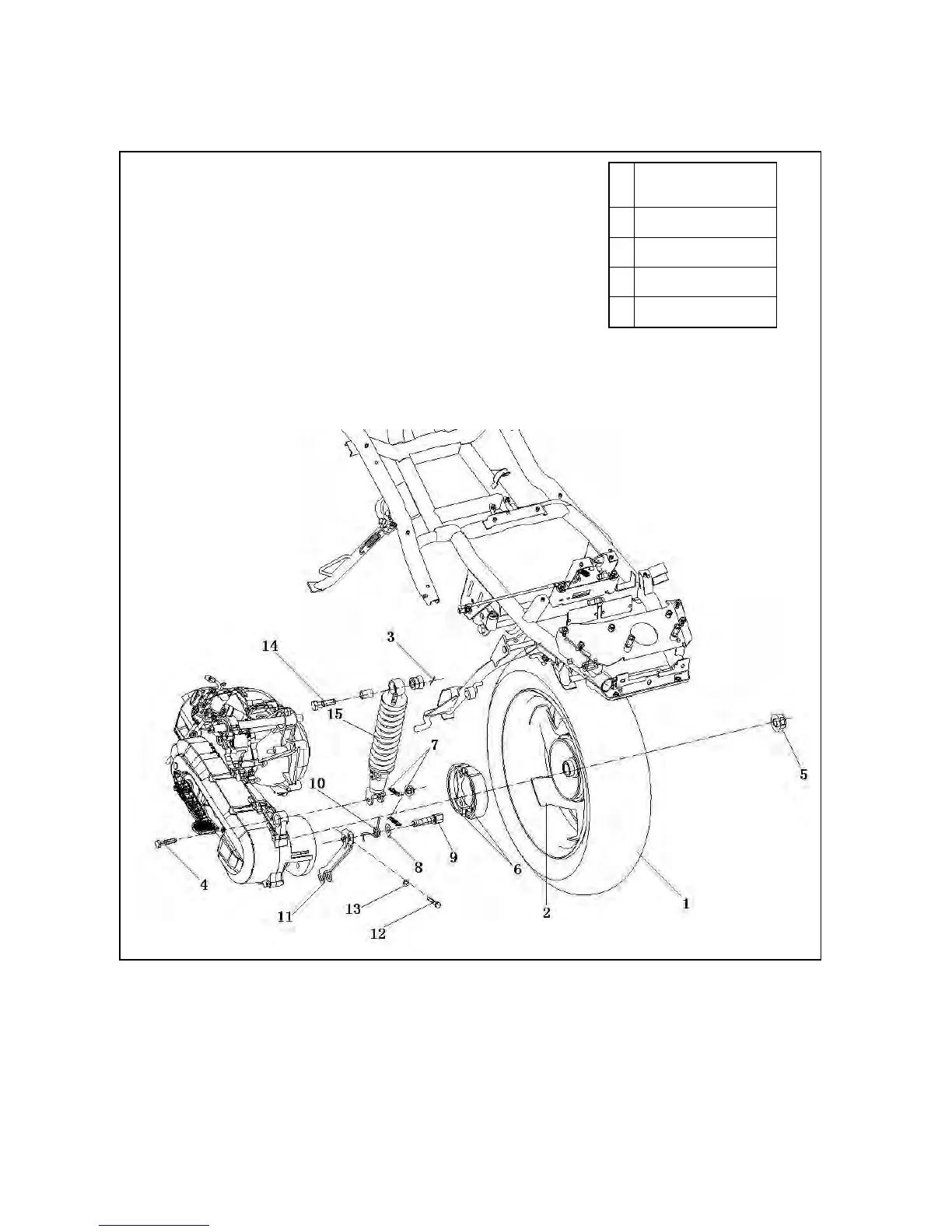

1 outer tire 130/70-12 2 rim 3.50×12 3 cotter pin 4 bolt M8×31 5 nut M16×1.5 6 brake shoe assembly 7 brake
shoe spring 8 rear indicator 9 rear brake camshaft 10 rear brake return spring 11 rear brake swing arm 12 rear
swing arm mounting bolt 13 o-ring 14 bolt M10×1.25×40 15 rear absorber assembly
A
Torque for fixing nut 5
of the rear wheel: 100-
113N·m
B
Torque for mounting
bolt 4: 22-29N·m
D
Torque for mounting
bolt 14: 37-44N·m
E
I.D. of brake hub
(friction limit): 111mm
F
Thickness of brake pad
(wear limit): 3.5mm
