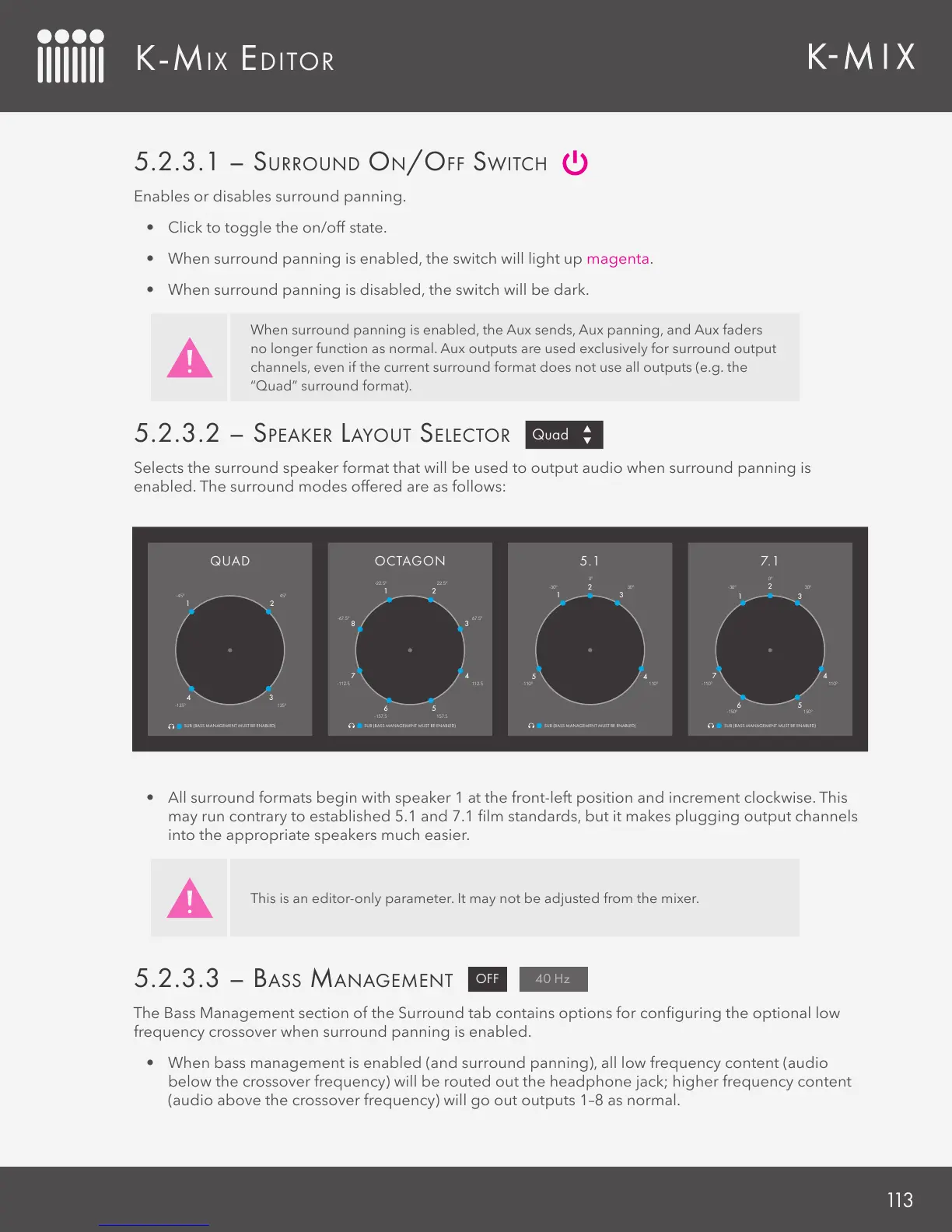

5.2.3.1 – SURROUND ON/OFF SWITCH
Enables or disables surround panning.
• Click to toggle the on/off state.
• When surround panning is enabled, the switch will light up magenta.
• When surround panning is disabled, the switch will be dark.
5.2.3.2 – SPEAKER LAYOUT SELECTOR
Selects the surround speaker format that will be used to output audio when surround panning is
enabled. The surround modes offered are as follows:
• All surround formats begin with speaker 1 at the front-left position and increment clockwise. This
may run contrary to established 5.1 and 7.1 lm standards, but it makes plugging output channels
into the appropriate speakers much easier.
5.2.3.3 – BASS MANAGEMENT
The Bass Management section of the Surround tab contains options for conguring the optional low
frequency crossover when surround panning is enabled.
• When bass management is enabled (and surround panning), all low frequency content (audio
below the crossover frequency) will be routed out the headphone jack; higher frequency content
(audio above the crossover frequency) will go out outputs 1–8 as normal.
When surround panning is enabled, the Aux sends, Aux panning, and Aux faders
no longer function as normal. Aux outputs are used exclusively for surround output
channels, even if the current surround format does not use all outputs (e.g. the
“Quad” surround format).
Quad
8
1 2
3
4
56
7
OCTAGON
22.5º
67.5º
112.5
-67.5º
-112.5
157.5
-22.5º
-157.5
1 3
2
5 4
5.1
30º
0º
-30º
110º-110º
SUB (BASS MANAGEMENT MUST BE ENABLED)
1 2
34
QUAD
45º
135º-135º
-45º
1 3
2
6
7 4
5
7.1
SUB (BASS MANAGEMENT MUST BE ENABLED)
30º
150º
0º
-30º
-150º
110º-110º
SUB (BASS MANAGEMENT MUST BE ENABLED)SUB (BASS MANAGEMENT MUST BE ENABLED)
This is an editor-only parameter. It may not be adjusted from the mixer.
OFF 40 Hz
