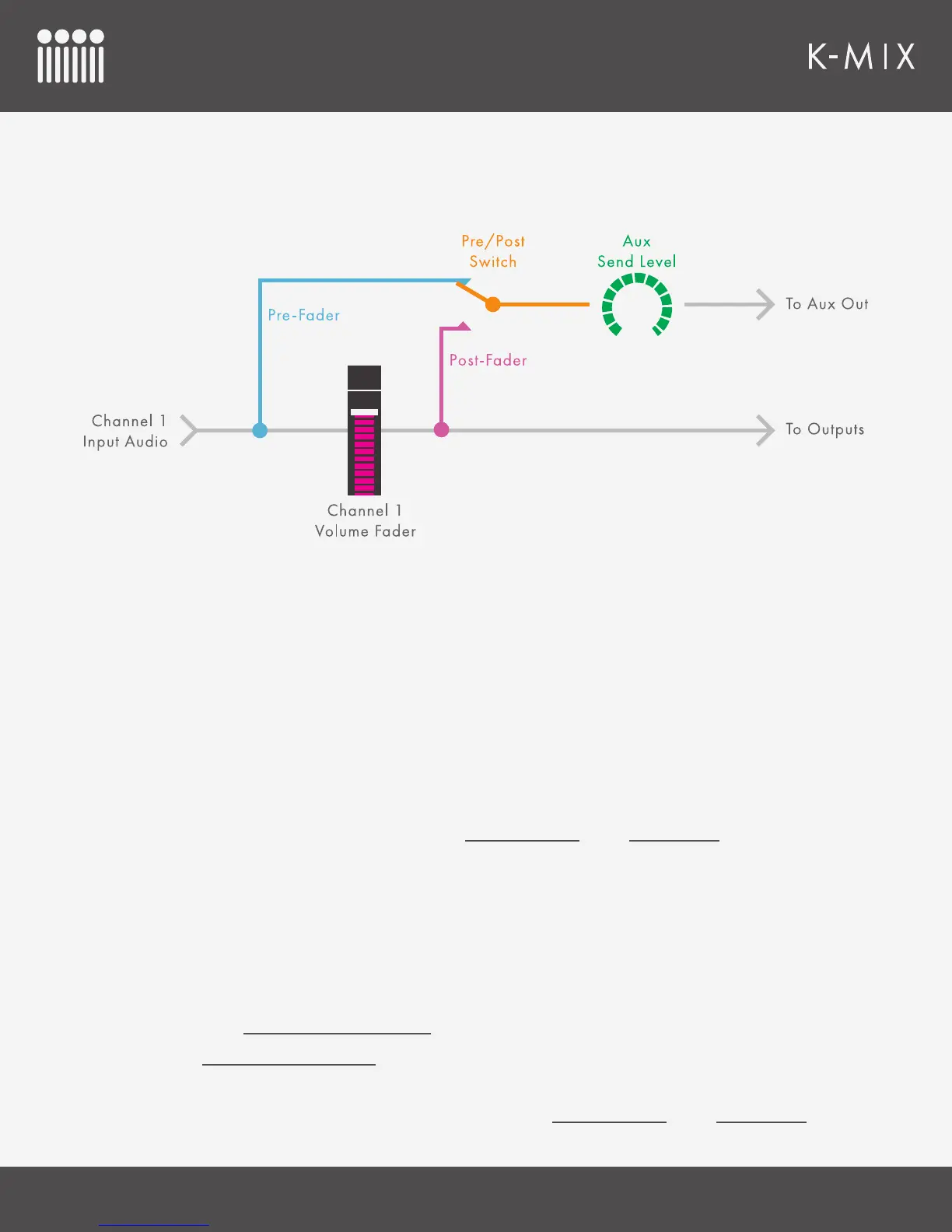

Below is a diagram illustrating the signal ow of pre-fader and post-fader sends:
AUX PANNING
Each aux send level is accompanied by an aux panning parameter. The aux panning parameter sets the
left/right panning of the signal going to the selected aux output bus pair.
• Audio can be sent out just a single output by panning to the extreme left or right. Full left will
go solely out the odd-numbered output (output 3 for Aux 1, output 5 for Aux 2, output 7 for Aux
3); full right will go solely out the even-numbered output (output 4 for Aux 1, output 6 for Aux 2,
output 8 for Aux 3).
• Centering the pan parameter will send the channel’s audio signal equally to both outputs of the
aux pair.
Aux panning can be adjusted directly from the K-Mix hardware or the K-Mix Editor.
3.5.3 – HEADPHONE OUTPUT
K-Mix has a 1/8” stereo headphone output jack at the very front of the hardware. The headphone output
can be used for a number of purposes.
• Monitor any of the four stereo output bus pairs (Mains, Aux 1, Aux 2, Aux 3).
• Monitor any of K-Mix’s input channels (pre-fader).
• Act as its own discrete stereo output bus, outputs 9–10.
• Act as a low frequency crossover output when mixing in surround.
Headphone output behavior can be adjusted directly from the K-Mix hardware or the K-Mix Editor.
