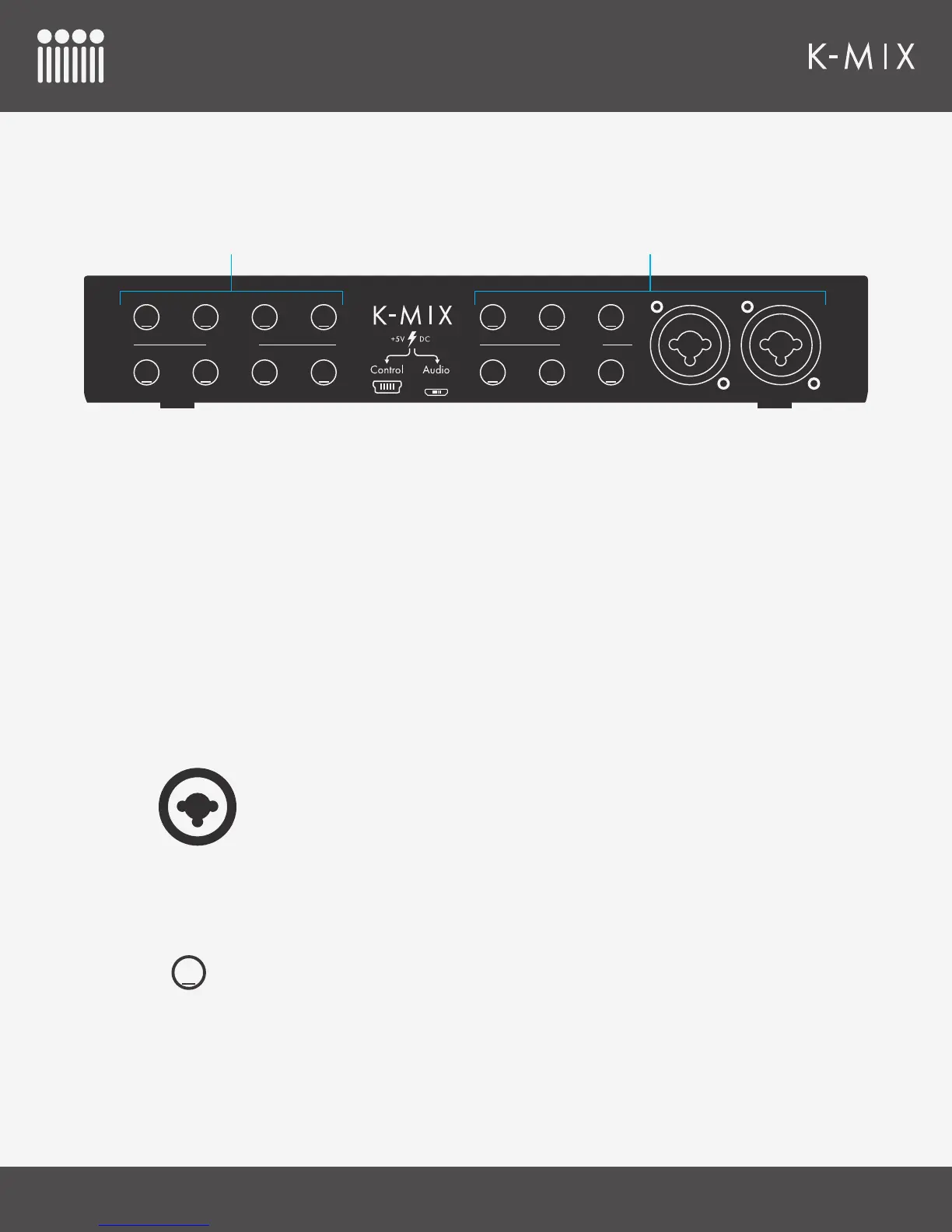

2.1.2 – BACK PANEL
2.1.2.1 – OUTPUTS
This is where all of the audio comes out!
Each of the eight outputs provides a balanced, mono audio signal via 1/4” jacks.
2.1.2.2 – INPUTS
This is where all of the audio signals you want to mix go in!
K-Mix offers eight balanced, mono inputs, and is capable of accepting both XLR (inputs 1 & 2 only) and
1/4” connectors.
XLR/TRS COMBO JACKS
Inputs 1 & 2 on K-Mix feature two XLR/TRS combo jacks. These allow for connecting microphones via
XLR connectors or line level and instrument level signals via 1/4” TRS connectors.
1/4” JACKS
Inputs 3–8 on K-Mix feature 1/4” TRS jacks. These allow for connecting balanced (or unbalanced) line
level and phono level signals via 1/4” TRS connectors.
Outputs Inputs
1
4
3
6
5
8
7
2
3
6
5
8
7
4
2 1
Outputs Inputs
