Keithley 2010 Service Manual

Verifying frequency
Follow the steps below to verify the Model 2010 frequency function.

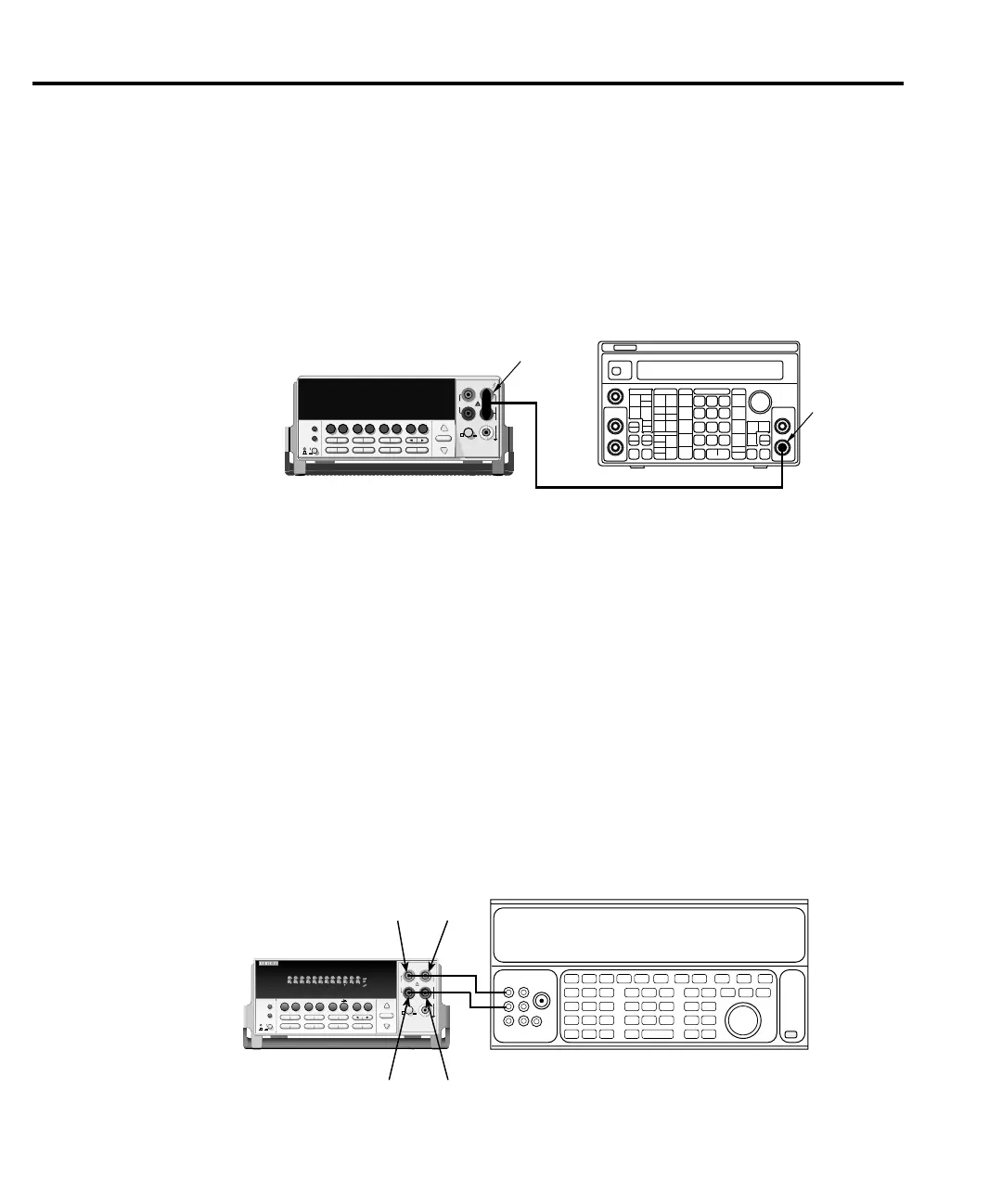

1. Connect the frequency synthesizer to the Model 2010 INPUT jacks. See Figure 1-7.
2. Set the synthesizer to output a 1kHz, 1V RMS sine wave.
3. Select the Model 2010 frequency function by pressing the FREQ key.
4. Verify that the Model 2010 frequency reading is between 0.99992kHz and 1.00008kHz.
Verifying ratio
CAUTION When verifying ratio or using sense volts, the SENSE LO terminal must be
referenced to INPUT LO. Exceeding 350V DC from SENSE HI to SENSE
LO will cause instrument damage.
1. Connect SENSE HI to INPUT HI, and connect SENSE LO to INPUT LO.
2. Connect the DC calibrator output HI and LO terminals to the Model 2010 HI and LO
terminals respectively, as shown in Figure 1-8.
3. Select the Model 2010 DCV function, and select the 1V range.
4. Set the DC calibrator output to +1.000000V DC, and turn on its output.
5. Press SHIFT then RATIO, then select and enable both RATIO:ON and SENSEIN:ON.
6. Verify that the ratio reading is between 0.9999460 and 1.0000540.
2000 MULTIMETER
!
R
Model 2010
BNC-to-Dual
Banana Plug
Adapter
50Ω BNC Coaxial Cable
Model 3930A or 3940 Synthesizer
Main
Function
Output
Fi
gure
1
-
7
C
onnections for
f
requency verification
Model 2010
2010 MULTIMETER
RANGE
!
F
500V
PEAK
FRONT/REAR
3A 250V
AMPS
HI
LO
INPUTS
350V
PEAK
1000V
PEAK
SHIFT
LOCAL
POWER
RANGE
R
SHIFT
CH1REM
TALK
LSTN
SRQ
STAT
REL FILT
4W
BUFFER
MATH
REAR
SCAN
TIMER
STEP CH2 CH3 CH4 CH5 CH6 CH7 CH8 CH9 CH10
HOLD TRIG FAST MED SLOW AUTO ERR
INPUT
SENSE
Ω 4 WIRE
AUTO
EXIT ENTER
DIGITS RATE
RELFILTER
TRIG
EX TRIG
STORE RECALL
OPEN CLOSE
DCV
DCI
MX+B
%
dBm
ACV
ACI
Ω2 Ω4
FREQ
TEMP
dB
CONT PERIOD SENSOR
LIMITS ON/OFFDELAY
HOLD
SAVE SETUP
CONFIG HALT
TYPE
RS232
GPIB
RATIO
STEP SCAN
DRYCKT O COMP
CAL TEST
SENSE HI
LOSENSE LO
HI
Model 5700A
Short SENSE HI to INPUT HI
Short SENSE LO to INPUT LO
Fi
gure
1
-
8
Verifying ratio
1-14 Performance Verification

Keithley 2010 Specifications

General

Frequency Range	3 Hz to 300 kHz
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	3 A
DC Current Accuracy	0.05%
AC Current Range	3 A
Resistance Accuracy	0.01%
Interface	GPIB, RS-232
Power Supply	50 Hz or 60 Hz
