AC voltage calibration
Follow these steps for AC voltage calibration:
1. Connect the calibrator to the Model 2010 INPUT HI and LO terminals as shown in
Figure 2-4.
2. Perform the calibration steps summarized in Table 2-6. For each step:
• Set the calibrator to the indicated value, and make sure the calibrator is in operate.
• Press ENTER to complete each step.
• Wait until the Model 2010 completes each step.
NOTE Do not exceed ±15V peak between sense LO and LO. You may have to remove the
external sense leads before calibrating AC volts. Even though some calibrators can
turn off their external sense, the AC voltage can still cause excess voltage to appear
between sense LO and LO.
Table 2-6
AC voltage calibration summary
Calibration step Calibrator voltage, frequency
10mV AC at 1kHz
100mV AC at 1kHz
100mV AC at 50kHz
1V AC at 1kHz
1V AC at 50kHz
10V AC at 1kHz
10V AC at 50kHz
100V AC at 1kHz
100V AC at 50kHz
700V AC at 1kHz
10.00000mV, 1kHz
100.0000mV, 1kHz
100.0000mV, 50kHz
1.000000V, 1kHz
1.000000V, 50kHz
10.00000V, 1kHz
10.00000V, 50kHz
100.0000V, 1kHz
100.0000V, 50kHz
700.000V, 1kHz
2000 MULTIMETER
!
R
Output HI
Input
LO
Output
LO
Model 2010
5700A Calibrator
Input HI

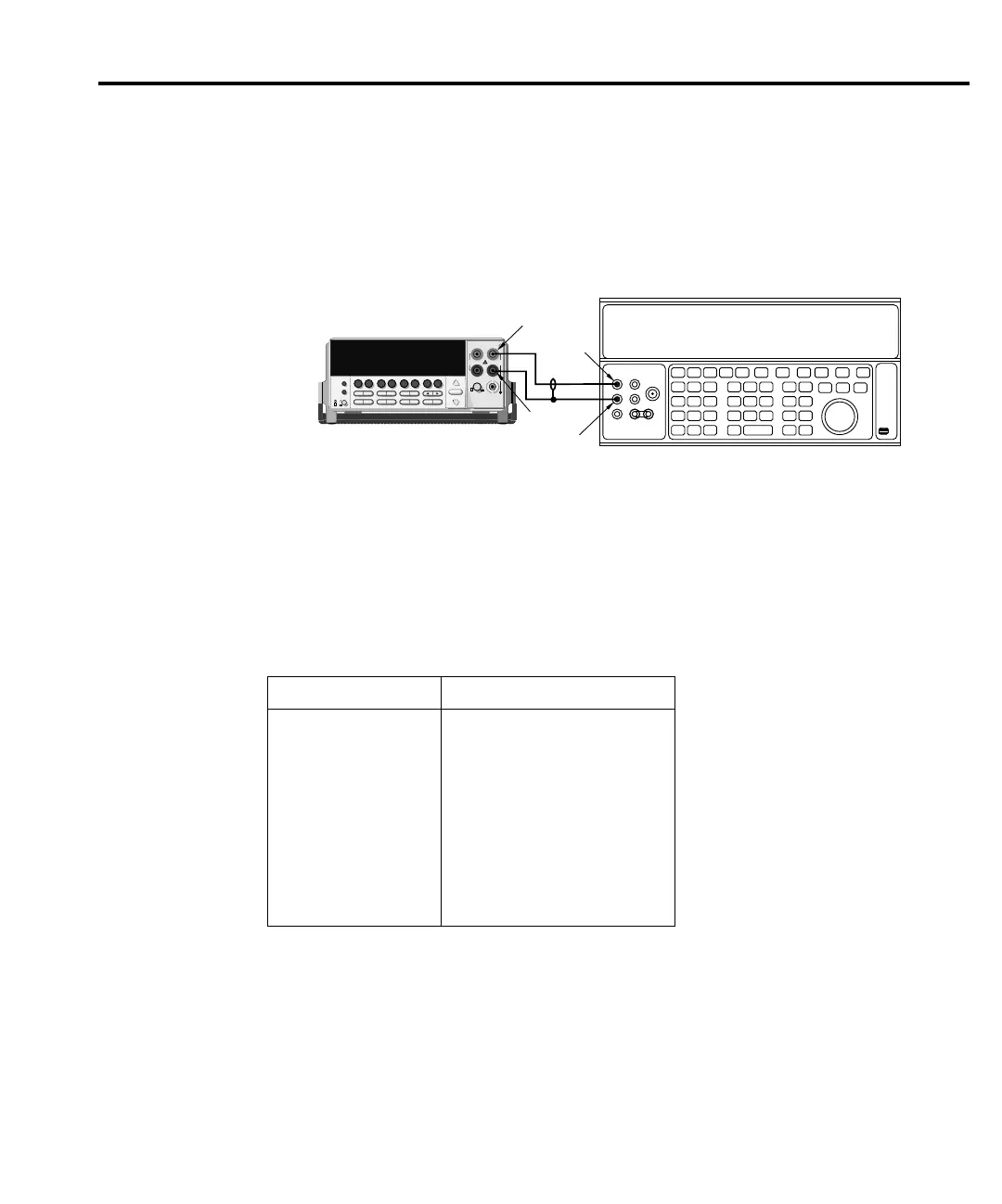

Fi
gure
2
-
4
C
onnections for AC
volts calibration
Calibration 2-11

Keithley 2010 Specifications

General

Frequency Range	3 Hz to 300 kHz
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
DC Current Range	3 A
DC Current Accuracy	0.05%
AC Current Range	3 A
Resistance Accuracy	0.01%
Interface	GPIB, RS-232
Power Supply	50 Hz or 60 Hz
