Introduction
This section describes routine type maintenance that can be performed by the operator and
includes procedures for replacing both the line fuse and the amps fuse.
Setting the line voltage and replacing the line fuse
WARNING Disconnect the line cord at the rear panel, and remove all test leads
connected to the instrument (front and rear) before replacing the line fuse.

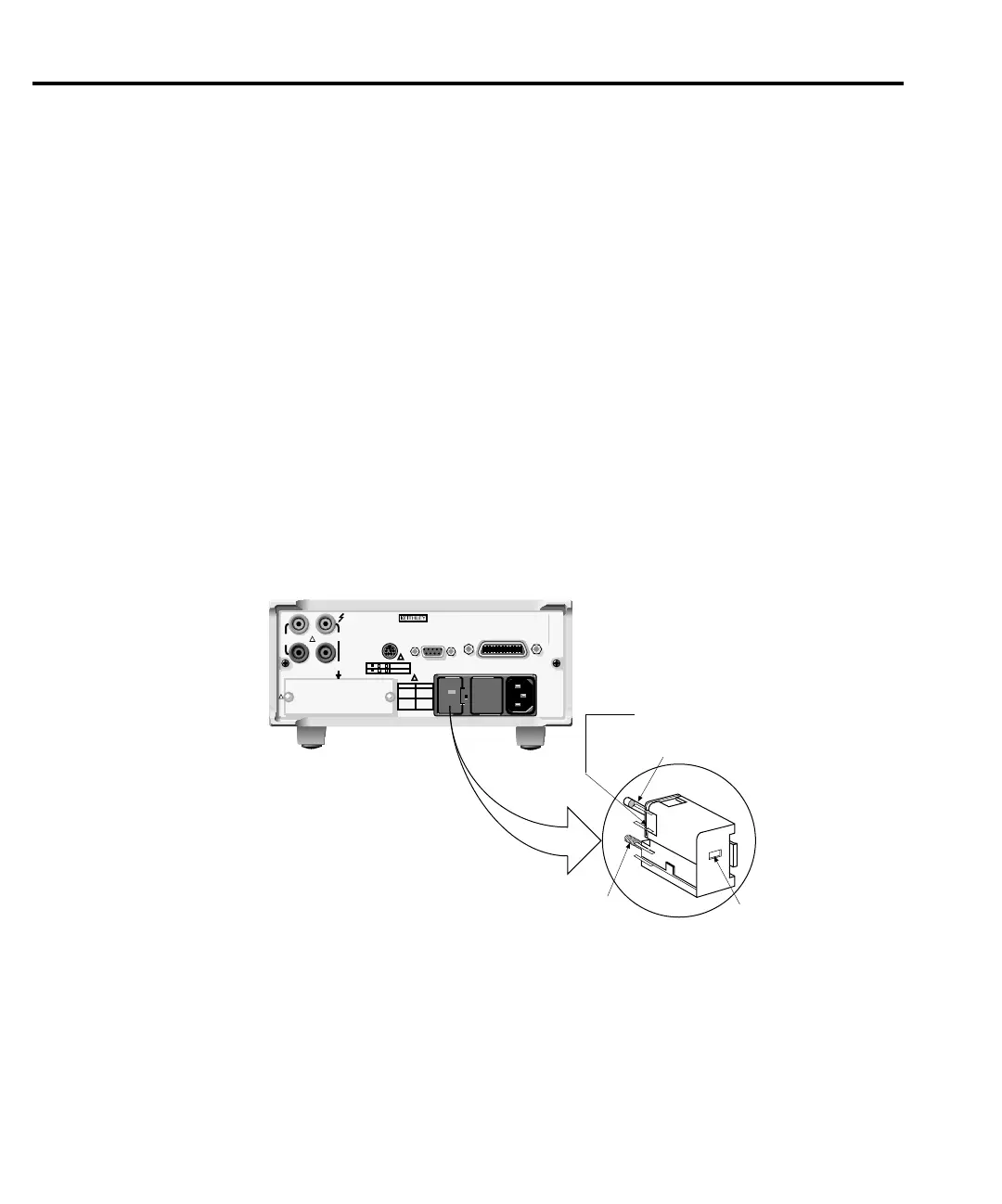

The power line fuse is located in the power module next to the AC power receptacle (see
Figure 3-1). If the line voltage must be changed or if the line fuse requires replacement, perform
the following steps:
1. Place the tip of a flat-blade screwdriver into the power module by the fuse holder
assembly (see Figure 3-1). Gently push in and turn to the left. Release pressure on the
assembly, and its internal spring will push it out of the power module.
Model 2010
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
WARNING:NO INTERNAL OPERATOR SERVICABLE PARTS,SERVICE BY QUALIFIED PERSONNEL ONLY.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
CAUTION:FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,REPLACE FUSE WITH SAME TYPE AND RATING.
RS232
1
3 5
2
4 6
VMC
EXT TRIG
FUSE LINE
250mAT
(SB)
100 VAC
120 VAC
125mAT
(SB)
220 VAC
240 VAC
120
MADE IN
U.S.A.
INPUT
500V
PEAK
350V
PEAK
1000V
PEAK
TRIGGER
LINK
SENSE
Ω 4W
HI
LO
!
LINE RATING
50, 60
400HZ
17 VA MAX
IEEE-488
(CHANGE IEEE ADDRESS
FROM FRONT PANEL)
!
!
!
120
240
220
100
Fuse
Spring
Window
Line Voltage Selector
Fuse Holder Assembly
gure
-
ower module
3-2 Routine Maintenance
