6. Source the nominal full-scale resistance values for the 100Ω-10MΩ ranges summarized
in Table 1-6, and verify that the readings are within calculated limits.
7. Connect the Model 2700 INPUT and SENSE jacks to the calibrator as shown in
Figure 1-6.
8. Disable external sense on the calibrator.
9. Set the Model 2700 for the 100MΩ range.
10. Source a nominal 100MΩ resistance value, and verify that the reading is within calcu-
lated limits for the 100MΩ range.

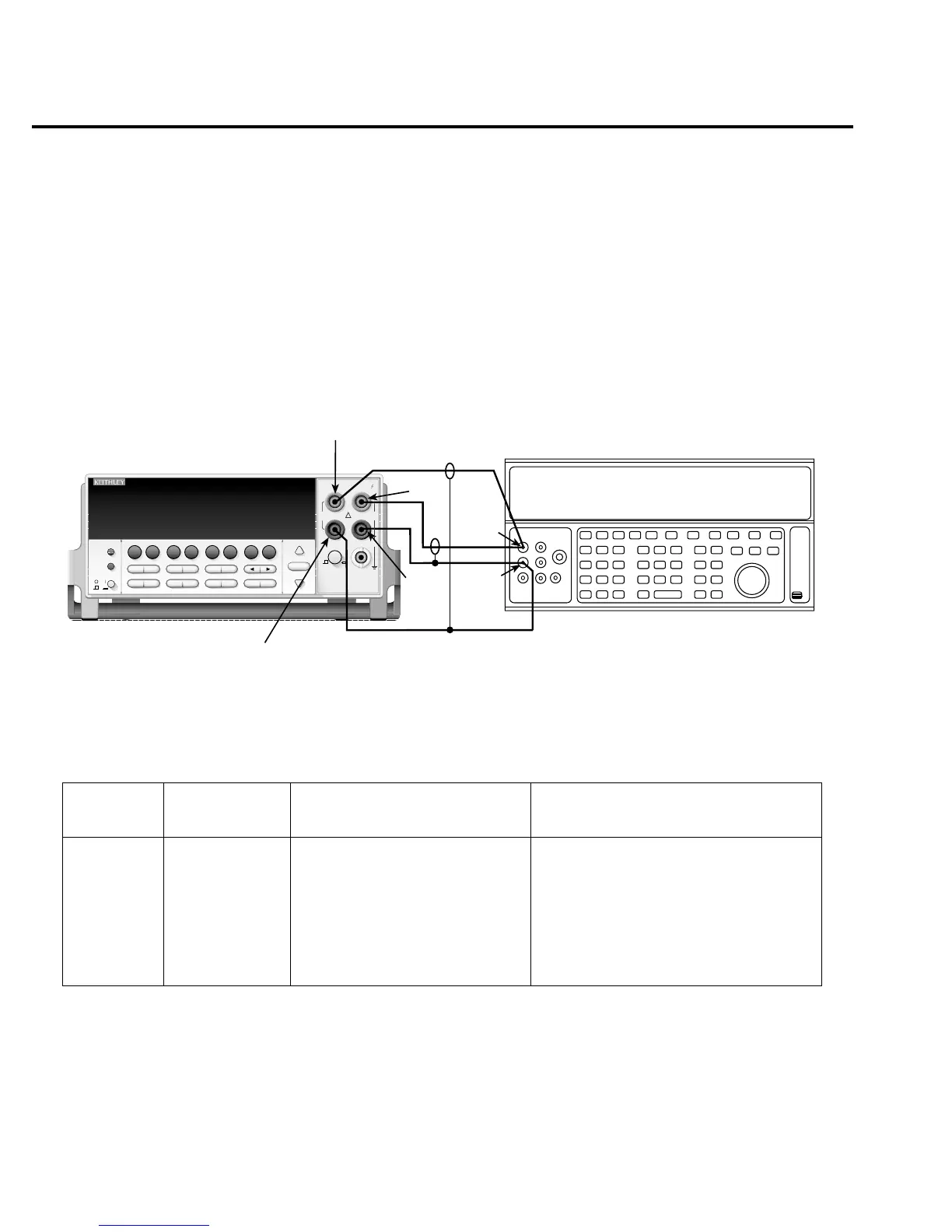

Figure 1-6
Connections for Model 2700 resistance verification (100MΩ range)
Table 1-6
Limits for resistance verification
Ω Range
Nominal
resistance
Nominal reading limits
(1 year, 18°C to 28°C) Recalculated limits**
100Ω∗
1kΩ
10kΩ
100kΩ
1MΩ
10MΩ
100MΩ
100Ω
1kΩ
10kΩ
100kΩ
1MΩ
10MΩ
100MΩ
99.9884 to 100.0116Ω
0.999894 to 1.000106kΩ
9.99894 to 10.00106kΩ
99.9890 to 100.0110kΩ
0.999890 to 1.000110MΩ
9.99590 to 10.00410MΩ
99.7970 to 100.2030MΩ
__________ to __________ Ω
__________ to __________ kΩ
__________ to __________ kΩ
__________ to __________ kΩ
__________ to __________ MΩ
__________ to __________ MΩ
__________ to __________ MΩ
* Enable O COMP (offset-compensated ohms) when testing 100Ω range.
** Calculate limits based on actual calibration resistance values and Model 2700 one-year resistance accuracy specifications. See
Verification limits.
Output
LO
Input
LO
Input
HI
Calibrator (Output 2-wire Resistance)
Note: Use shielded cables to minimize noise.
Disable calibrator external sense mode.
Sense HI
Sense LO
Output
HI
Model 2700
Model 2700 Multimeter / Data Acquisition System
