Section 9: Measurement Concepts Model 6482 Dual-Channel Picoammeter / Voltage Source Reference Manual

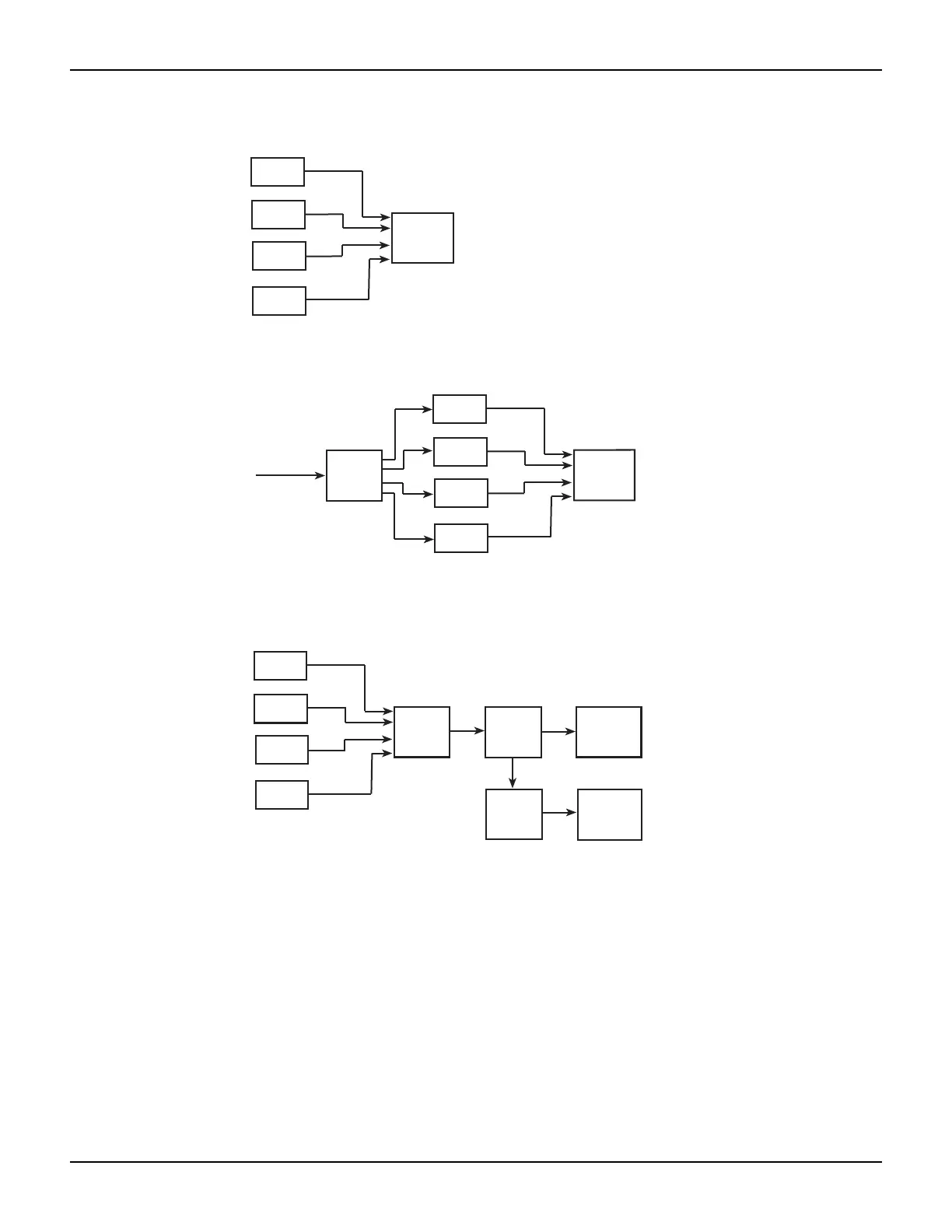

Figure 9-6
Data flow front panel
A. Data store and limit tests disabled
MSR1
Display
readings
Data
store
buer
B. Data store enabled
Limit
3 to 6
feed
C. Limit tests and data store enabled
MSR2
RATIO
DELTA
MSR1
Recalled
readings
MSR2
RATIO
DELTA
MSR1
MSR2
RATIO
DELTA
Data
store
Readings
with
pass/fai l
Recalled readings
depend on selected
function.
All functions
stored when
data store
enabled.
Displayed readings
depend on selected
function.
Recall
with
pass/fai l
Limit
test
enabled
