6482-901-01 Rev. A / August 2012 Return to Section Topics 13-11
Model 6482 Dual-Channel Picoammeter / Voltage Source Reference Manual Section 13: Status Structure
Operation event register
The used bits of the operation event register (Figure 13-5) are described as follows:
• Bit B0, Calibrating (Cal): Set bit indicates that the Model 6482 is calibrating.
• Bits B1 through B4: Not used.
• Bit B5, Waiting for Trigger Event (Trig): Set bit indicates that the Model 6482 is in the
trigger layer waiting for a TLINK trigger event to occur.
• Bit B6, Waiting for Arm Event (Arm): Set bit indicates that the Model 6482 is in the arm
layer waiting for an arm event to occur.
• Bits B7 through B9: Not used.
• Bit B10, Idle State (Idle): Set bit indicates the Model 6482 is in the idle state.
• Bits B11 through B15: Not used.

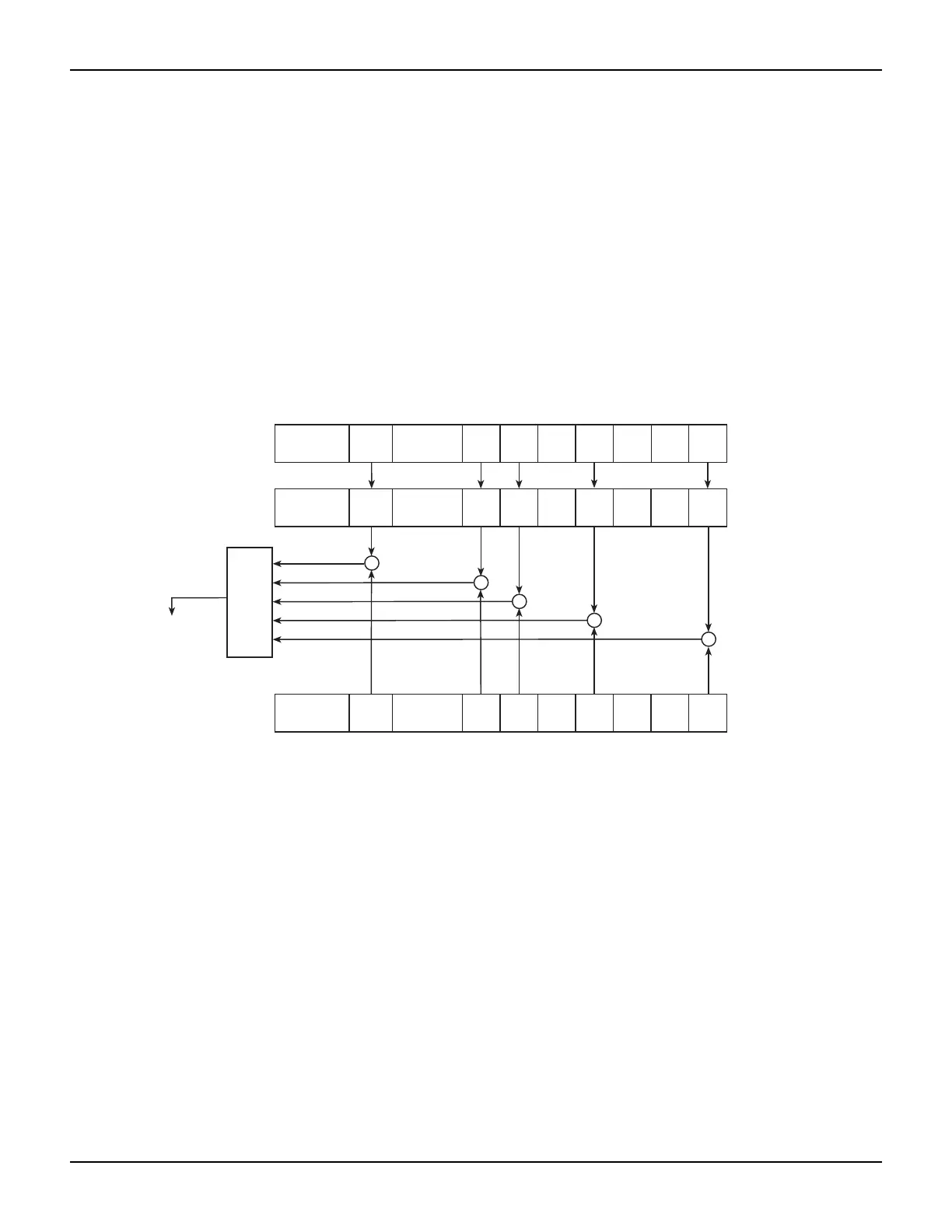

Figure 13-5
Operation event status
Swp
(B3)
—
(B2)
—
(B1)
Cal
(B0)
—
(B4)
Trig
(B5)
Arm
(B6)
—
(B9 - B7)
Idle
(B10)
—
(B15 - B11)
Operation
Condition
Register
Operation
Event
Register
Operation
Event
Enable
Register
&
&
&
&
&
OR
To Operation
Summary Bit
(OSB) of Status
Byte Register
(Figure 14-3)
Stat: oper: cond ?
Swp
(B3)
—
(B2)
—
(B1)
Cal
(B0)
—
(B4)
Trig
(B5)
Arm
(B6)
—
(B9 - B7)
Idle
(B10)
—
(B15 - B11)
Swp
(B3)
—
(B2)
—
(B1)
Cal
(B0)
—
(B4)
Trig
(B5)
Arm
(B6)
—
(B9 - B7)
Idle
(B10)
—
(B15 - B11)
Idle = In idle state
Arm = Waiting for arm event
Trg = Waiting for trigger event
Swp = Sweeping
Cal = Calibrating
& = Logical AND
OR = Logical OR
Stat: oper: ?
:stat: oper: enab <NRf>
:stat: oper: enab ?
