Model 6482 Dual-Channel Picoammeter / Voltage Source Reference Manual Section 17: Calibration

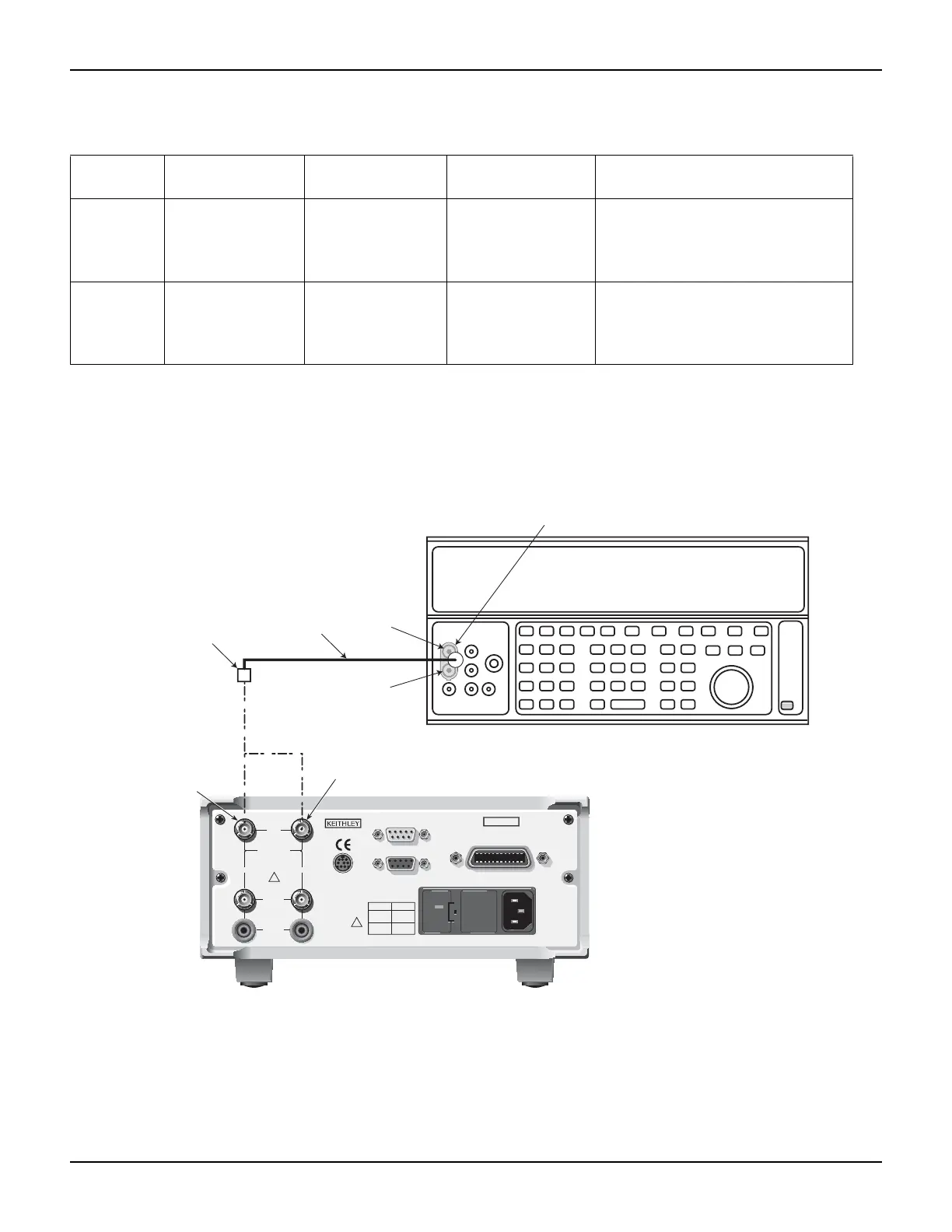

Figure 17-2
Connections for current verification tests (20 μA to 20 mA ranges)
Table 17-2
Current measurement verification limits
Connections Model 6482 range Model 6430 current Model 5700A current
Reading limits*
1 year, 18° C to 28° C (65° F to 82° F)
Figure 17-1
2 nA 1.90000 nA - 1.87900 nA to 1.92100 nA
20 nA 19.0000 nA - 18.9220 nA to 19.0780 nA
200 nA 190.000 nA - 189.230 nA to 190.770 nA
2 μA 1.90000 μA - 1.89600 μA to 1.90400 μA
Figure 17-2 20 μA - 19.0000 μA 18.9610 μA to 19.0390 μA
200 μA - 190.000 μA 189.790 μA to 190.210 μA
2 mA - 1.90000 mA 1.89610 mA to 1.90390 mA
20 mA - 19.0000 mA 18.9790 mA to 19.0210 mA
*Limits do not include Model 6430/5700A uncertainty.
