PRINCIPLES OF OPERATION 25

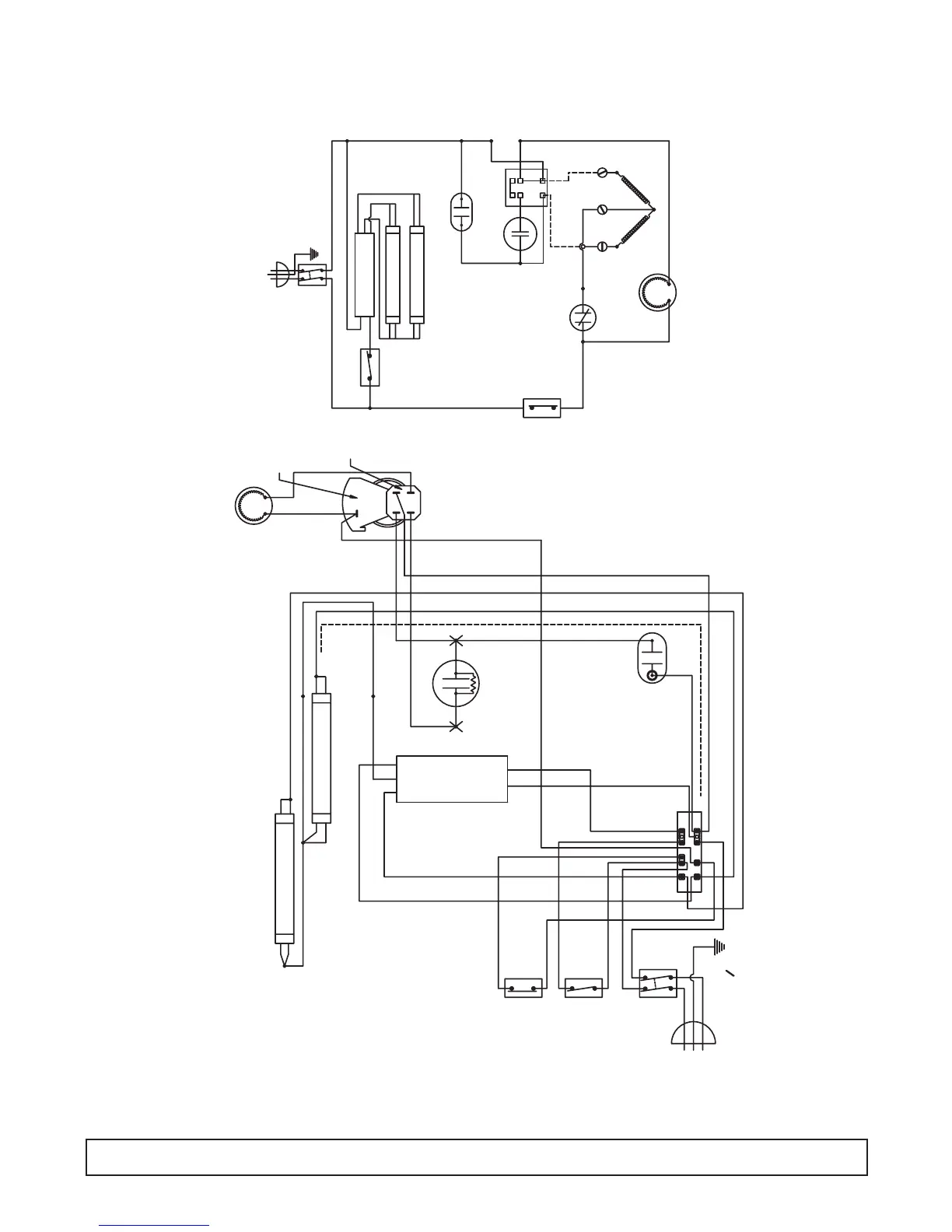

WIRING DIAGRAM - 8HC, 12HC, 16HC WITH 3500K LIGHTS
WIRE DIAGRAM CKDC-47. 67 & 87 (3500K LIGHTS) 00-C-3020-00A
BLUE
BLUE
BLUE
BLUE
BLACK BLACK BLACK BLACK BLACK WHITE
BLACK
WHITE
BLACK
RED
BLUE BLUE
BLACK
WHITE
YELLOW
WHITE (EXTRA)
WHITE
BLACK
RED
BLACK
BLUE
BLACK
BLACK
6
5
4
3
2
1
LAMP
RUN CAP.
START CAP.
TERMINAL
115 VAC. 60 Hz.-10
SUPPLY
LIGHT
TEMP.
LAMP
BALLAST
BOARD
SWITCH
SWITCH
CONTROL
POWER SUPPLY
LAMP
BALLAST
CONTROL
SWITCH
TEMP.
LIGHT
PROTECTOR MOTOR
FAN MOTOR
S
C
R
COMPRESSOR
SWITCH SUPPLY
BLACK WHITE
L1
N
(BROWN)
(BLUE)
(L2)
LAMP
COMPRESSOR
TERMINAL BOX
(PTCR)
4
1
3
2
FAN MOTOR
MOTOR PROTECTOR
(PTCR)
START CAP.
RUN CAP.
4
3
1
2
