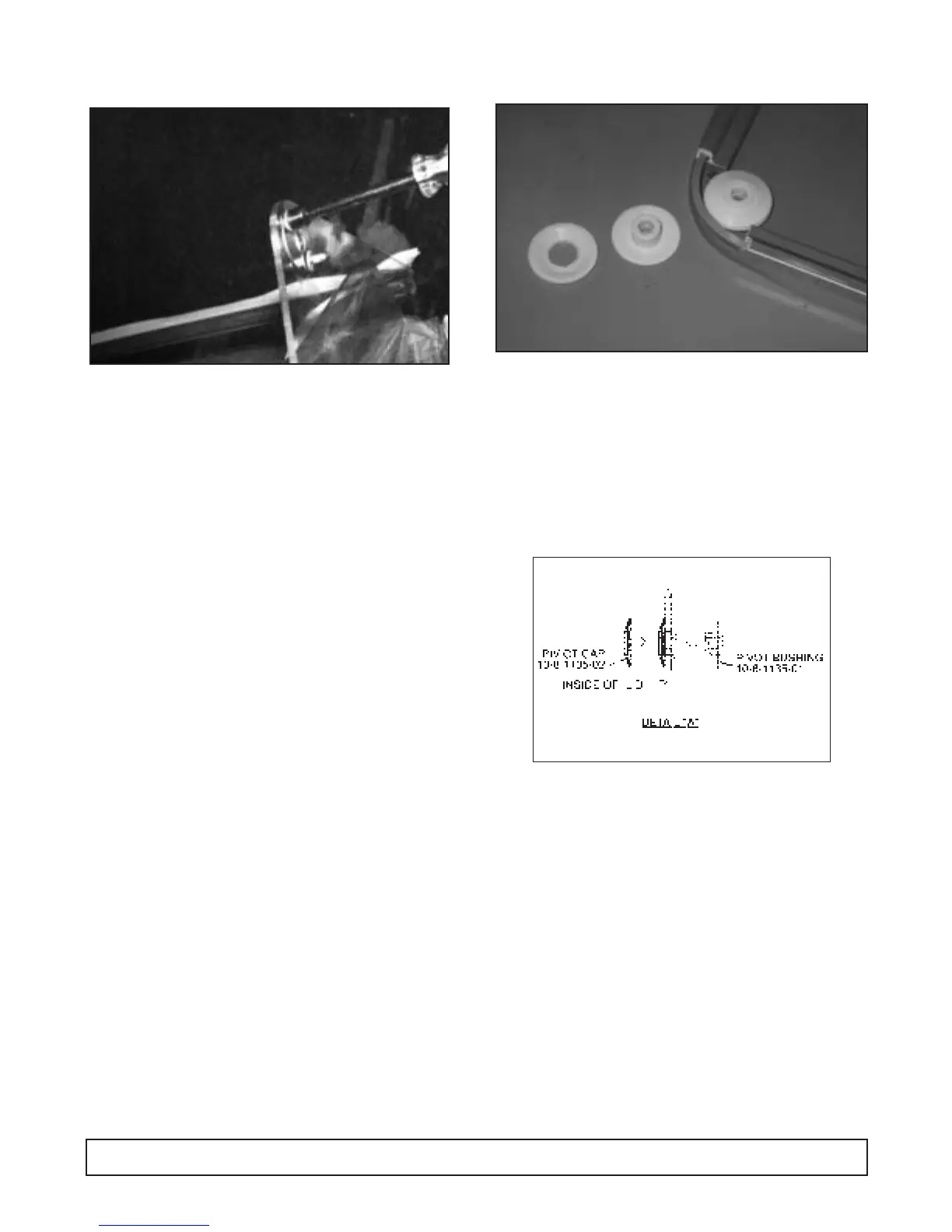

LID PIVOT BUSHING ASSEMBLY REPLACEMENT
Old Style
New Style
The pivot pin bushing is located on the outside edge of
each lid.
1. Remove the lid from the cabinet. Lay the lid on a
smooth, non-scratch surface.
2. Remove the two acorn nuts from the outside edge
of the lid assembly.
3. Remove the shake-proof washer, flat washer, pivot
bushing retainer, and pivot pin bushing.
4. Replace assembly with the correct new part number.
5. Replace the shake-proof washer, flat washer, pivot
bushing retainer, and pivot pin bushing.
6. Replace the two acorn nuts attaching the assembly
to the lid. Tighten nuts to 20" lbs. torque.
7. Replace the lid onto the cabinet.
Remove lid from cabinet. Lay the lid on a
smooth, non-scratch surface. Simply
unsnap lid pivot assembly and replace with
a new part.
Dipping Cabinet 1298.02 2/3/03 1:14 PM Page 40
38 MAINTENANCE & REPAIR
