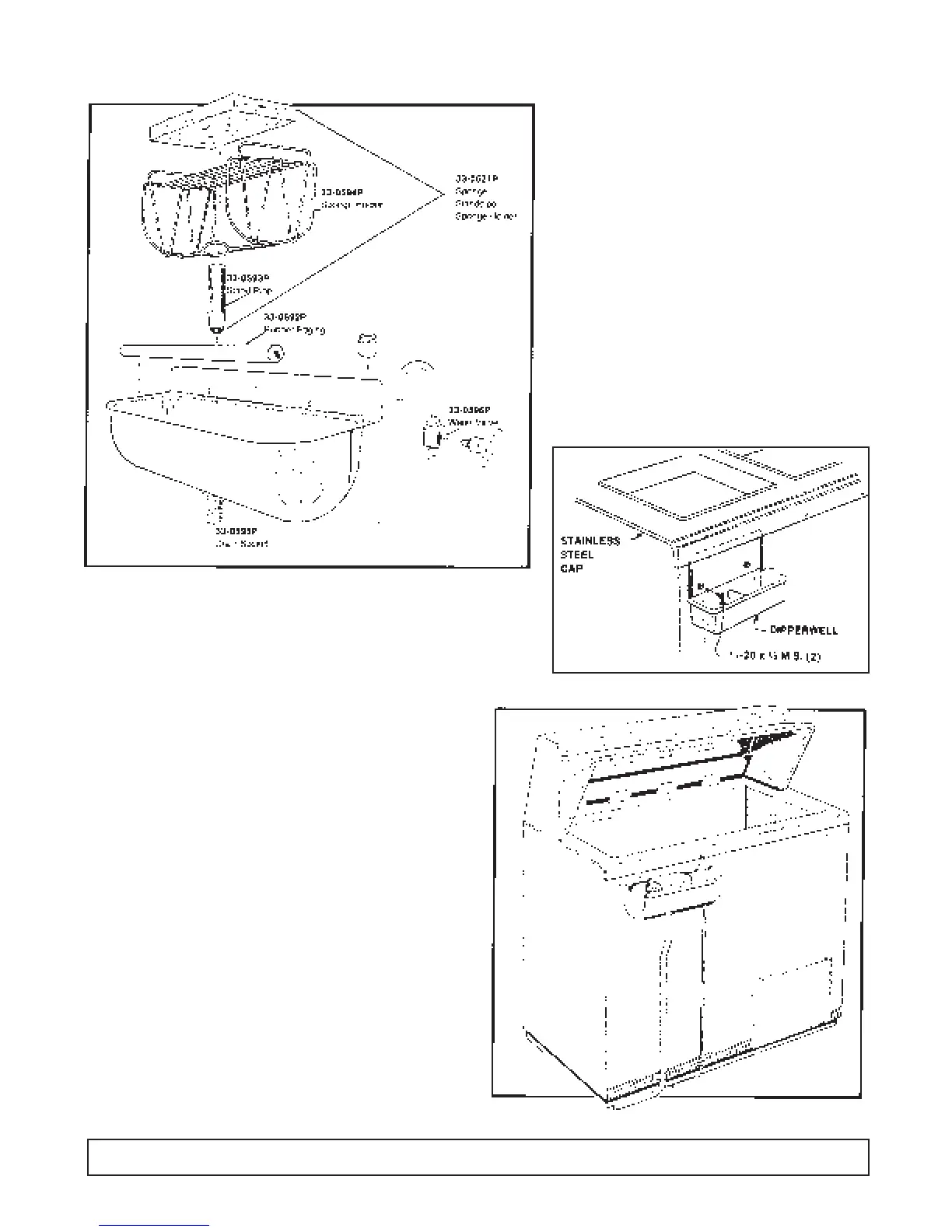

DIPPERWELL INSTALLATION INFORMATION - 7300000
70 ACCESSORIES
To install dipperwell:
1. Remove plastic hole tabs.
2. Mount dipperwell to cabinet using (2) 1/4-20 x 1/2 M.S.
3. Mounting plate must be under flange of stainless
steel cap.
4. Slide flange of dipperwell under stainless steel cap and
line up hole in dipperwell to hole provided in cabinet.
5. Secure dipperwell to cabinet with (2) 1/4-20 x 1/2 M.S.
NOTE: There are provisions for either
righthand or lefthand dipperwell positioning.
Dipping Cabinet 1298.02 2/3/03 1:15 PM Page 72
