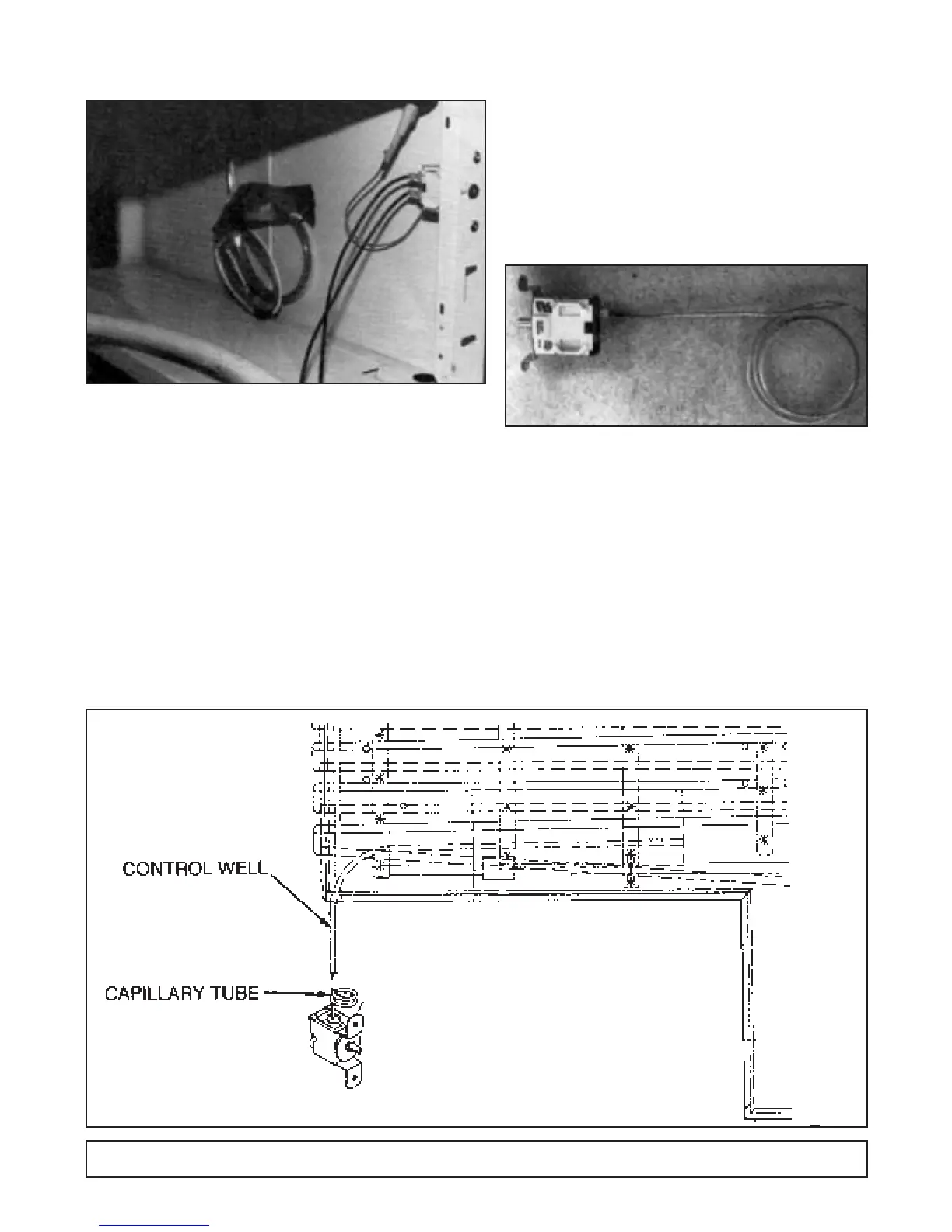

THERMOSTAT REPLACEMENT
42 MAINTENANCE & REPAIR
1. Disconnect the power to the cabinet.
2. Remove the grill.
3. Remove screws from the thermostat mount.
4. Pull the thermal bulb out of the cabinet.
5. Replace the thermostat with the correct new
part number.
6. Slide the capillary tube up the control well which
extends into the machinery compartment. (Be very
careful. Do not kink the thermal bulb capillary tube.)
7. Reattach the thermostat screws to mounting holes.
8. Replace the grill assembly.
9. Reconnect the power to the cabinet.
The thermostat is located on the server side of the
cabinet, directly behind the service grill. It functions
to control the temperature inside the cabinet. The
range on the thermostat dial is adjustable from 1 to
7 (7 being the coldest setting). The OFF position is
provided for defrosting the cabinet.
Dipping Cabinet 1298.02 2/3/03 1:14 PM Page 44
