FLUORESCENT BULB & STARTER REPLACEMENT
MAINTENANCE & REPAIR 41
BULB REPLACEMENT

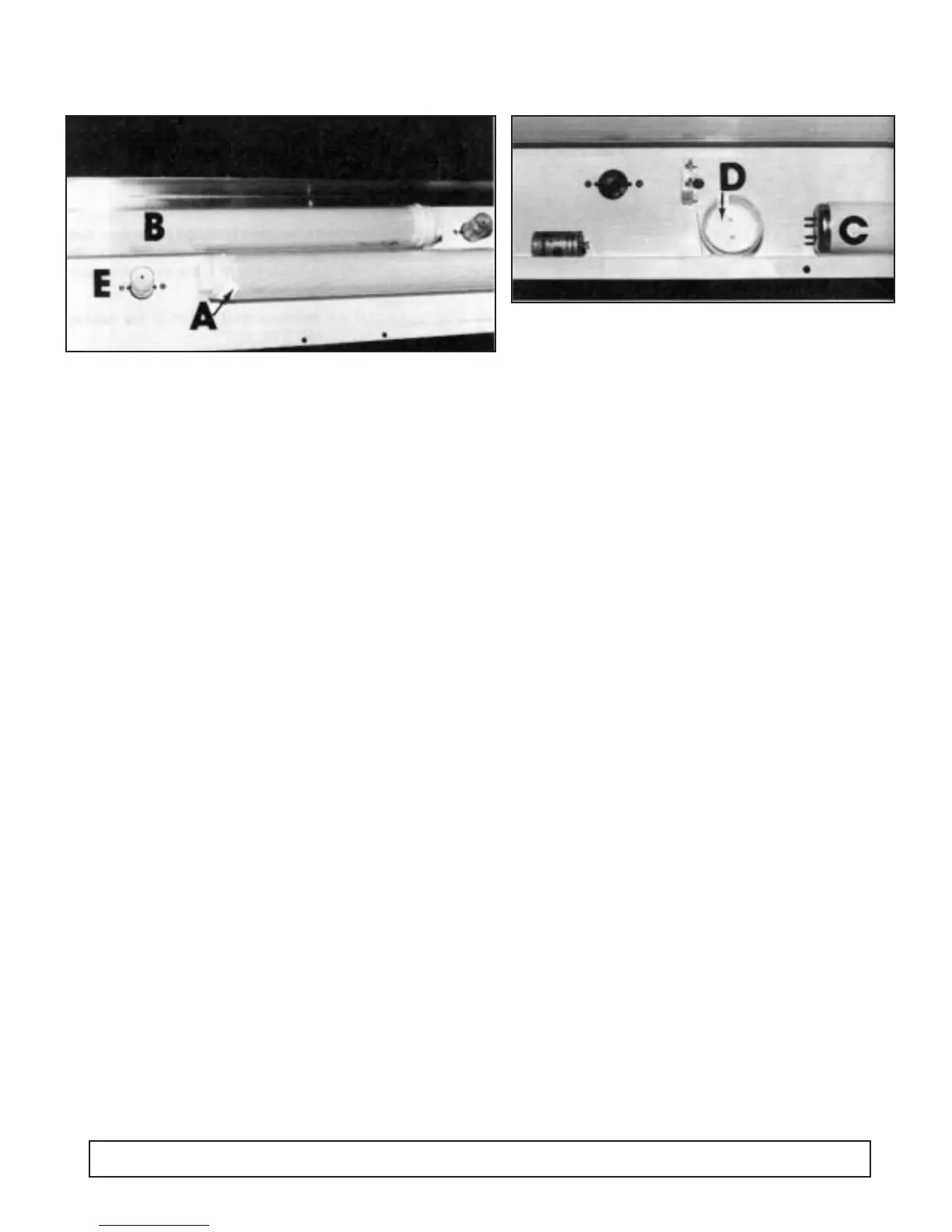

1. Turn light switch off on the cabinet.
2. Pull down on the socket (A).
3. Remove the plastic outer lamp shield (B) and
bulb (C).
4. Raise the bulb up. Pull out of the socket.
5. Remove lamp shields and end caps (D).
6. Place the new bulb in the shield. Attach
end caps.
7. Insert the bulb into the cabinet, push up an
snap into place.
8. Turn light switch back on.
BULB STARTER REPLACEMENT (The
fluorescent bulb starter is located on the lamp
channel assembly. One starter is necessary per
bulb.)
1. Turn light switch off on the cabinet.
2. Remove the lid from the cabinet.
3. Grasp the starter (E), push in.
Turn counterclockwise. Pull the starter out of the
lamp channel assembly (F).
4. Replace the starter with the correct new part
number.
5. Grasp the starter, push into contact holes. Turn
the starter clockwise to seat properly.
6. Turn light switch back on.
