CONDENSER FAN MOTOR REPLACEMENT
44 MAINTENANCE & REPAIR

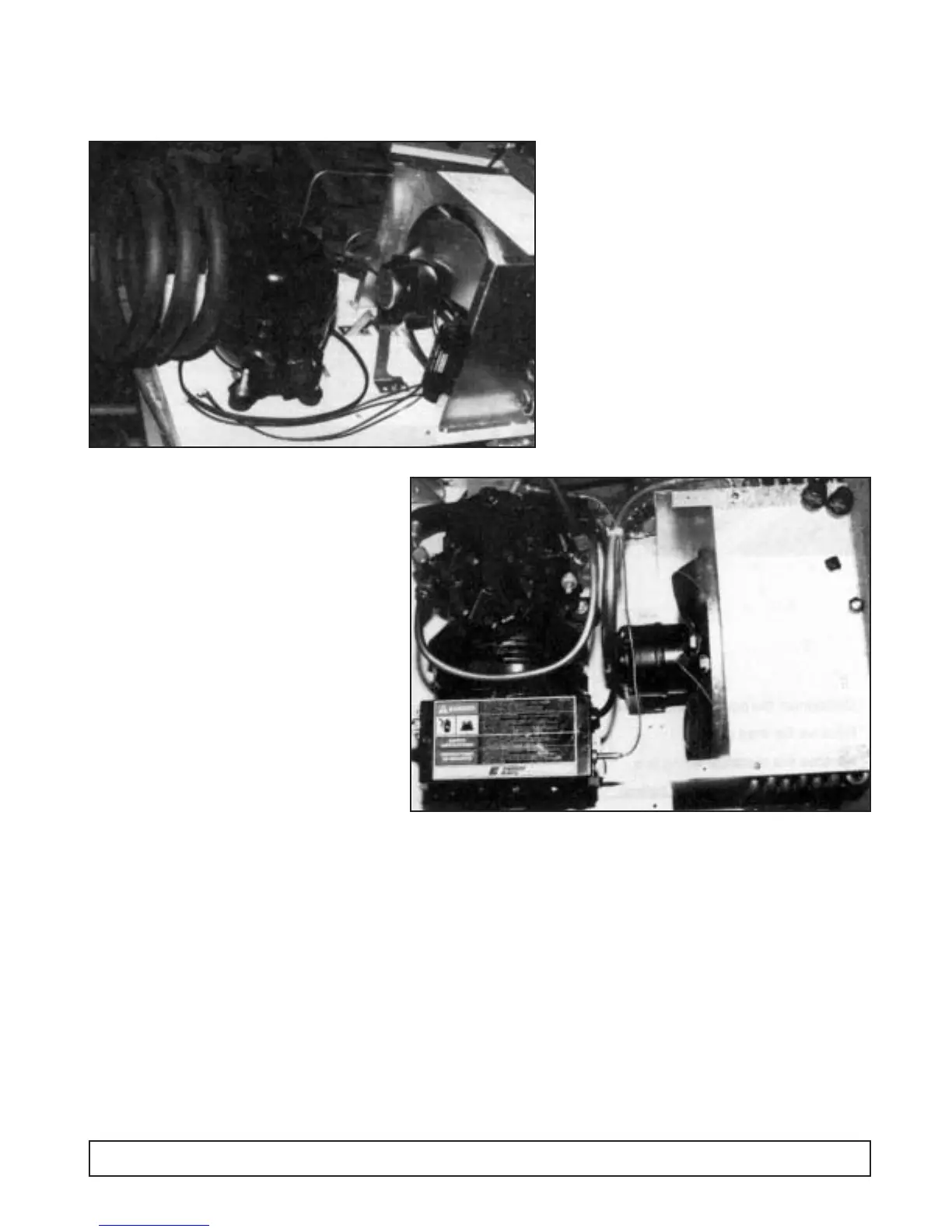

The condenser fan motor is located in the
machinery compartment, directly behind the
condenser coil.
Motor Specifications:
220 Volts
60 Hz.
1 Phase
9 Watt
1. Disconnect the power to the cabinet.
2. Remove the grill panel.
3. Remove the condensing tray hold
down bolts.
4. Pull the condenser tray out of the
cabinet. Disconnect the wire at the
compressor.
5. Remove the motor from the fan motor
mounting bracket.
6. Replace with correct motor.
7. Reconnect wires at the compressor.
8. Slide the tray back into the cabinet.
Replace hold down bolts.
9. Replace the front grill.
10. Reconnect the power to the cabinet.
