MASTER POWER SUPPLY SWITCH / LIGHT SWITCH REPLACEMENT
MAINTENANCE & REPAIR 43

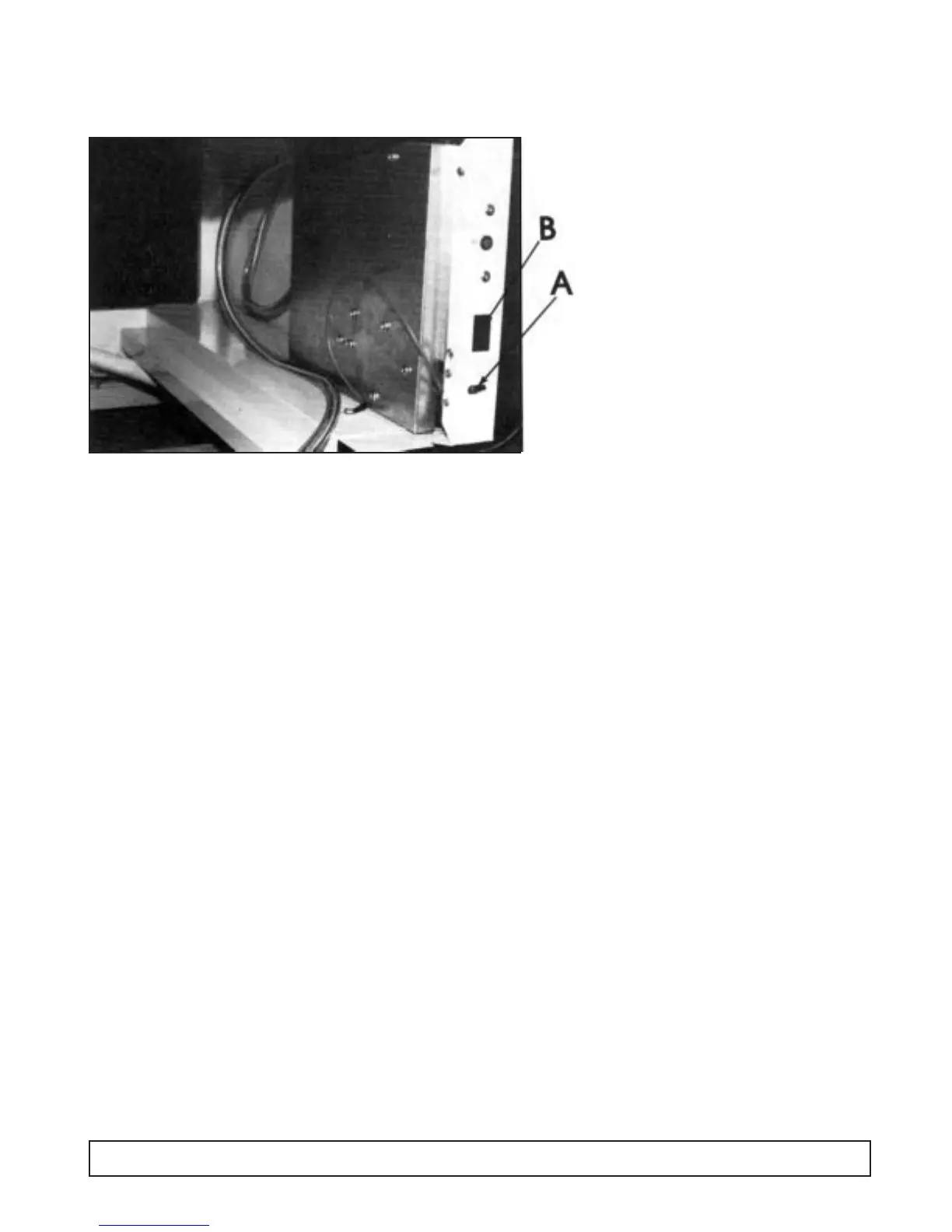

The master supply switch (A) and the light
switch (B) are located behind the grill panel, on
the righthand server side of the unit.
1. Disconnect the power to the cabinet.
2. Remove the grill.
3. Remove screws holding the switch in place.
4. Detach the switch leads.
5. Remove the lock nut on exterior of switch.
6. Replace with new switch.
7. Reattach the electrical leads.
8. Replace the front grill.
9. Reconnect the power to the cabinet.
Dipping Cabinet 1298.02 2/3/03 1:15 PM Page 45
