HALF-WAY SHELF BOTTOM SUPPORT KIT
76 ACCESSORIES

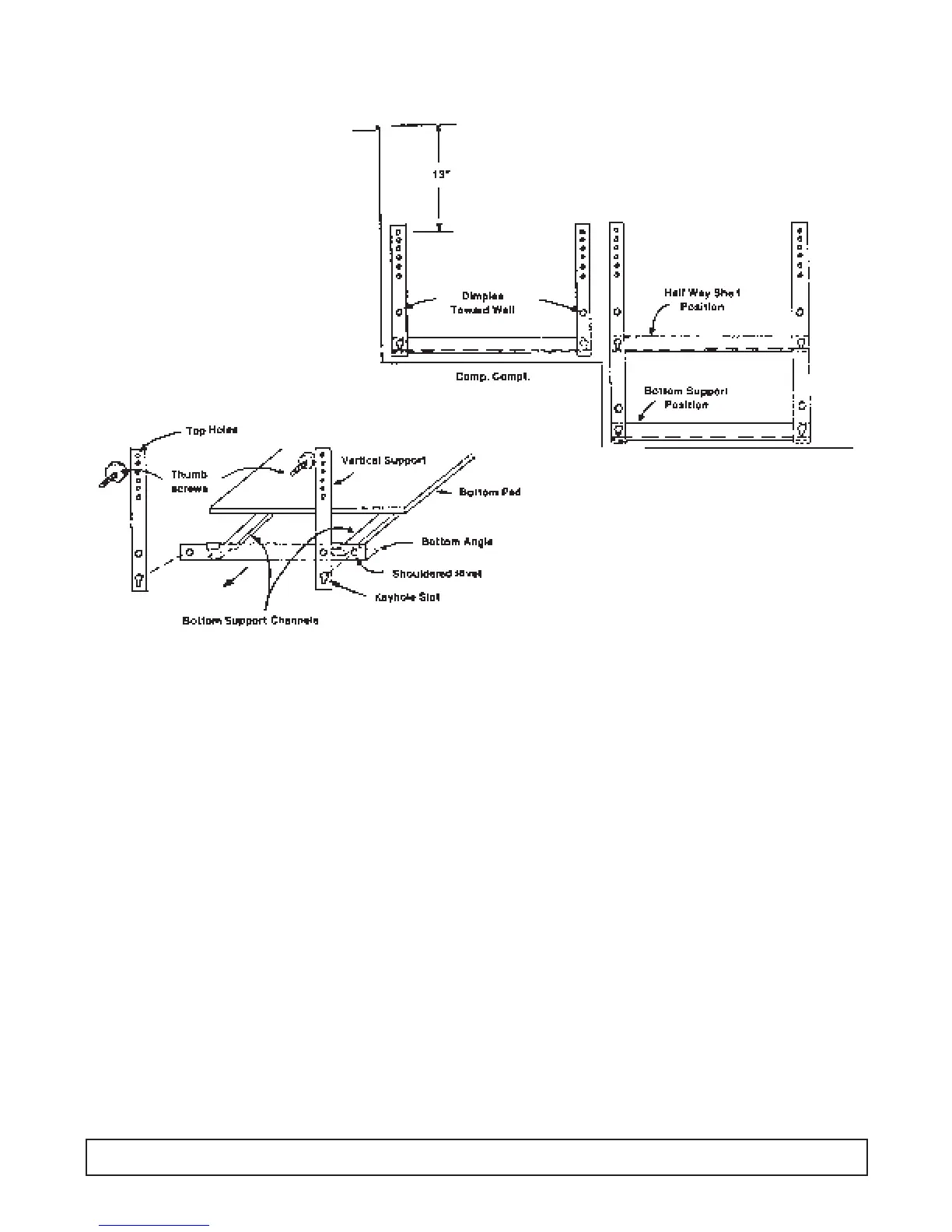

1. Assemble vertical supports to cabinet with thumbscrews through
top hole of support onto rivnuts in liner. The dimple formed in
each support should be towards the wall. The four (4) short
supports go over the unit compartment.
2. Engage the shouldered rivets in each bottom angle in the
keyhole slots of two vertical supports as illustrated, note that in
the deep section you have a choice of two locations. For cans
one row deep, use top keyhole slot. For cans two deep, use
lower keyhole slot.
3. Hook bottom support channels over bottom angle between
verticle supports.
4. Set bottom pads on angles and load product.
5. To raise product - move supports up to position on 2nd through
6th hole.
