CENTER/END PIVOT ROD REPLACEMENT
MAINTENANCE & REPAIR

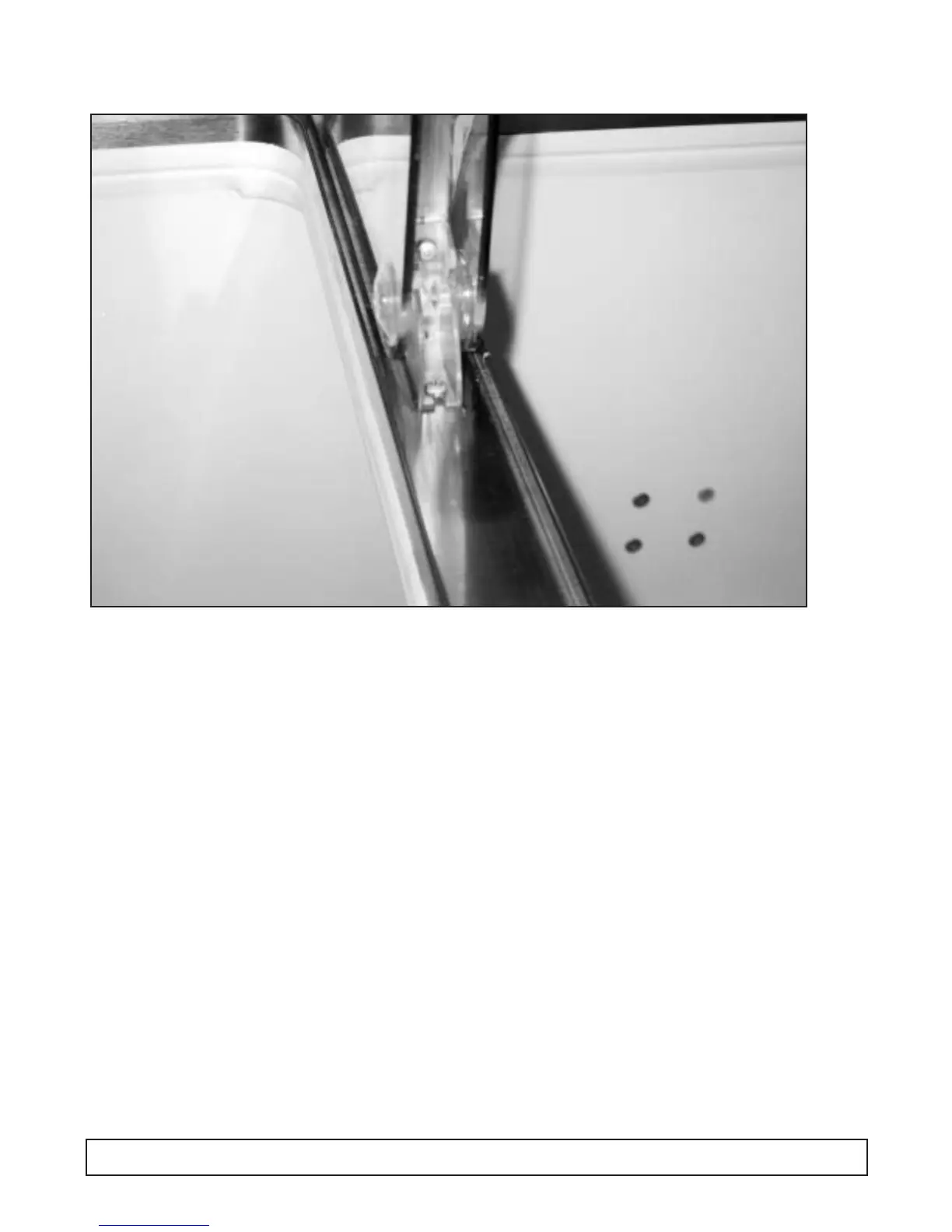

Remove lids from the cabinet.
Remove 2 mounting screws from the mounting bracket.
Replace the pivot bracket with correct new part number.
Reinstall lid assembly.
The 4-hole and 8-hole dipping cabinets have end pivot pins only. The 12- and 16-hole
dipping cabinets have end and center pivot brackets.
