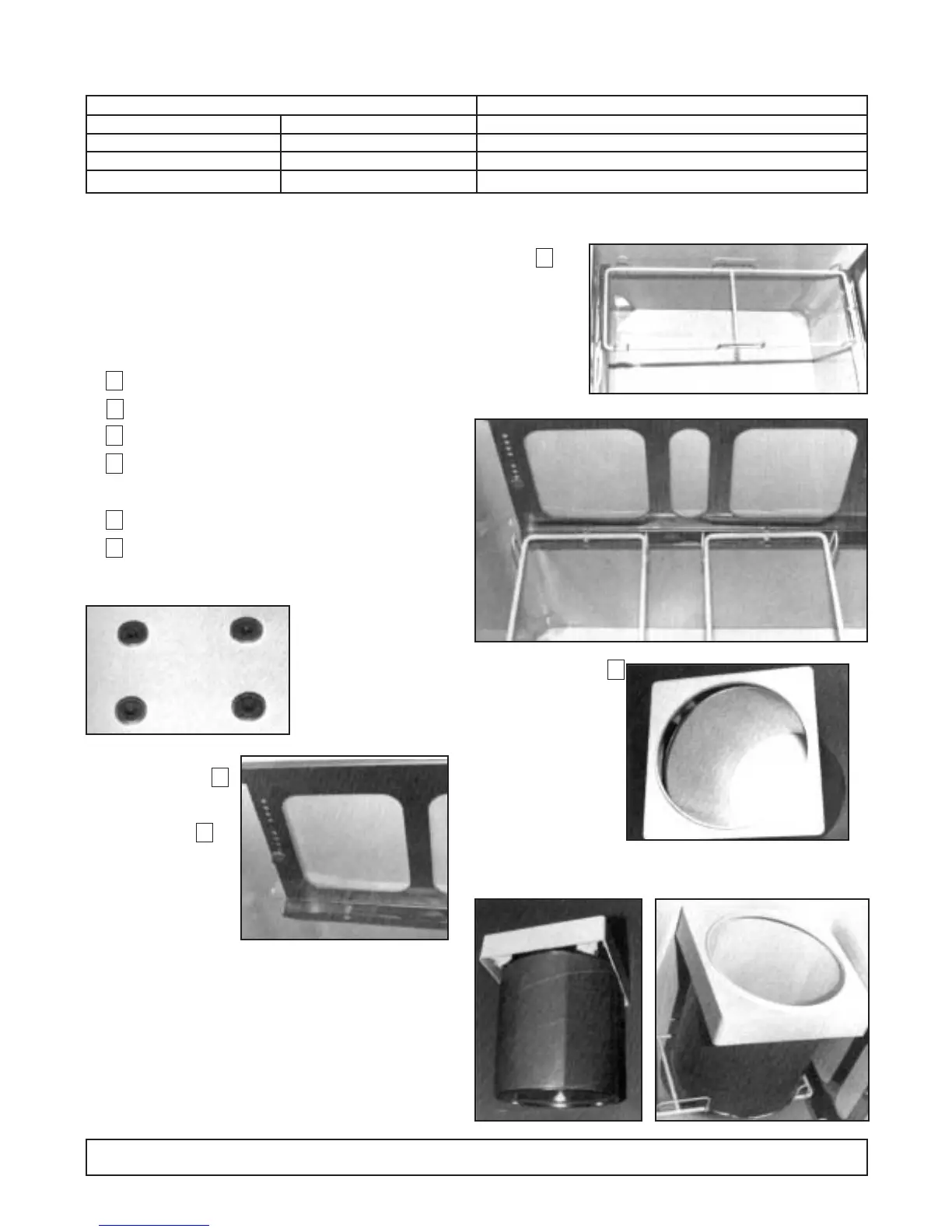

CAN SKIRT INSTALLATION INFORMATION
68 ACCESSORIES
ACCESSORY PART NUMBER CABINET MODEL NUMBER
52-1804-01 4-Hole CKDC27, CKDC27C, DL4C 4HC & 4HR
52-1804-02 8-Hole CKDC47, CKDC47C, DL8C 8HC & 8HR
(1) 52-1804-01 plus (1) 52-1804-2
12-Hole CKDC67, CKDC67C, DL12C 12HC & 12 HR
(2) 52-1804-01 plus (1) 52-1804-2
16-Hole CKDC87, CKDC87C, DL16C 16HC & 16HR
Each accessory assembly contains a complete set of can skirts & brackets for the size cabinet as indicated in the chart above.
1. Set cabinet into its serving location.
2. Remove all packaging material, clean interior.
3. Locate can skirt assembly cartons.
4. Open can skirt assembly cartons.
5. Sort parts by style.
ACan Skirt Ass’y w/Gripper ............50-3326-02
B Thumbscrew..................................22-1729-00
CCan Rack ......................................15-0296-00
D Support Bracket (Short) ................01-0930-00
Support Bracket (Long) ................01-0931-00
EProduct Spacer..............................05-1011-00
FProduct Spacer Angle....................05-1010-00
6. Clean all parts.
7. Remove plastic hole
covers in rivnut holes
inside cabinet tank.
Discard plastic hole
covers.
8. Attach can rack
support bracket D
to the inside wall
of the tank using
thumbscrews B
provided. One
thumbscrew is
necessary per
mount hole series.
Adjust height of
can rack support
bracket to desired dipping height. Can rack support
brackets attach to front and rear wall of inner tank.
9. Place can
racks C into
support
bracket.
Place ball of
can rack into
slot on the
support
bracket.
10. Place can skirt A
over the product
container. Slide
the product
container with can
skirt attached into
the can rack. Fill
the complete
cabinet with
product
containers.
Dipping Cabinet 1298.02 2/3/03 1:15 PM Page 70
