X5 FastMig
Operating manual - EN

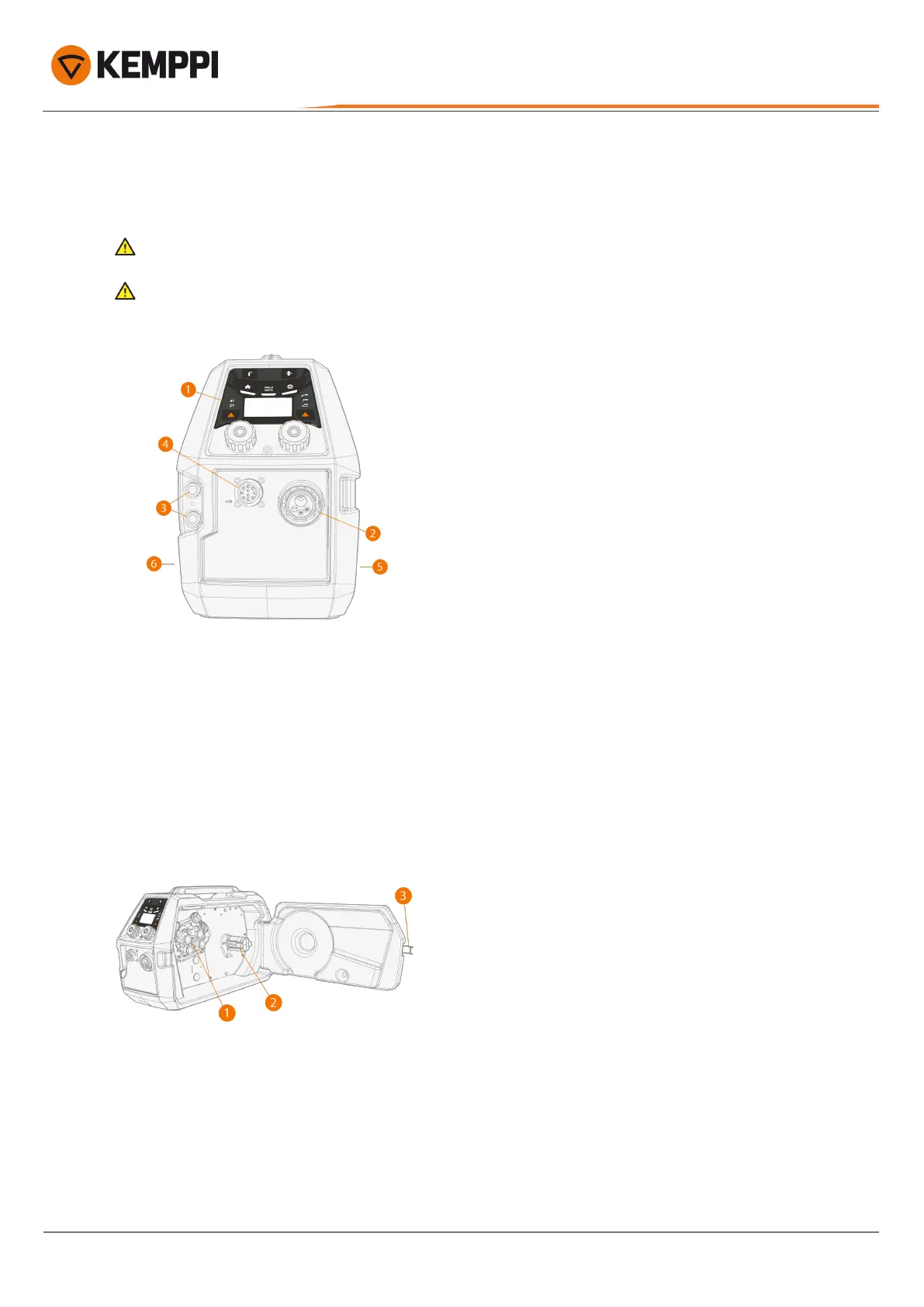

1.3 X5 Wire Feeder 200
This section describes the structure of the X5 Wire Feeder 200 Manual.
Keep the wire feeder covers closed during welding to reduce the risk of injury or an electric shock. Keep the covers
closed also at other times to keep the inside of the wire feeder clean.
The handle is intended for short distance manual carrying. Suspending the equipment temporarily from the handle
with slings (e.g. for moving) is allowed.
1. Control panel
>> For more information on the X5 Wire Feeder 200 Manual control panel, refer to "Manual control panel (X5 FP
200R)" on page13.
2. Euro connector for welding cable connection
3. Coolant inlet and outlet connectors (color-coded)
4. Control cable connector
5. Wire feed cabinet side
6. Interconnection cable cabinet side
Inside wire feeder (wire feed cabinet)
1. Wire feed roll mechanism
2. Wire spool hub
>> For more information on the wire spools, refer to "Wire spool and hub (200)" on the next page.
3. Wire feeder cabinet door latch
© Kemppi
10
1920960 / 2144
