X5 FastMig
Operating manual - EN

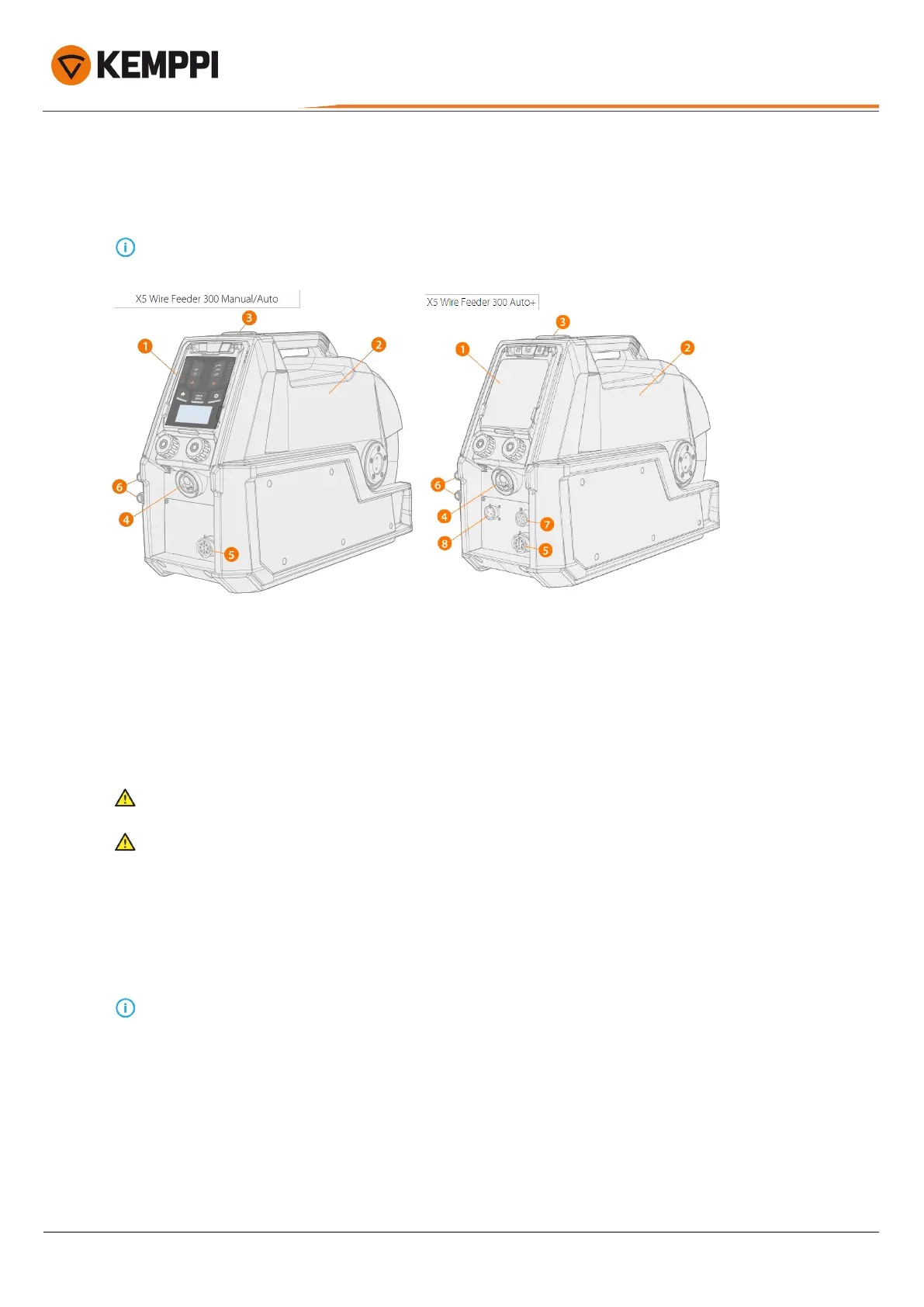

1.4 X5 Wire Feeder 300
This section describes the structure of the X5 Wire Feeder 300 Manual, 300 Auto and 300 Auto+.
Model-specific variations may occur.
1. Control panel (and hinged control panel cover)
>> For more information on the X5 Wire Feeder 300 Auto control panel, refer to "Auto control panel (X5 FP 300)"
on page18.
>> For more information on the X5 Wire Feeder 300 Manual control panel, refer to "Manual control panel (X5 FP
300R)" on page17.
2. Top cover
>> Wire feeder cabinet door
>> Handle
Keep the wire feeder top cover closed during welding to reduce the risk of injury or an electric shock. Keep the top
cover closed also at other times to keep the inside of the wire feeder clean.
The handle is intended for short distance manual carrying. Suspending the equipment temporarily from the handle
with slings (e.g. for moving) is allowed.
3. Top cover latch
4. Euro connector for welding cable connection
5. Control cable connector
6. Coolant inlet and outlet connectors (color-coded)
7. X5 Wire Feeder 300 Auto+ : Subfeeder synchronization connector
8. X5 Wire Feeder 300 Auto+ : Voltage sensing cable connector
Refer to "Auto control panel: System settings" on page90 for the full list of supported subfeeders.
© Kemppi
14
1920960 / 2144
