7. X5 Wire Feeder 300 Auto+ : Rotameter for gas
8. X5 Wire Feeder 300 Auto+ : Voltage sensing cable connector for interconnection cable
For installing and connecting the cables, refer to "X5 interconnection cable" on page19 and "Installing cables" on
page40.
Wire feeder fixing accessories
X5 Wire Feeder 300 can be installed on top of the X5 Power Source with the following optional fixing accessory sets:
• Fixed fixing plates and locking mechanism for one wire feeder
• Rotating plate with locking mechanism for one wire feeder
• Double rotating plate with two locking mechanisms for two wire feeders
• Rotating plate with counter-balance arm for one wire feeder.

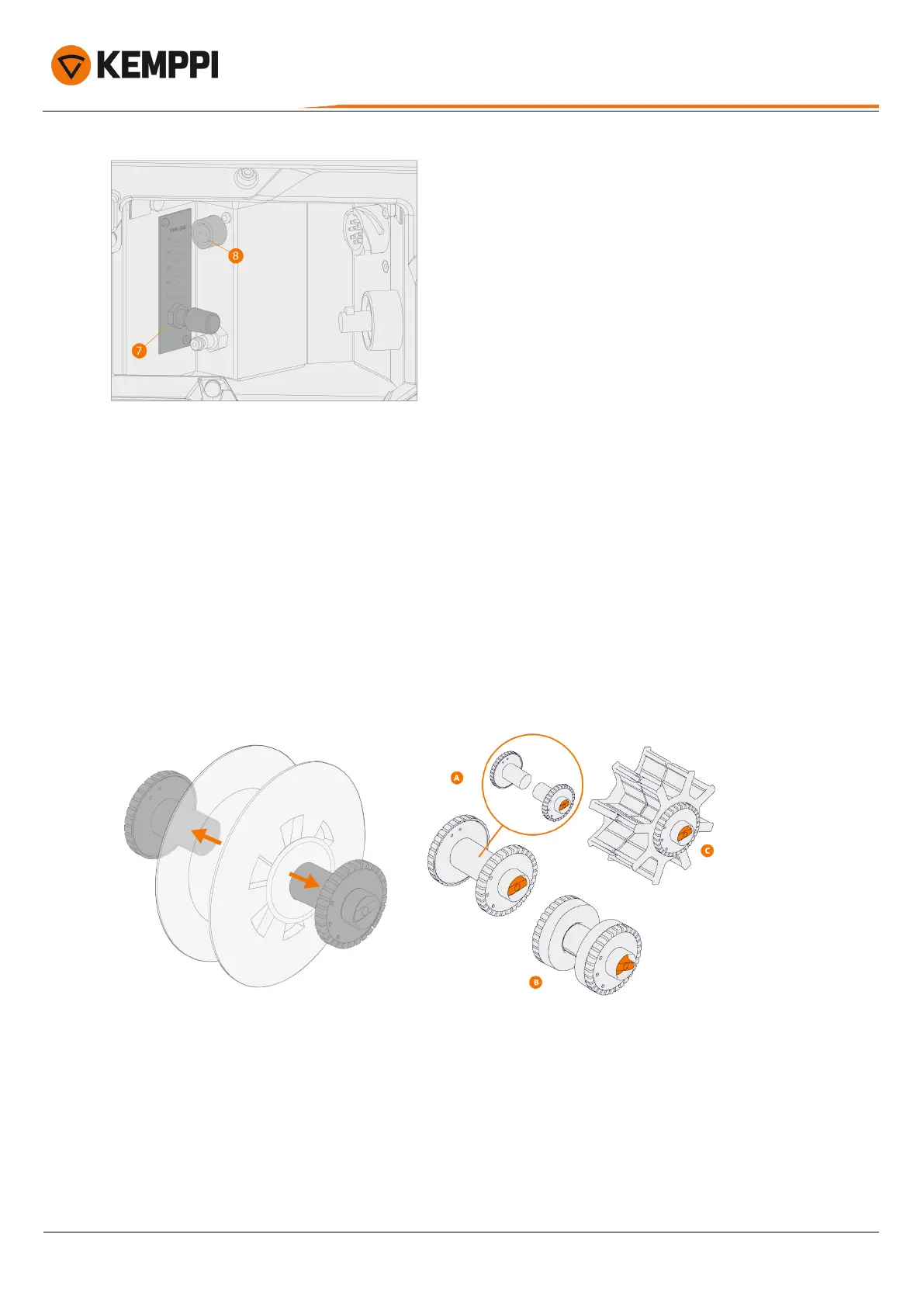

1.4.1 Wire spools and hubs (300)
X5 Wire Feeder 300 has three different wire spool hub options available for different wire spools:
• Standard spool (A)
• Spool hub for the small wire spool (B)
>> Attach the extension pieces to the standard spool halves.
• Spool hub for the wire spool with a large center hole (C)
All parts are delivered with the wire feeder.
Loosen and pull the spool hub halves apart to detach them.
