X5 FastMig
Operating manual - EN

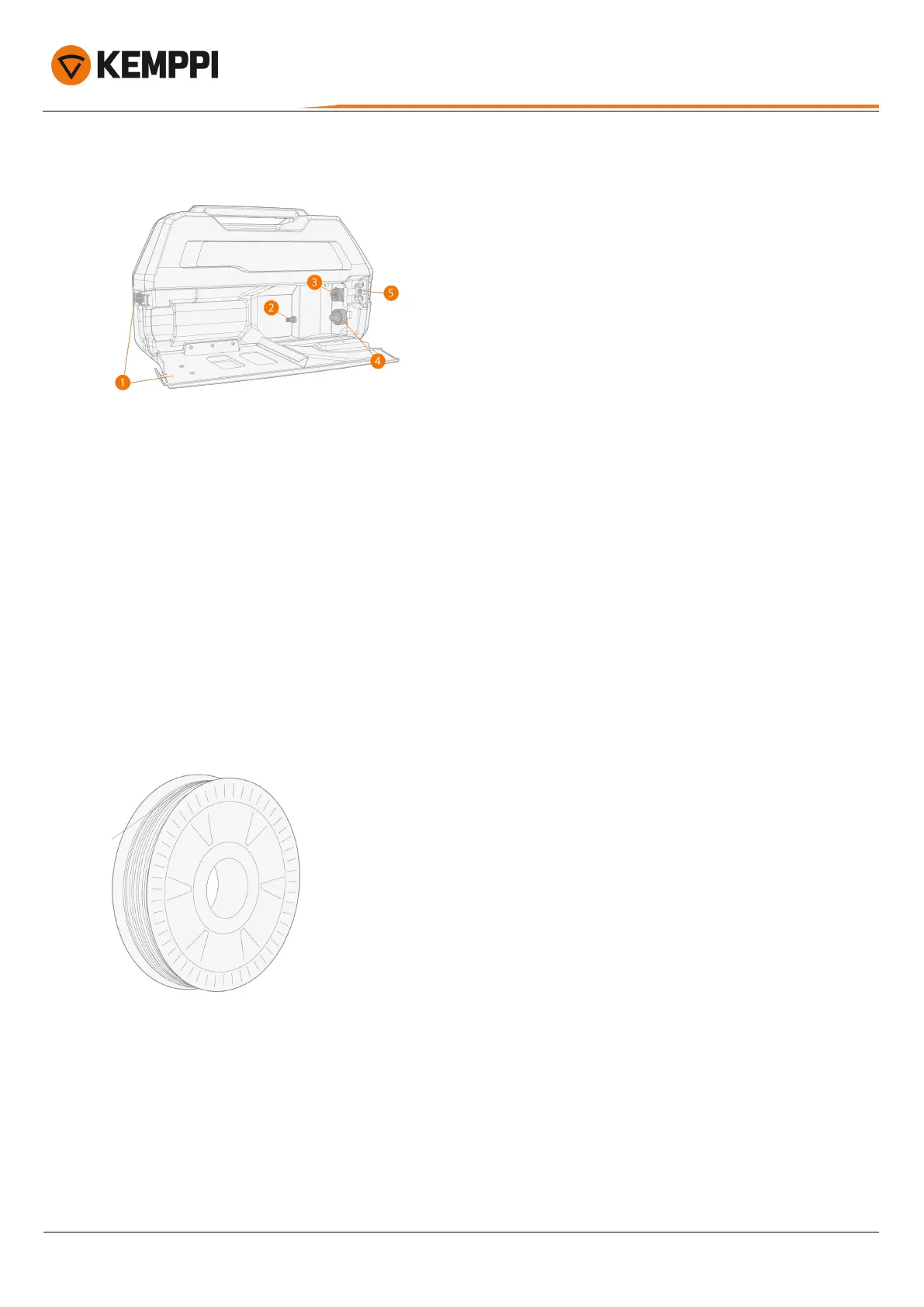

Inside wire feeder (interconnection cable cabinet)
1. Interconnection cable cabinet hatch and locking latch
>> The rear section of the hatch acts also as a strain relief for the cable
2. Shielding gas hose connector
3. Control cable connector
4. Welding current cable connector
5. Coolant hose mounting slot
For installing and connecting the cables, refer to "X5 interconnection cable" on page19 and "Installing cables" on
page40.
Wire feeder fixing accessories
X5 Wire Feeder 200 can be equipped with a steel pipe frame for additional protection and installation options. When the
steel pipe frame is used, X5 Wire Feeder 200 can also be installed on top of the X5 power sources using the same
optional fixing accessory sets than with the X5 Wire Feeder 300.
1.3.1 Wire spool and hub (200)
The wire spool can be released and removed by opening the lock and pushing the locking clips towards the center. The
locking clips are locked by turning the lock knob between the locking levers:
© Kemppi
11
1920960 / 2144
