X5 FastMig
Operating manual - EN
2.6 Installing wire feeder with lockable rotating plate
This section describes the installation of X5 Wire Feeder 300 (on top of the power source) with the lockable rotating
plate. Refer also to the installation instructions delivered with the rotating plate.
The installation of the wire feeder rotating plate and the wire feeder double rotating plate on top of the power
source is identical. However, for stacked installation, additional support is required. Read the installation notes here:
"Installation" on page22 and "Other optional accessories" on page68.
Tools needed:

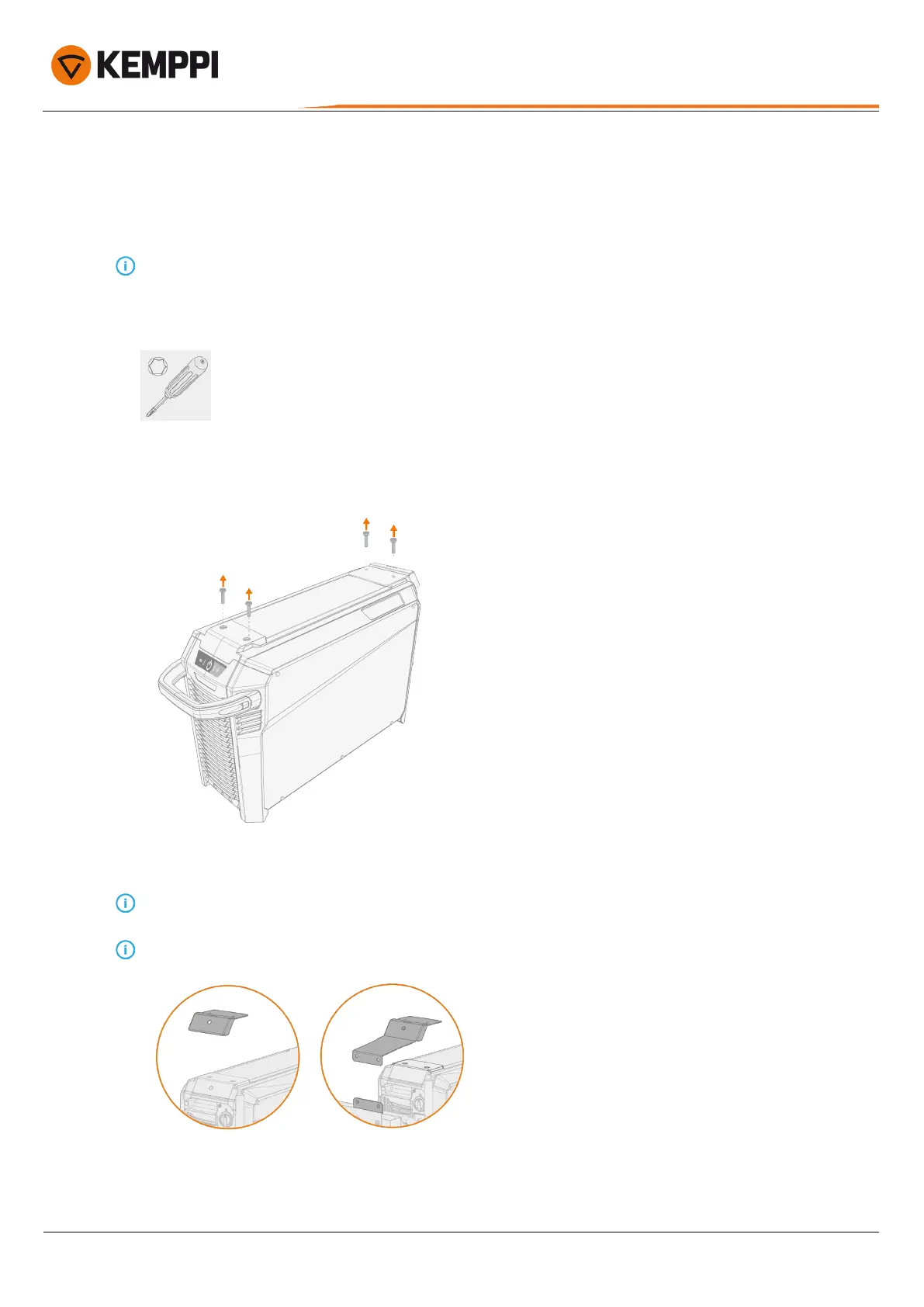

1. Temporarily remove the power source top cover screws.
2. Place the wire feeder rotating plate on top of the power source.
If the rear fixing plate was not yet installed at this stage, install it together with the rotating plate.
Depending on your X5 FastMig setup, two different rear fixing plate options are available. Both include an interface
for the interconnection cable strain relief mechanism, but the longer one acts also as a cart connection bracket.
© Kemppi
37
