X5 FastMig
Operating manual - EN

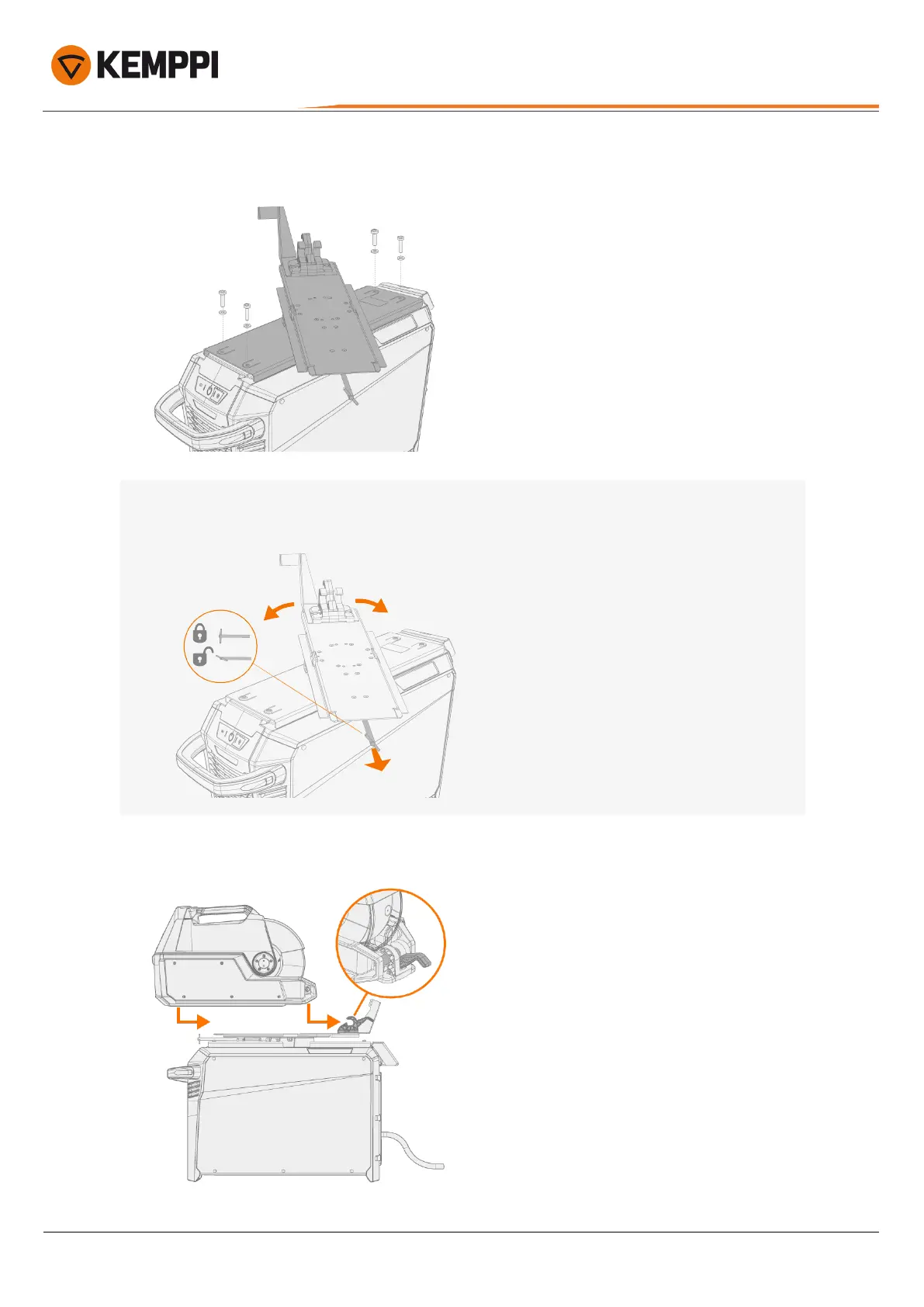

3. Secure the rotating plate in place (together with the rear fixing plate) using the power source top cover screws
(M6x30).
Tip: To gain access to the fixing holes in the lower plate, and to turn the rotating plate, pull the release lever
under the front edge of the wire feeder rotating plate and turn the top plate:
4. Slide the wire feeder from front to back until the bar in the back of the unit locks into the locking mechanism on the
rotating plate.
© Kemppi
38
1920960 / 2144
