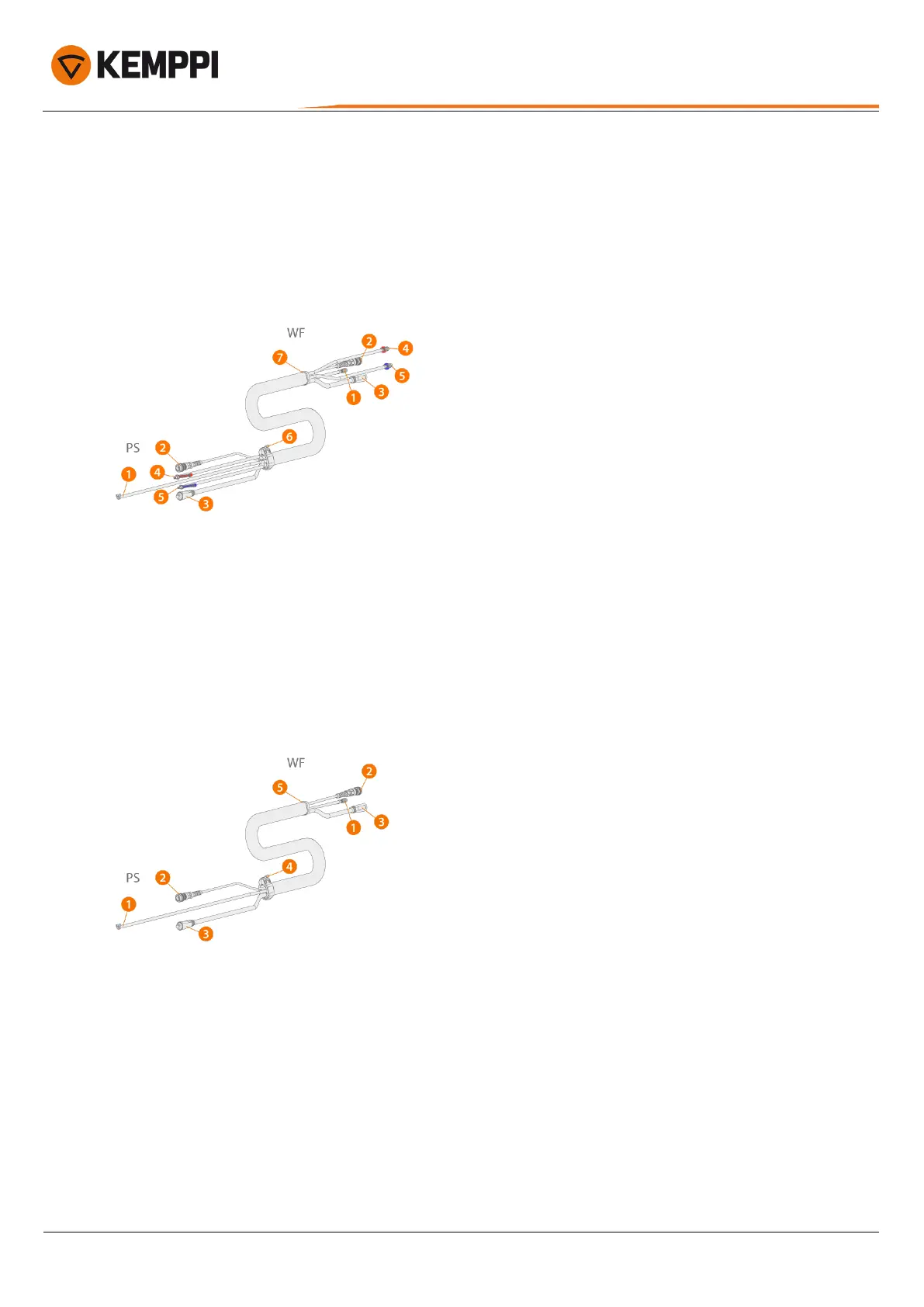

1.5 X5 interconnection cable
The X5 FastMig interconnection cables come in multiple different lengths and configurations to suit your equipment
setup.
For installing the interconnection cable, refer to "Installing cables" on page40.
With water-cooling
(PS = Power source end of the interconnection cable, WF = Wire feeder end of the interconnection cable.)
1. Shielding gas hose
2. Control cable
3. Welding current cable
4. Coolant hose (outlet/inlet, color-coded)
5. Coolant hose (outlet/inlet, color-coded)
6. Strain relief collar (at the power source end)
7. Strain relief block (at the wire weeder end).
Without water-cooling
(PS = Power source end of the interconnection cable, WF = Wire feeder end of the interconnection cable.)
1. Shielding gas hose
2. Control cable
3. Welding current cable
4. Strain relief collar (at the power source end)
5. Strain relief block (at the wire weeder end).
Adapter cable for double wire feeder installation
The adapter cable for a double wire feeder installation divides one interconnection cable for two wire feeders.
