X5 FastMig
Operating manual - EN

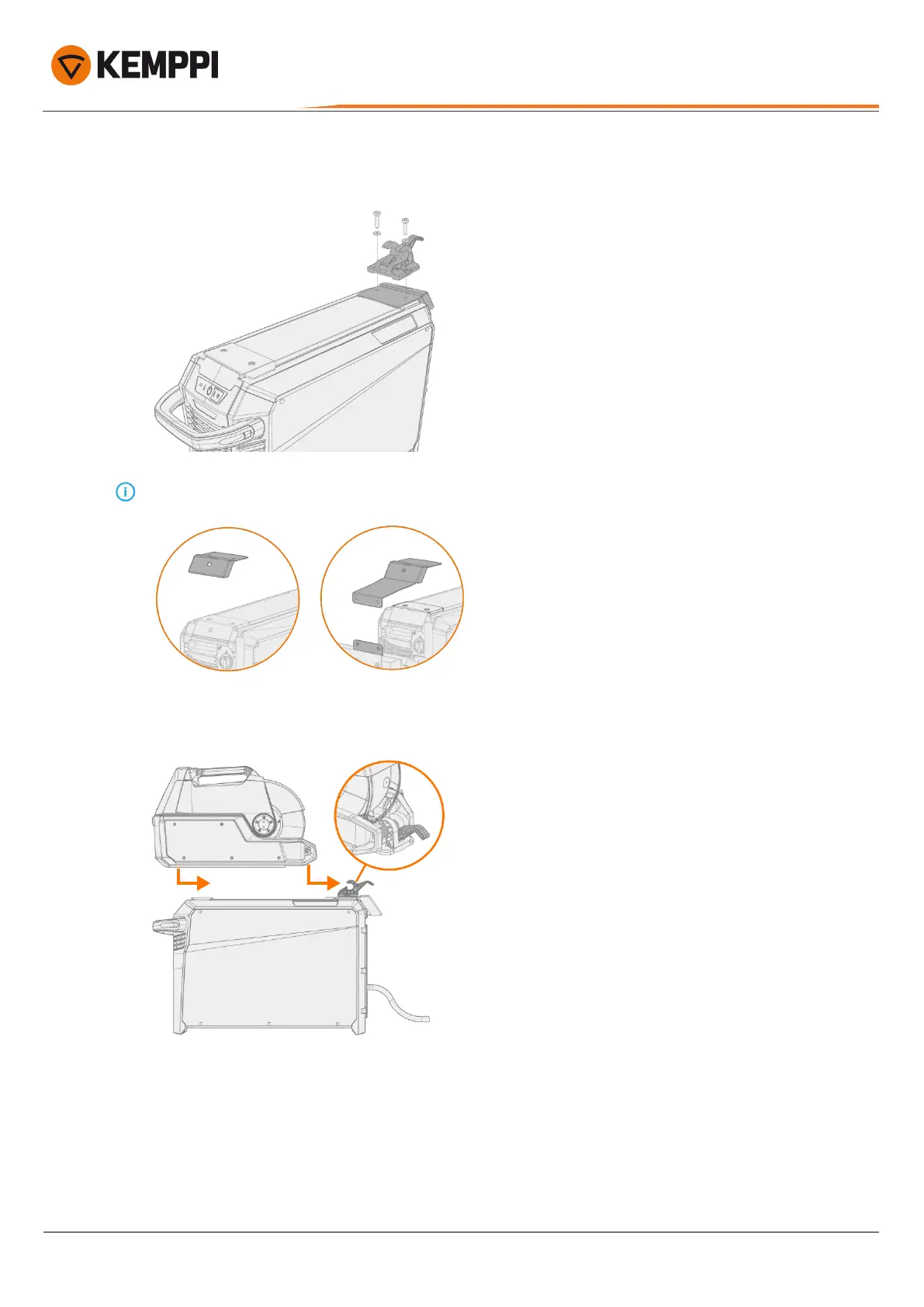

3. Place the rear fixing plate and the wire feeder locking mechanism on the power source. Secure them in place with
the two screws (M6x40) provided with the locking mechanism.
Depending on your X5 FastMig setup, two different rear fixing plate options are available. Both include an interface
for the interconnection cable strain relief mechanism, but the longer one acts also as a cart connection bracket.
4. Slide the wire feeder from front to back until the bar in the back locks into the locking mechanism on the power
source.
© Kemppi
32
1920960 / 2144
