X5
FastMig
Operating
manual
-
EN

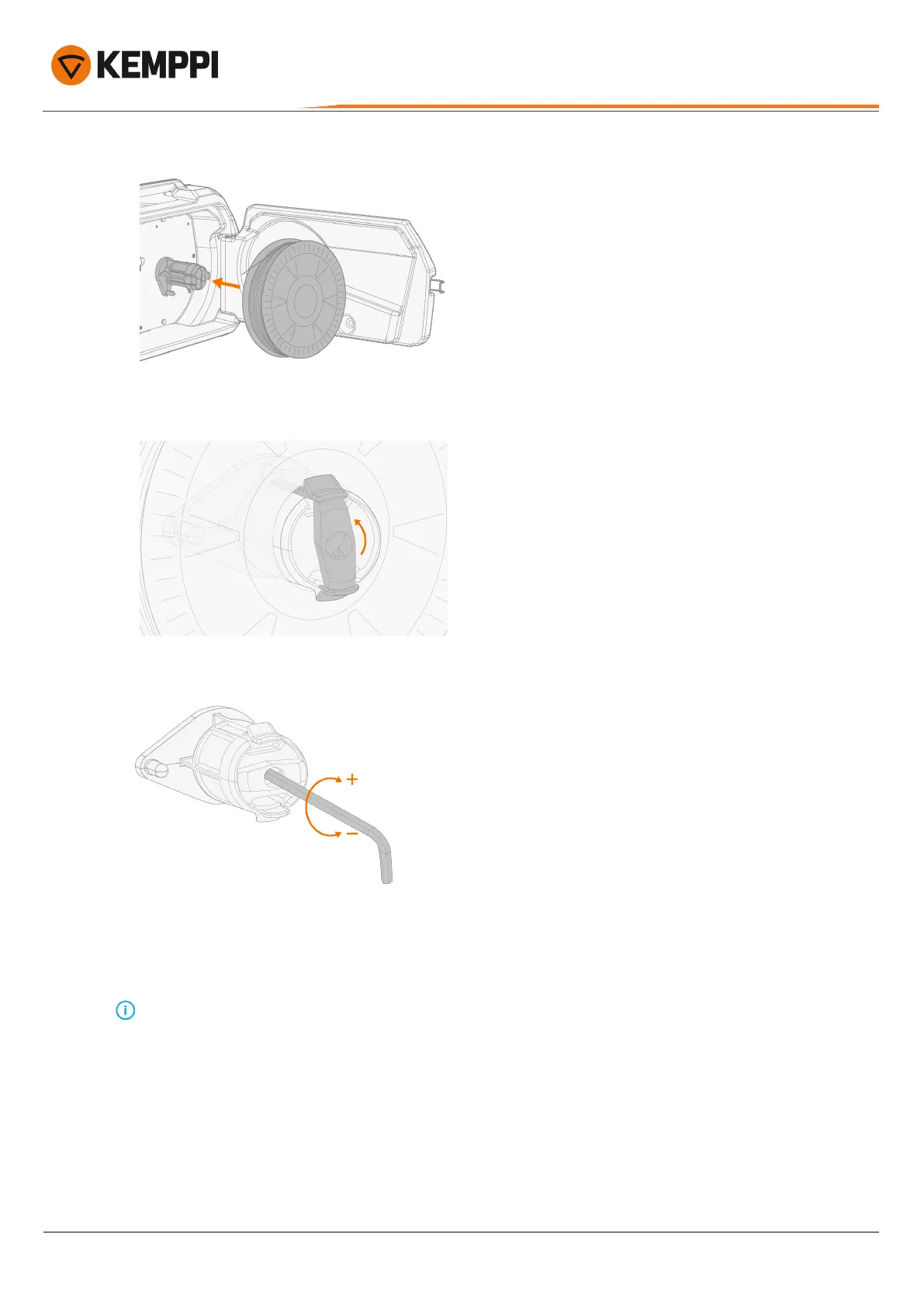

4.
Secure
the
wire
spool
in
place
by
turning
to
lock
knob
in
closed
position.
If
needed,
adjust
the
spool
brake
by
turning
the
screw
(with
Allen
key)
in
the
center
of
the
hub
locking
mechanism.
To
install
the
filler
wire:
1.
Release
the
filler
wire
end
from
the
spool
and
cut
off
any
deformed
section
so
that
the
end
is
straight.
Ensure
that
the
filler
wire
does
not
spill
from
the
spool
when
it
is
released.
©
Kemppi
49
1920960
/
2144
48
50
Table of Contents
Default Chapter
2
Table of Contents
2
1 General
4
Equipment Description
6
X5 Power Source 400 and
8
X5 Wire Feeder
10
Wire Spool and Hub
11
Wire Feed Mechanism
12
Manual Control Panel (X5 FP 200R)
13
X5 Wire Feeder
14
Wire Spools and Hubs
16
Wire Feed Mechanism
17
Manual Control Panel (X5 FP 300R)
17
Auto Control Panel (X5 FP 300)
18
X5 Interconnection Cable
19
X5 Cooling Unit (Optional)
21
2 Installation
22
Installing Power Source Mains Plug
24
Installing Cooling Unit (Optional)
25
Installing Equipment on Cart (Optional)
28
Installing Wire Feeder with Fixed Plate
31
Installing Wire Feeder with Standard Rotating Plate
34
Installing Wire Feeder with Lockable Rotating Plate
37
Installing Cables
40
Connecting Welding Gun
45
Installing Welding Gun Holder
45
Installing Remote Control
47
Installing and Changing Wire (X5 WF 200)
48
Installing and Changing Wire (X5 WF 300)
53
Installing and Replacing Feed Rolls
59
Installing and Replacing Wire Guide Tubes
63
Installing Gas Bottle and Testing Gas Flow
65
How to Get Welding Programs
67
Other Optional Accessories
68
3 Operation
71
Preparing Welding System for Use
72
Filling Cooler and Circulating Coolant
72
Calibrating Welding Cable
73
Using X5 Manual Control Panel
74
Manual Control Panel: Settings
75
Using X5 Auto Control Panel
80
Auto Control Panel: Home View
81
Auto Control Panel: Memory Channels
82
Auto Control Panel: Weld History
83
Auto Control Panel: Welding Parameters
84
Auto Control Panel: Info View
88
Auto Control Panel: Weld Data View
89
Auto Control Panel: System Settings
90
Auto Control Panel: Applying Welding Programs
92
Additional Guidance to Functions and Features
94
Trigger Logic Functions
94
Wisefusion
94
Wisepenetration
95
Wisesteel
95
Weldeye with DCM (Optional)
96
Using Remote Control
98
Lifting X5 Equipment
99
4 Maintenance
101
Daily Maintenance
102
Periodic Maintenance
103
Service Workshops
104
Troubleshooting
105
Error Codes
107
Installing and Cleaning Power Source Air Filter (Optional)
109
Disposal
111
5 Technical Data
112
X5 Power Sources
113
X5 Wire Feeders
117
X5 Cooling Unit
120
X5 Ordering Info
121
