OUTPut:ALARm:SLOPe {POSitive|NEGative}
OUTPut:ALARm:SLOPe?
Only supported on multiplexer modules (DAQM900A, DAQM901A, DAQM902A, and DAQM908A) and
DAQM907A multifunction module.

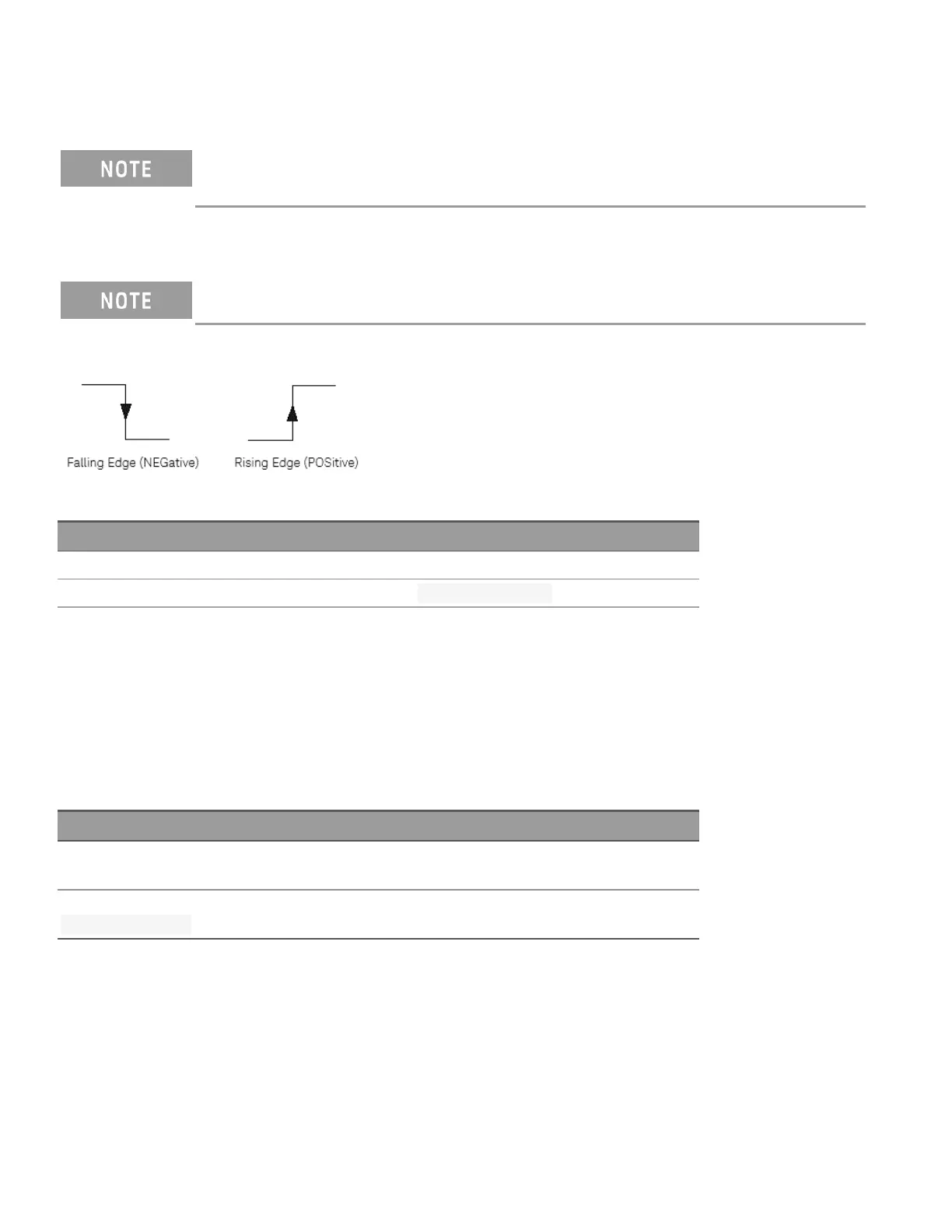

Configures the level for all four alarm output lines that indicates an alarm, either falling edge (NEG - 0 V), or rising
edge (POS - 3.3 V).
Changing the slope of the output lines may cause the lines to change state.
Parameter Typical return
{NEGative|POSitive}. Default: NEGative NEG or POS
Selects the positive/rising edge on all four alarm output lines: OUTP:ALAR:SLOP POS
– A Factory Reset (*RST command) resets the slope to the negative/falling edge.
OUTPut:TRIGger:SLOPe {POSitive|NEGative}
OUTPut:TRIGger:SLOPe?
Specifies the rising edge (POS) or falling edge (NEG) as the Channel Closed signal on the rear panel Ext Trig/Alarms
connector. The signal operates differently during internal or external scan.
Parameter Typical return
{POSitive | NEGative}
Default: NEGative
POSor NEG
Sets trigger slope to NEGative (falling edge):
OUTP:TRIG:SLOP NEG
– For internal scans (INSTrument:DMM ON command), it is generated at the END of a sweep, not the beginning of
a sweep.
– For external scans (INSTrument:DMM OFF command), it is generated when each channel is closed, and can be
used to trigger the measurement on the external DMM.
– A Factory Reset (*RST command) resets the slope to the negative/falling edge.
