Introduction
Overview

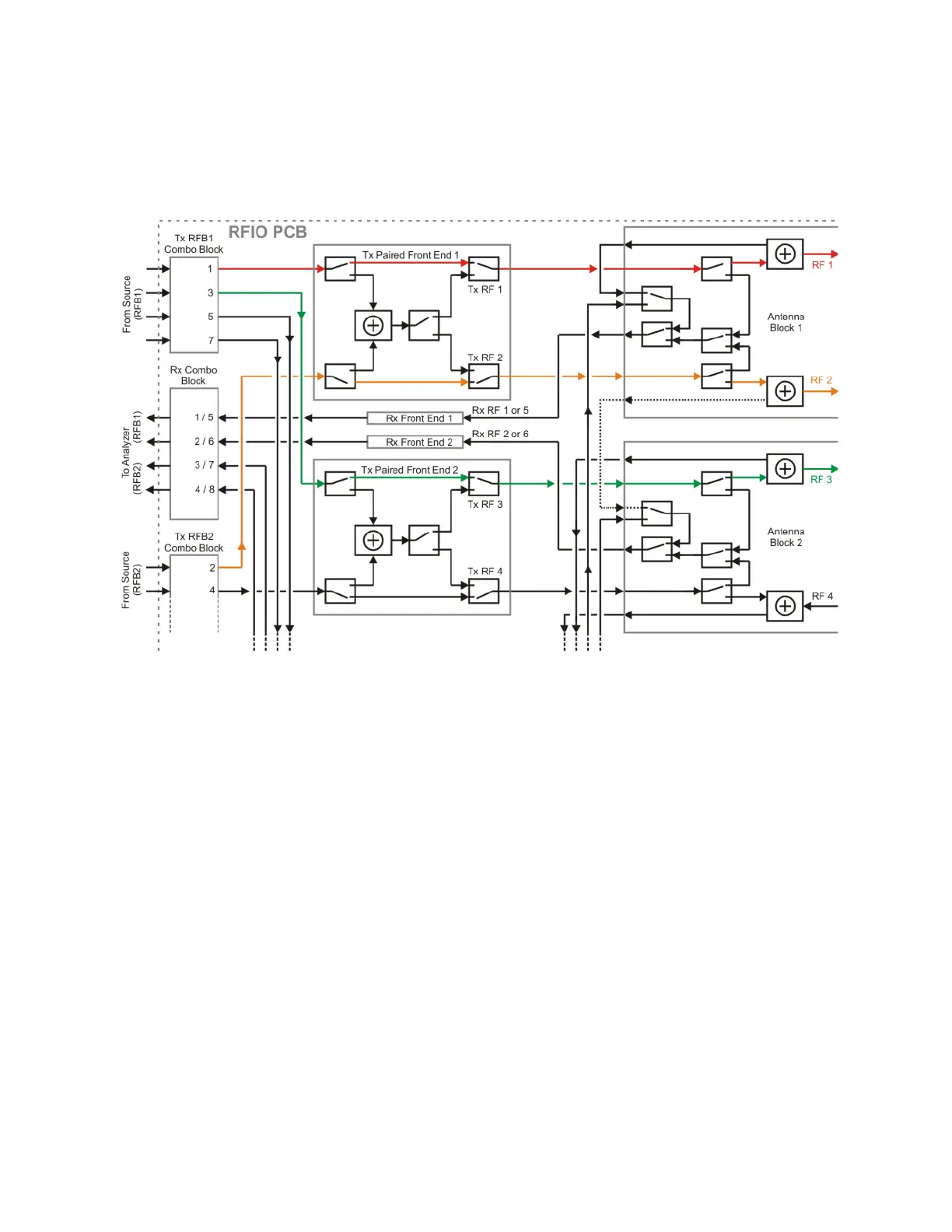

The diagram below shows how transmit signals are routed to the front panel
RF ports. In this example, ports RF 1, RF 2, and RF 3 are used.
Figure 1-4 Tx paths to the front panel RF ports
