90 Keysight PXIe Chassis Family User Guide
Configuring the PXI Trigger Bus Chassis Trigger Lines
You can also determine which version you have by looking at your SFP Trigger
Ports tab. If the tab looks like the tab shown in the following example for the
M9019A, you have version 0.
Notice that with version 0, when the front panel trigger port is set to Input, the
front panel trigger port can only connect to a single PXI_TRIG line on trigger bus
segment 2. Also, with version 0, when the front panel trigger port is set to
Output, the front panel trigger port can only source the trigger signal from a
single PXI_TRIG line on trigger bus segment 2.
For the M9010A, the front panel trigger ports connect to trigger bus segment 1.

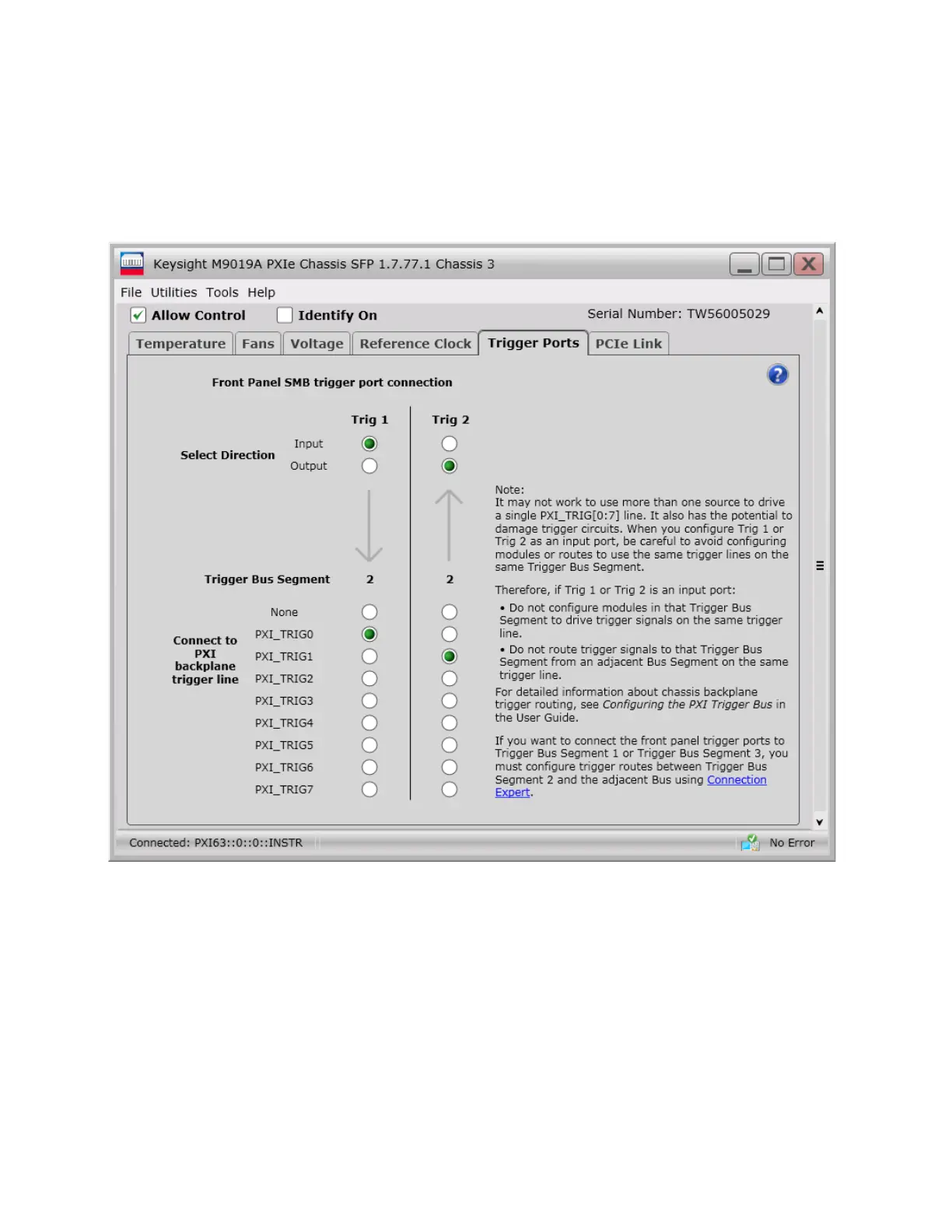

Figure 42 M9019A SFP Trigger Ports when using Trigger Bridge firmware version 0.
