Keysight PXIe Chassis Family User Guide 91
Chassis Trigger Lines Configuring the PXI Trigger Bus
If your SFP Trigger tab looks like the example shown in the following figure, you
have a later firmware version that provides the increased capability.
Notice that with the later version, when the front panel trigger port is set to
Input, the front panel trigger port can connect to any and all PXI_TRIG lines on
either trigger bus segments 2 or 3 (or both). Also, with the later version, when
the front panel trigger port is set to Output, the front panel trigger port can
source the trigger signal from a single PXI_TRIG line on either trigger bus
segment 2 or 3.
The above description applies to both the M9018B and the M9019A, but with the
M9010A trigger bus segments 1 and 2 are used, instead of trigger bus segments
2 and 3.

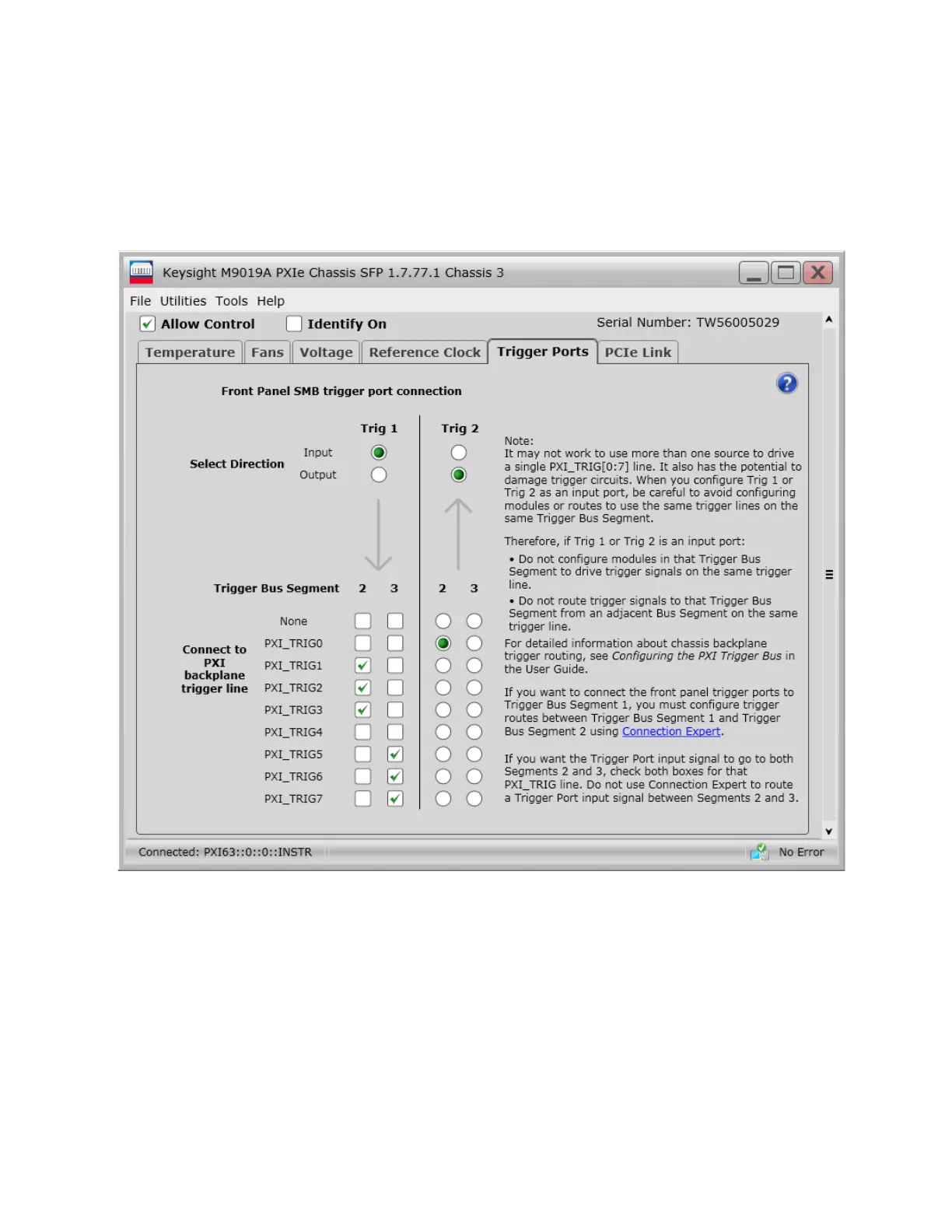

Figure 43 M9019A SFP Trigger Ports when using Trigger Bridge firmware after version 0.
