Chassis Trigger Lines Configuring the PXI Trigger Bus
The preceding figure shows Trig Port 1 as an Output from PXI_TRIG4 on Trigger
Bus Segment 1 and Trig Port 2 as an Input to multiple PXI_TRIG lines on both
Segment 1 and 2.

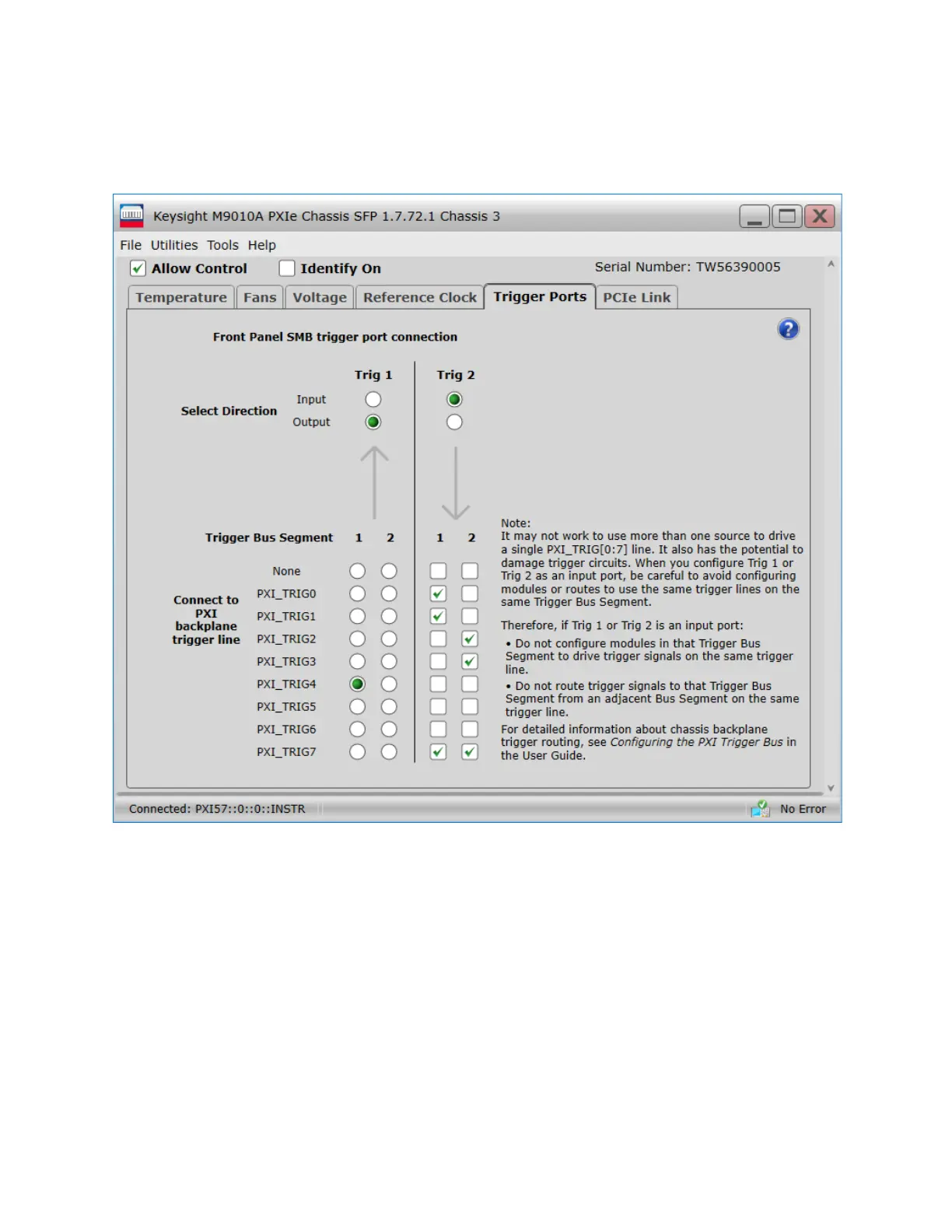

Figure 44 M9010A SFP example configuration of the front panel Trigger Ports.
