Keysight NFA Series Noise Figure Analyzers Service Guide 417
Assembly Replacement Procedures
RF Area (N8976B)
YTF Preselector
Removal
1. Refer to Figure 15-21. Remove cables W7 and W8 from the YTF
Preselector (1 ).

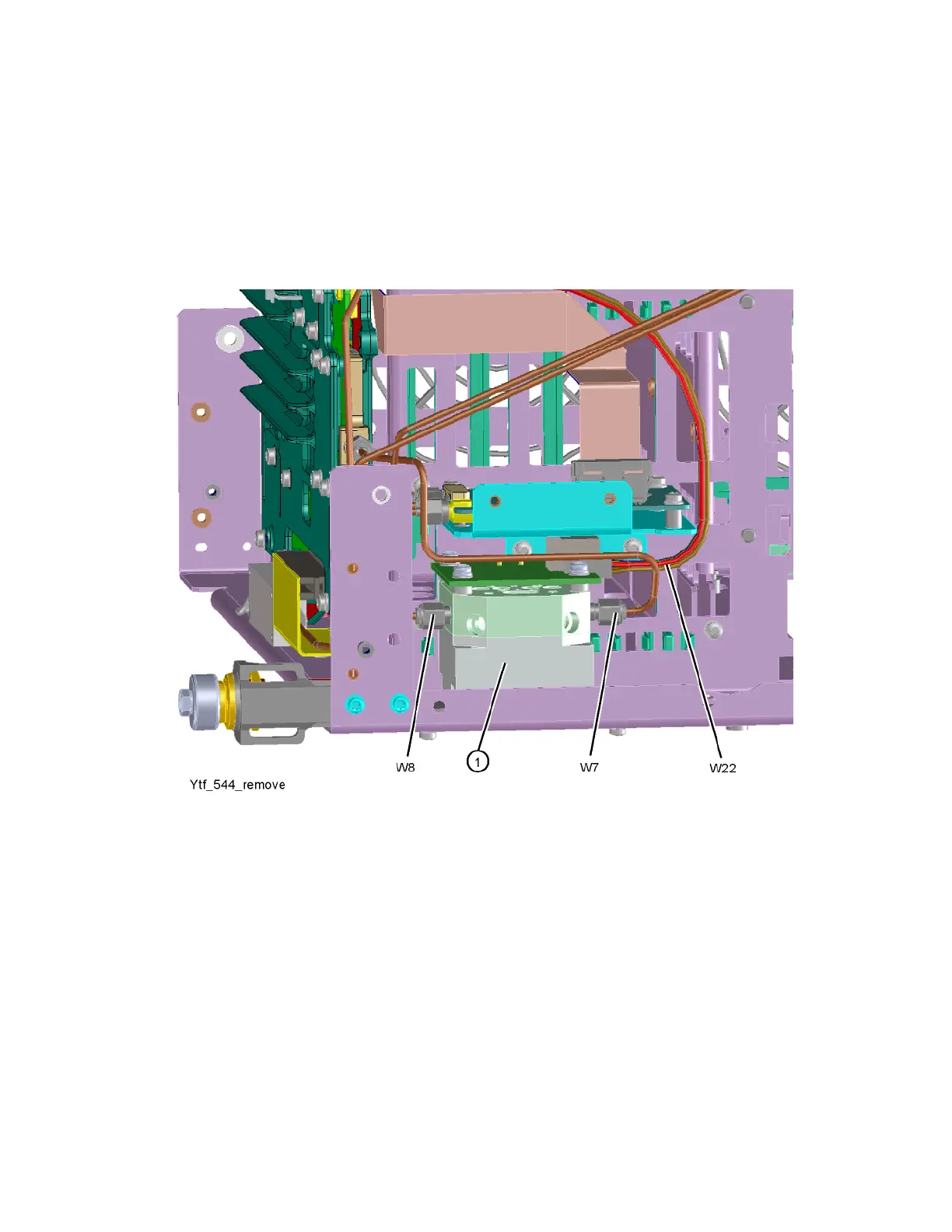

Figure 15-21 YTF Preselector Removal
2. Remove the wire harness W22.
