466 Keysight NFA Series Noise Figure Analyzers Service Guide
Assembly Replacement Procedures
Front Frame Assembly
Display Assembly
Removal

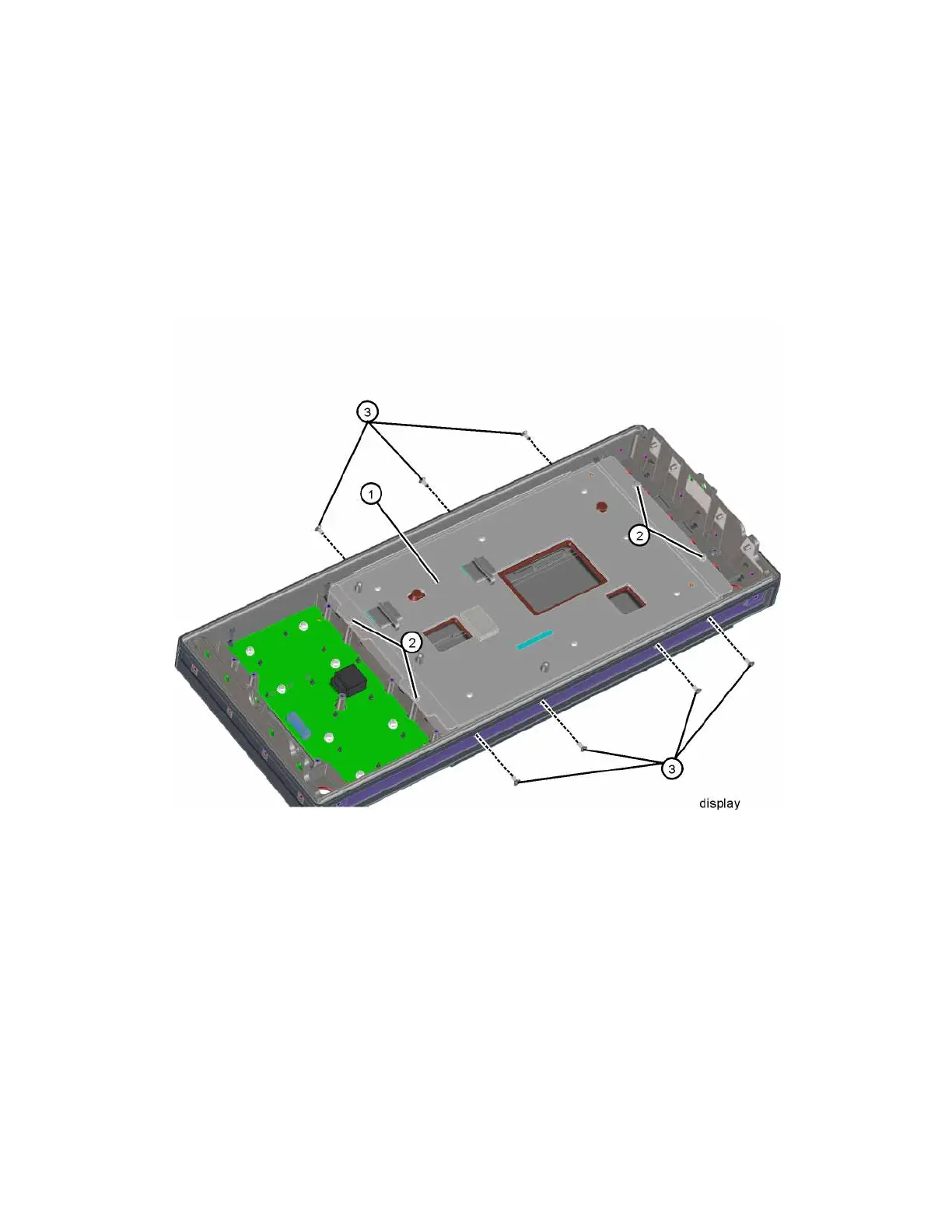

1. Refer to Figure 15-59. Remove the four screws (2) (0515-0372) and the
seven screws (3) (0515-1946). The display assembly (1) can now be
lifted out of the front frame. When replacing the display assembly in the
front frame, torque the screws to 9 inch-pounds.
Figure 15-59 Display Removal
