Keysight N8973B User Manual

510 Keysight NFA Series Noise Figure Analyzers Service Guide
Functional Tests
Frequency Response (Flatness), Preamp On

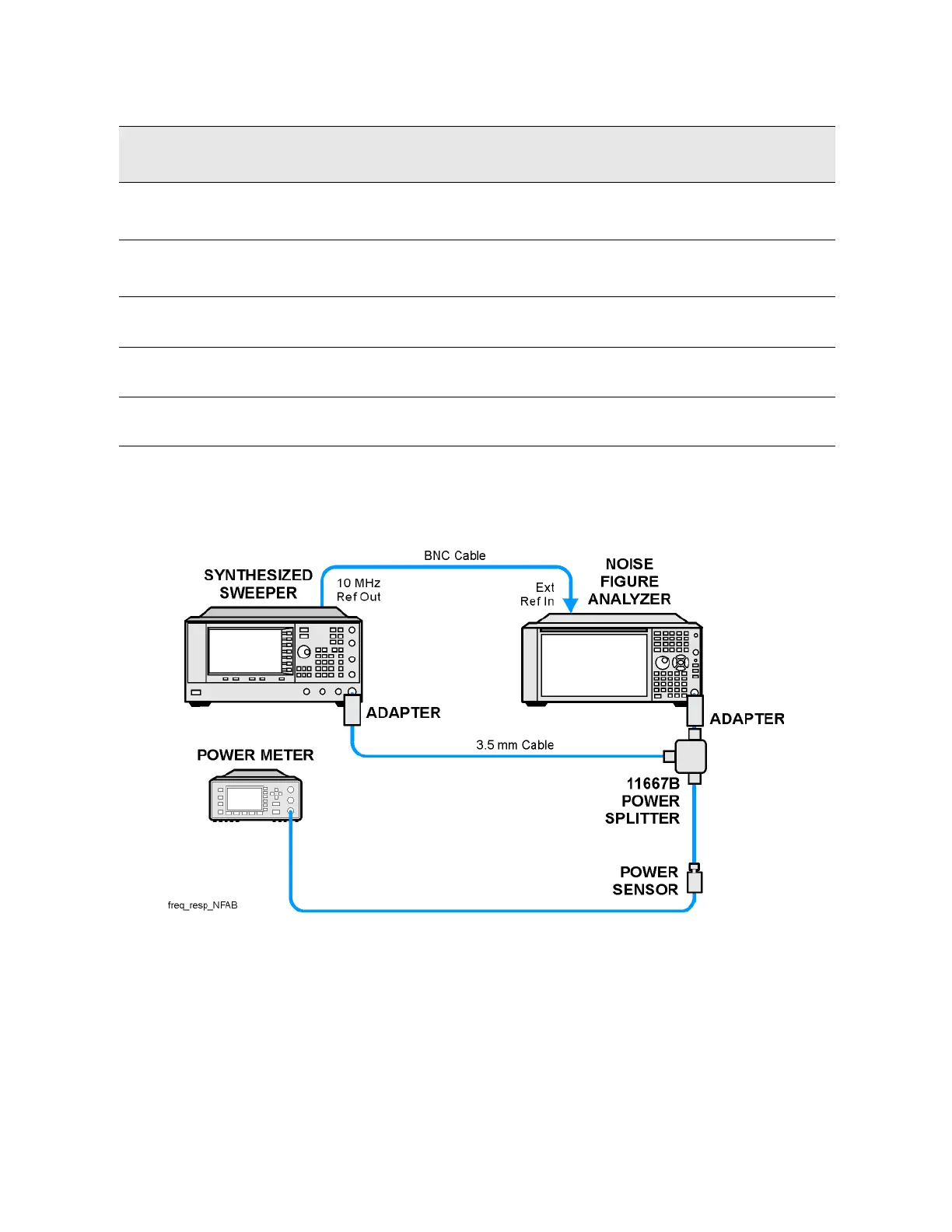

Figure 17-6 Frequency Response Test Setup
Procedure
1. Zero and calibrate the power meter and power sensor as described in the
power meter operation manual.
Power Sensor
a
Frequency Range: 50 MHz to 26.5 GHz
Amplitude Range: –65 dBm to –55 dBm
8485D
Power Sensor
b
Frequency Range: 50 MHz to 44 GHz
Amplitude Range: –65 dBm to –55 dBm
8487D
Power Splitter
a
Frequency Range: 50 MHz to 26.5 GHz
Tracking between ports: < 0.25 dB
11667B
Power Splitter
b
Frequency Range: 50 MHz to 44 GHz
Tracking between ports: < 0.4 dB
11667C
Synthesized Sweeper Frequency Range: 50 MHz to 26.5 GHz maximum
frequency of the EXA
PSG
a. For Options P03, P07, and P26
b. For Option P44
Item
Critical Specifications
(for this test)
Recommended
Keysight Model
