2 Front and Rear Panel Features

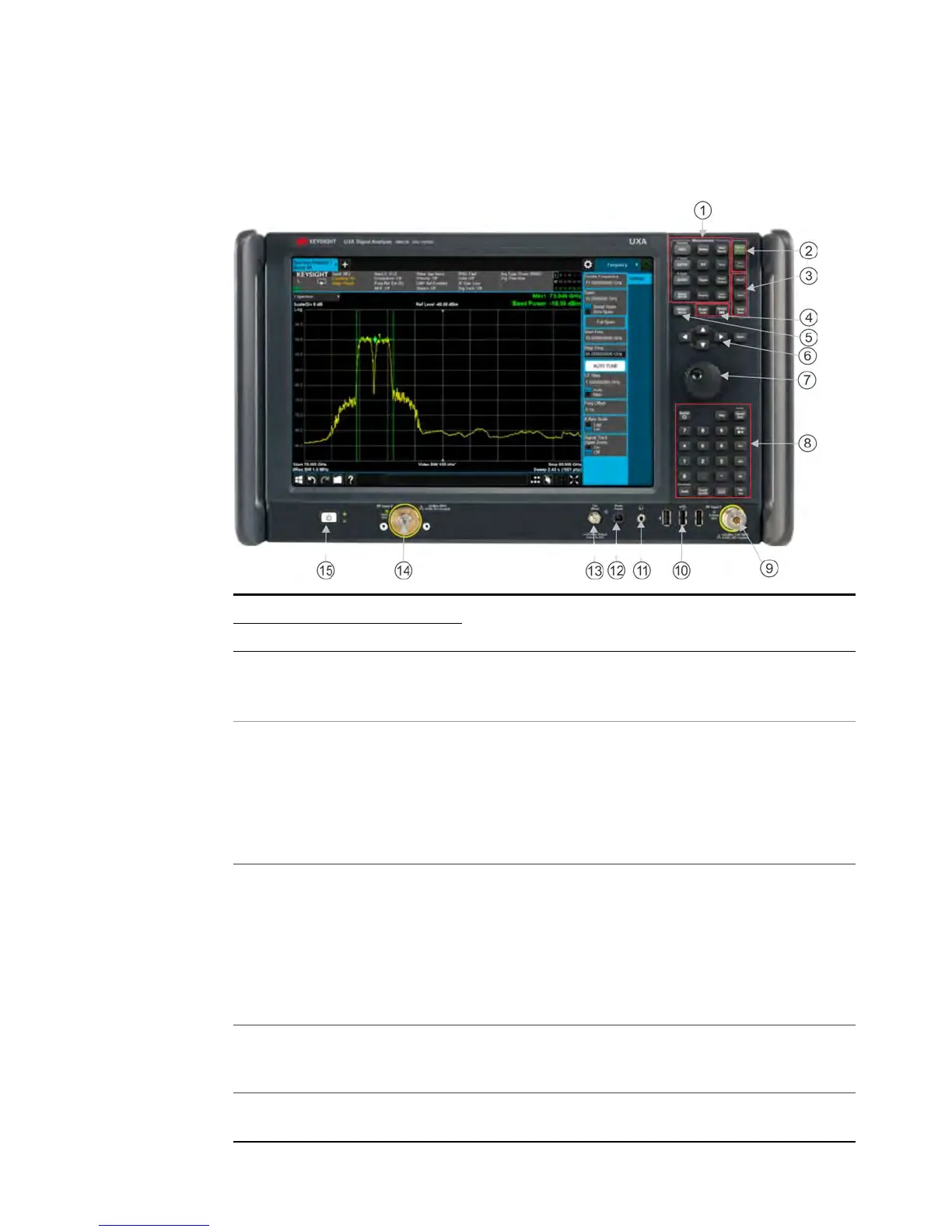

Front-Panel Features
Front-Panel Features
Item
Description
# Name
1 Measurement Keys These keys (in the shaded area) enable you to set the
parameters used for making measurements in the current Mode
and Measurement.
2 Preset Keys
Mode Preset - local to the current mode, global to all
measurements in the mode, affects most but not all parameters
in the mode, does not affect Input/Output or System variables
User Preset - local to the current mode, global to all
measurements in the mode, affects all parameters in the mode
as well as the Input/Output variables. Does not affect System
variables.
3 Save/Recall Keys
Save - enables you to save states, traces, screen images and
other items from the analyzer to files on the analyzer’s internal
storage, to removable devices, and to directories on the
network.
Recall - enables you to recall previously saved states, traces
and other items to the analyzer from files on the analyzer’s
internal storage, from removable devices, and from directories
on the network.
4 Sweep Keys
Single/Cont - toggles between single and continuous
measurement sweeps.
Restart - restarts the measurement.
5
Mode/Measurement
Key
This key enables you to select the desired Mode (measurement
application), Measurement, and/or View.
20 Getting Started and Troubleshooting Guide

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
