The N9041B, Signal Analyzer has two input connectors, the right side RF Input 1
connector is a 2.4 mm male.
The left side RF Input 2 connector is a special 1.0 mm male Keysight bulk head
connector that has 14 mm wrench flats. This test port connector has external
threads that accept the Keysight Test port adaptors, and has internal threads that
will accept Keysight standard 1.0 mm female adaptor, such as the 11920B.

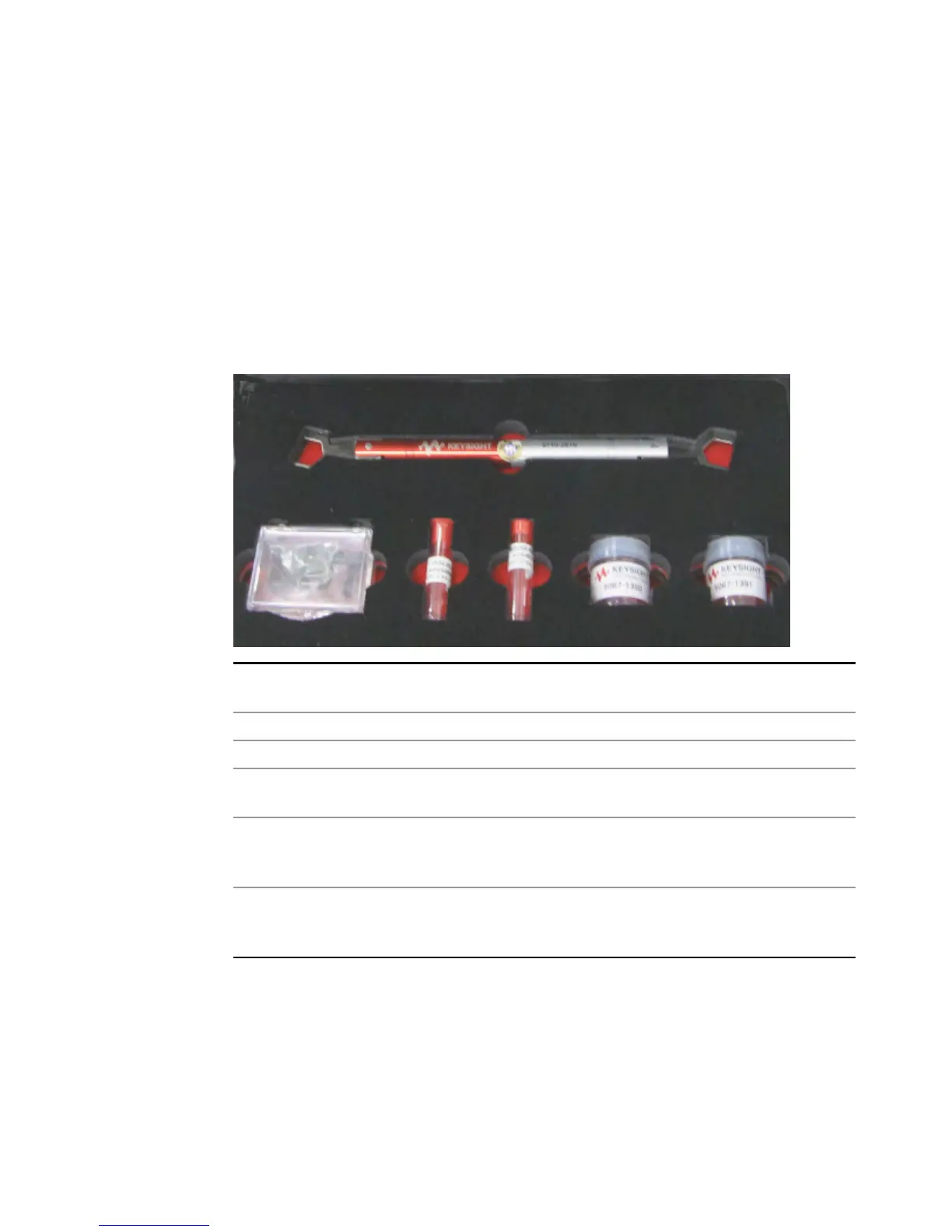

The Connector Kit contains:
Adaptor - 2.4 Female to K Female
Used on RF Input 1 as a connector saver to
connect 3.5 mm or sma devices or cables.
Adaptor 2.4 mm Female- 2.4 mm Female
Used on RF Input 1 as a connector saver
1 mm female test port to 1 mm female adaptor Used on RF Input 2 as a connector saver
1 mm female test port to 1.85 mm female adaptor Used on RF Input 2 as a connector saver and to
connect 1.85 mm devices or cables
Torque Wrench
Double ended wrench with 10 inch-pound (setting
for test port adaptors) and 4 inch-pound (setting
for Keysight standard 1 mm adaptors)
Connector Vise for RF Input 2
If the test port adaptors cannot be used, this vise
will help secure a Keysight standard 1 mm female
adaptor to the instrument RF Input 2 connector.
84 Getting Started and Troubleshooting Guide

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
