Quick Release Axle Adjustment
If the quick release axle bearing is set too long, there may be play in the wheel. If the quick release axle
bearing is set too short, the bearing won’t release and secure the wheel to the chair.
1. Hold the end of the quick release axle with an 11mm wrench and use a 19mm wrench to adjust the nut
on the quick release axle. Rotating the nut towards the push button will increase the length and rotating
the nut towards the bearing end will shorten the length.
2. Always test the quick release axle with no user in the chair first, to ensure the bearing clears and locks
the axle to the frame with little play.
NOTE: The image below might show a different model of chair, but the image is to show the bearing
clearing the axle.

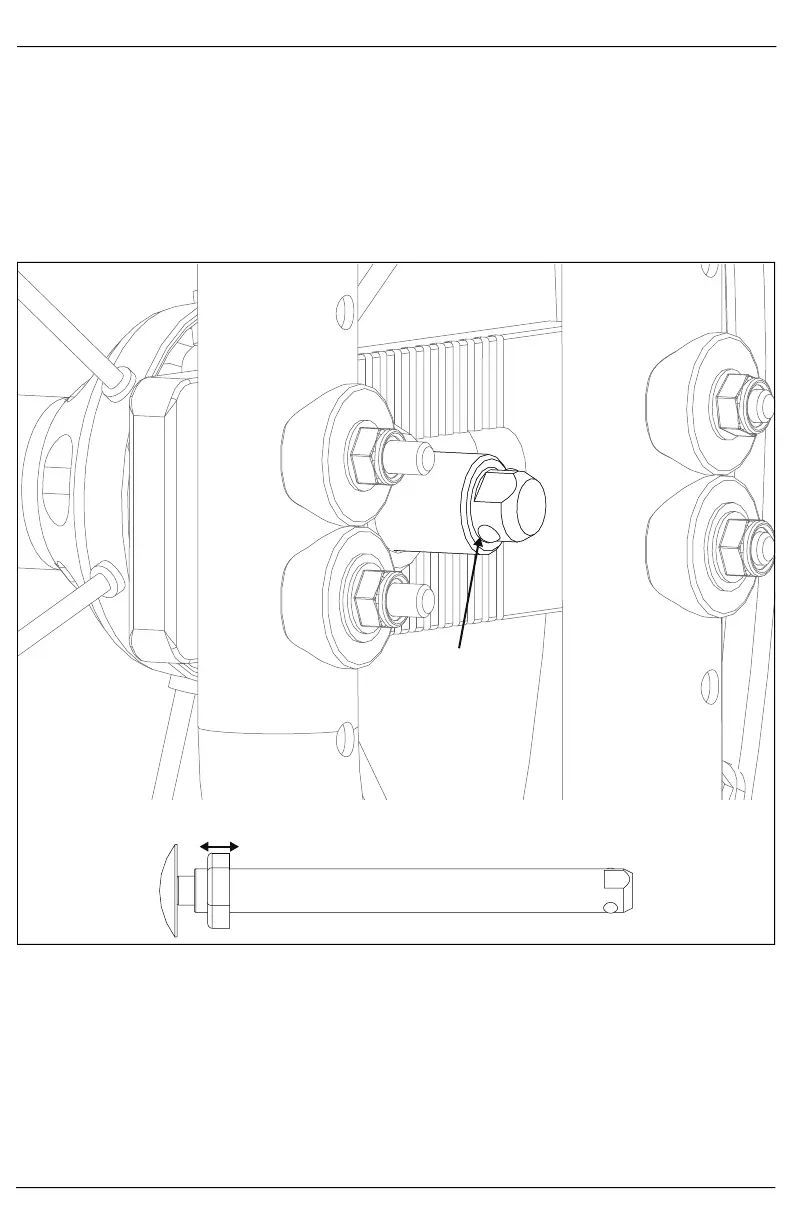

Bearing clears axle to
ensure engagement,
but not too much
space for unwanted
play.
